AXRC-GMLN10
I N S TA L L AT I O N I N S T R U C T I O N S
AxxessInterfaces.com Š COPYRIGHT 2022 METRA ELECTRONICS CORPORATION REV. 1/10/22 INSTAXRC-GMLN10
Product Info
ATTENTION: With the key out of the ignition,
disconnect the negative battery terminal
before installing this product. Ensure that all
installation connections are secure before
cycling the ignition to test this product.
NOTE: Refer to the instructions included with
the aftermarket radio.
OPTIONAL ACCESSORIES (sold separately)
Extension Harness: AXEXH-GM10
TABLE OF CONTENTS
Connections ............................................................2
Installation .............................................................3
Programming .........................................................3
APPLICATIONS

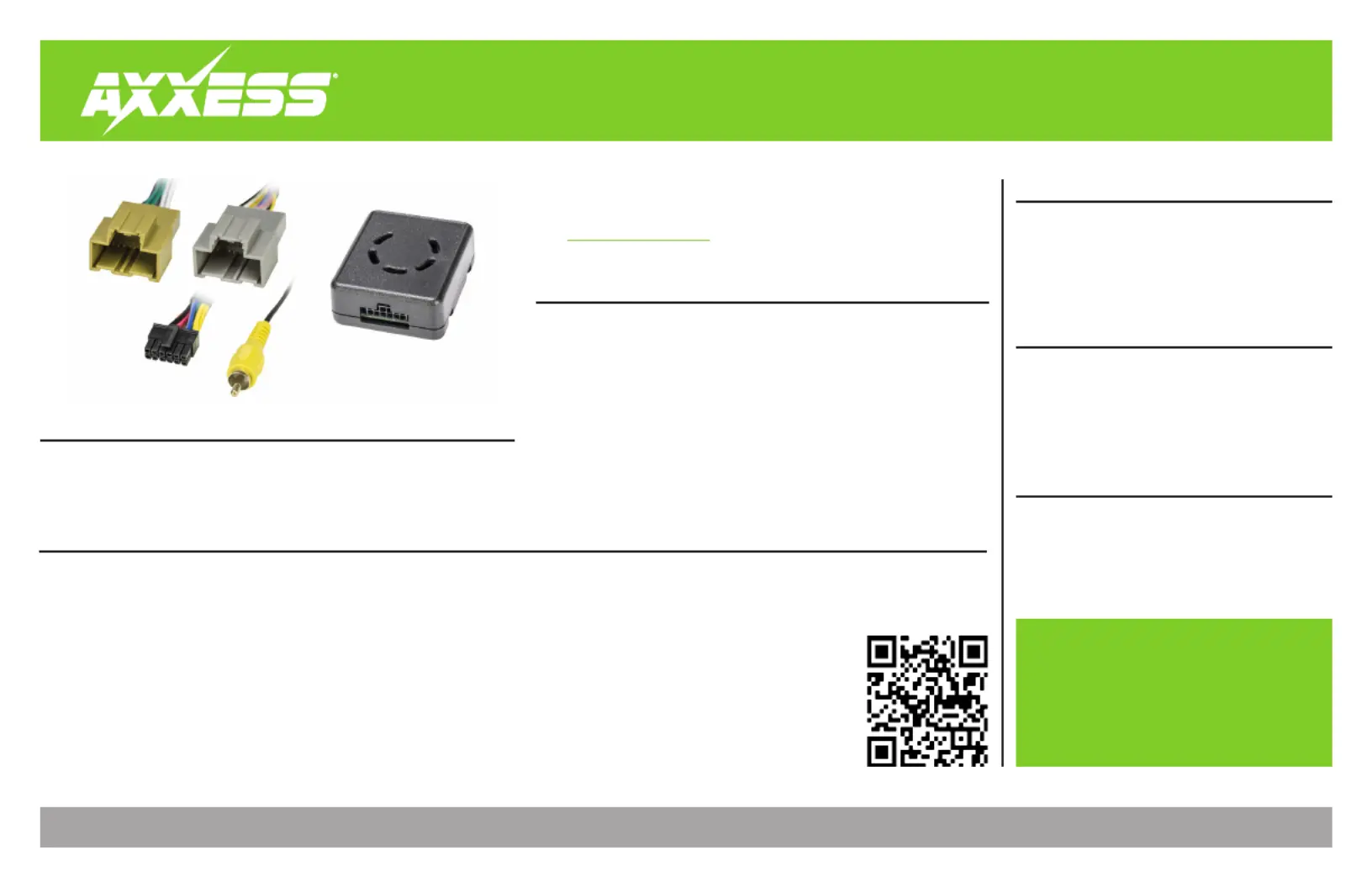

INTERFACE COMPONENTS
• AXRC-GMLN10 interface
• AXRC-GMLN10 harness
(1) (2) With RPO code I0B • With RPO code I0A
The , if applicable, are in the in the following locations: : Malibu IOA/IOB codes Service Parts Identication labels Rear Compartment Floor
Glovebox: Canyon/Colorado/Cruze/Equinox/Silverado/Sierra Note: RPO (QR codes) are in the driver door jam or on the label.“B Pillar” VIN
GM Data Interface 2016-2019
TOOLS & INSTALLATION ACCESSORIES REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink
• Tape • Wire cutter • Zip-ties
CHEVROLET
Colorado 2017-2019(1)
Cruze 2016-2019(2)
Cruze Hatchback 2016-2019(2)
Equinox 2018(1)
Malibu 2016-2019(2)
Silverado 2016-2018(1)
Silverado LD 2019(1)
Trax 2017-2020(2)
GMC
Acadia 2017-2019(1)
Canyon 2017-2019(1)
Sierra 2016-2018(1)
Sierra Limited 2019(1)
Visit AxxessInterfaces.com for vehicle specic applications.
INTERFACE FEATURES
• Provides accessory power (12-volt 10-amp)
• Retains R.A.P. (retained accessory power)
•
Provides illumination, parking brake, reverse, and speed sense outputs
• Used in non-amplified models, or when bypassing a factory amp
• Used in models without OnStar
• Retains all warning chimes
• High level speaker input
• Retains balance and fade
• Retains factory backup camera
• USB Micro-B updatable
2
CONNECTIONS
From the AXRC-GMLN10 harness to the aftermarket radio, connect the:
• wire to the ground wire.Black
• Yellow wire to the battery wire.
• wires (2) to the accessory wire.Red
• Blue/White wire to the amp turn on wire (excluding Bose). This wire must be connected to
hear sound from the factory amplier.
• Orange wire to the illumination wire (if applicable).
• White wire to the front left (+) speaker output.
• White/Black wire to the front left (-) speaker output.
• wire to the front right (+) speaker output.Gray
• Gray/Black wire to the front right (-) speaker output.
• Green wire to the rear left (+) speaker output.
• Green/Black wire to the rear left (-) speaker output.
• wire to the rear right (+) speaker output. Purple
• wire to the rear right (-) speaker output.Purple/Black
The following (3) wires are only for multimedia/navigation radios that require these wires.
• wire to the VSS/speed sense wire.Blue/Pink
• Green/Purple wire to the reverse wire.
• Light Green wire to the parking brake wire.
• Yellow RCA jack to the backup camera input. (If the vehicle is equipped with a factory backup
camera.)
3
REV. 1/10/22 INSTAXRC-GMLN10
INSTALLATION
PROGRAMMING
With the key in the off position:
1. Locate the factory radio harness in the vehicle and complete all necessary connections to the
aftermarket radio.
2. Connect the AXRC-GMLN10 harness AXRC-GMLN10 interface to the , and then to the factory
radio harness in the vehicle.
Note: For the Equinox and Malibu, use part number AXEXH-GM10 (sold separately) to extend the
wiring harness to the right of the glovebox where the radio brain is located.
Attention: If the interface loses power for any reason, the following steps will need to be
performed again.
1.
Turn the key (or push-to-start button) to the ignition position and wait until the radio comes on
.
If the radio does not come on within 60 seconds, turn the key to the off position, Note:
disconnect the interface, check all connections, reconnect the interface, and then try again.
2. Cycle the key off, then back on. If the driver’s door is closed, open and close the door.
3. Test all functions of the installation for proper operation, before reassembling the dash.
Note: The vehicle must be running for the factory camera to power on.
