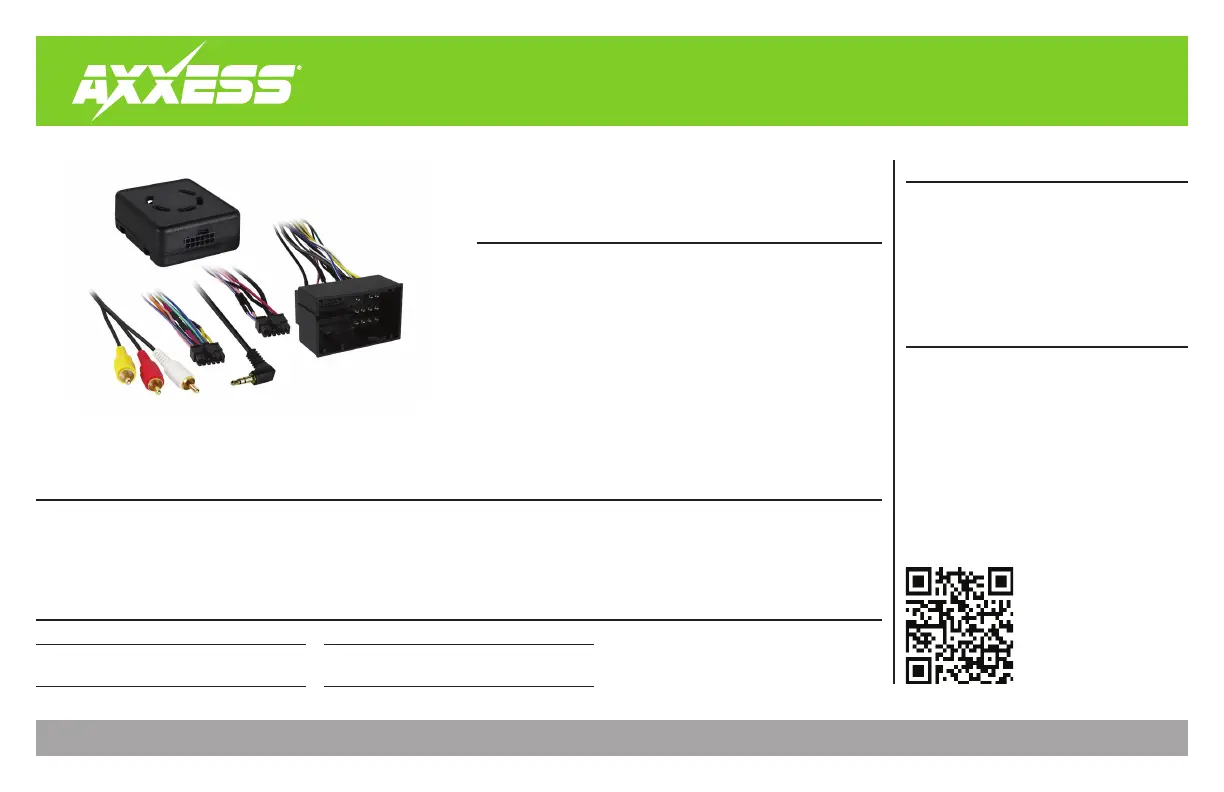

AXRC-CH1
I N S TA L L A T I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2019 METRA ELECTRONICS CORPORATION REV. 9/30/19 INSTAXRC-CH1
Product Info
INTERFACE FEATURES
INTERFACE COMPONENTS
TOOLS REQUIRED
• Wire cutter • Crimp tool • Solder gun • Tape
• Connectors (example: butt-connectors, bell
caps, etc.)
TABLE OF CONTENTS
Connections ............................................................2
Installation .............................................................3
Programming .........................................................3
Ram Data Interface 2013-2017
• Provides accessory power (12-volt 10-amp)
• Retains R.A.P. (retained accessory power)
• Used in non-amplified models, or when bypassing a factory amplifier
• Provides NAV outputs (parking brake, reverse, and speed sense)
• Pre-wired AXSWC harness (AXSWC sold separately)
•
Retains the factory backup camera (if displayed through the OE radio)
• Retains the 3.5mm AUX-IN jack
• Retains balance and fade
• Retains safety chimes
• Micro-B USB updatable
• AXRC-CH1 interface
• AXRC-CH1 harness
APPLICATIONS
RAM
1500/2500/3500
(small screen option) 2013-2017
Chassis Cab 3500/4500/5500
(small screen option) 2013-2017
2
CONNECTIONS
From the AXRC-CH1 harness to the aftermarket radio:
• Connect the wire to the ground wire.Black
• Connect the Yellow wire to the battery wire.
• Connect the wire to the accessory wire.Red
• If the aftermarket radio has an illumination wire, connect the wire to it.Orange
• Connect the wire to the right front positive speaker output.Gray
• Connect the Gray/Black wire to the right front negative speaker output.
• Connect the wire to the left front positive speaker output.White
• Connect the wire to the left front negative speaker output.White/Black
• Connect the wire to the left rear positive speaker output.Green
• Connect the wire to the left rear negative speaker output.Green/Black
• Connect the wire to the right rear positive speaker output.Purple
• Connect the wire to the right rear negative speaker output.Purple/Black
The following (3) wires are only for multimedia/navigation radios that require these wires.
• Connect the wire to the VSS/speed sense wire.Blue/Pink
• Connect the wire to the reverse wire.Green/Purple
• Connect the wire to the parking brake wire.Light Green
• Connect the Yellow RCA jack the backup camera input.
• If retaining the factory AUX-IN jack, connect the & RCA jacks to the AUX input.Red White
• Tape off and disregard the Blue/White wire, it will not be used in this application.
12-pin pre-wired AXSWC harness:
• This harness is to be used along with the optional AXSWC (not included) to retain steering
wheel audio controls. If the AXSWC is not being used, disregard this harness. If it will be
used, please refer to the AXSWC instructions for radio connections and programming.
Note: Disregard the harness that comes with the AXSWC.
• Connect the wire to the accessory wire.Red
3
REV. 9/30/2019 INSTAXRC-CH1
INSTALLATION PROGRAMMING
With the key in the off position:
• Connect the AXRC-CH1 harness into the interface, and then to the harness in the vehicle.
If using the AXSWC, connect it after you initialize and test the AXRC-CH1, with the key Note:
in the off position.
Attention!
If the interface loses power for any reason, the following steps will need to be
performed again. Also, if installing an AXSWC connect it after you initialize and test the interface/
radio, with the key in the off position.
• Turn the key (or push-to-start button) to the ignition position and wait until the radio comes on
.
If the radio does not come on within 60 seconds, turn the key to the off position, Note:
disconnect the interface, check all connections, reconnect the interface, and then try again.
• Turn the key to the off position, and then to the accessory position. Test all functions of the
installation for proper operation, before reassembling the dash.
