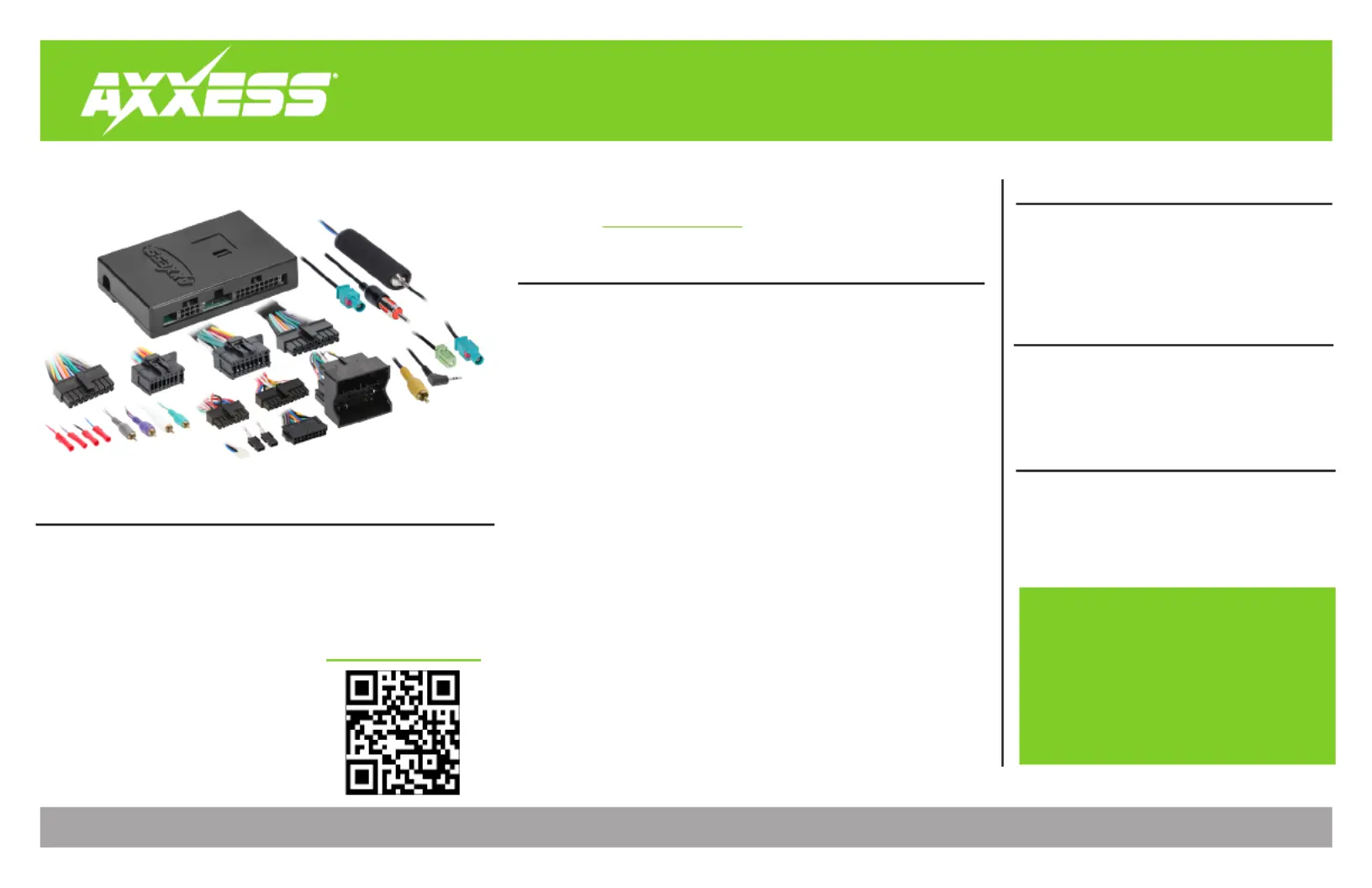

AXPIOB-VW2

I N S T A L L A T I O N I N S T R U C T I O N S

TABLE OF CONTENTS

Interface Installation................................................2

Radio Operation....................................................3-4

Applicable Radio Models.........................................5

Volkswagen Pioneer Basic Package 2015-UP

WIRING & ANTENNA CONNECTIONS

Wiring Harness: Included with Kit

Antenna Adapter: Included with Kit

GPS Antenna Adapter: Included with Kit

• Crimping tool and connectors, or solder gun,

solder, and heat shrink • Tape • Wire cutter

• Zip-ties

TOOLS REQUIRED

• Designed for non-amplified vehicles

• Provides accessory power (12-volt 10-amp)

• Retains R.A.P. (retained accessory power)

• Provides NAV outputs (parking brake, reverse, speed sense)

• Allows visual of HVAC and gauges on Pioneer screen

• Allows adjustment of HVAC functions through Pioneer screen

• Retains audio controls on the steering wheel

• Allows for auto stop/start override (if equipped)

• Works in both Single and Dual-zone vehicles

• Micro-B USB updatable

•

Allows the retention and adjustment of the OE Personalization

Settings

• Plug-n-Play installation

• Includes radio antenna adapter & antenna adapter for GPS

FEATURES

• LD-9006-PIO

• Radio interface • PR04AVIC-PIO and

PR04-PIORCA Harness

• 40-EU56 • 40-GPS-PIO

KIT COMPONENTS

www.MetraOnline.com

MetraOnline.com may be used to assist with

dash assembly instructions. Simply enter your

Year, Make, Model vehicle into the vehicle fit

guide and look for the Dash Kit Installation

Instructions.

ATTENTION: With the key out of the ignition,

disconnect the negative battery terminal before

installing this product. Ensure that all installation

connections, especially the air bag indicator lights, are

plugged in before reconnecting the battery or cycling

the ignition to test this product.

NOTE: Refer also to the instructions included with the

aftermarket accessory before installing this device.

Visit AxxessInterfaces.com for more detailed informaon

about the product and up-to-date vehicle specic applicaons

INTERFACE INSTALLATION

REV. 3/15/24 INSTAXPIOB-VW2

RADIO OPERATION

Car Features – The source for accessing all vehicle information and options.Vehicle Selection – Allows you to select the vehicle the radio is being installed in.

• Vehicle type must be selected to activate menu & HVAC functions, as well as steering wheel

controls. Press Make to change the vehicle type. Then press Confirm. The radio will then reset

and lock in the selected vehicle.
