AXPIOB-CH8
I N S T A L L A T I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2024 METRA ELECTRONICS CORPORATION REV. 3/15/24 INSTAXPIOB-CH8
TABLE OF CONTENTS
Interface Installation................................................2
TPMS Visual...............................................................3
Radio Operation....................................................4-5
Applicable Radio Models.........................................6
Chrysler Pioneer Basic Package 2019-UP
Note:
This kit will function in both Single-Zone and Dual-Zone vehicles:
• All HVAC functions will be retained.
• Single-Zone vehicles will only get status feedback of the HVAC functions,
while Dual-Zone vehicles can also be controlled through the radio screen.
• Compass is only retained on vehicles equipped with the UConnect 3
(5" touchscreen).
• The External Speaker is only required in vehicles with safety group features.
WIRING & ANTENNA CONNECTIONS
Wiring Harness: Included with Kit
Antenna Adapter: Included with Kit
GPS Antenna Adapter: Included with Kit
• Crimping tool and connectors, or solder gun,
solder, and heat shrink • Tape • Wire cutter
• Zip-ties
TOOLS REQUIRED
• Designed for select Pioneer receivers
• Provides accessory power (12-volt 10-amp)
• Retains R.A.P. (retained accessory power)
• Provides NAV outputs (parking brake, reverse, speed sense)
• Allows visual of HVAC and gauges on Pioneer screen
• Allows adjustment of HVAC functions through Pioneer screen
• Retains audio controls on the steering wheel
• Allows for auto stop/start override (if equipped)
• Works in both Single and Dual-zone vehicles
• Retains safety chimes
• Designed for amplified or non-amplified vehicles
• Micro-B USB updatable
•
Allows the retention and adjustment of the OE Personalization Settings
• Plug-n-Play installation
• Includes radio antenna adapter & antenna adapter for GPS
FEATURES
• LD-CH8-PIO • LD-CHRYHAZ2T • LD-CAN3T
• Radio
interface • PR04AVIC-PIO and PR04-PIORCA Harness
• LD-AX-SPK • AD-EU5 • 40-GPS-PIO

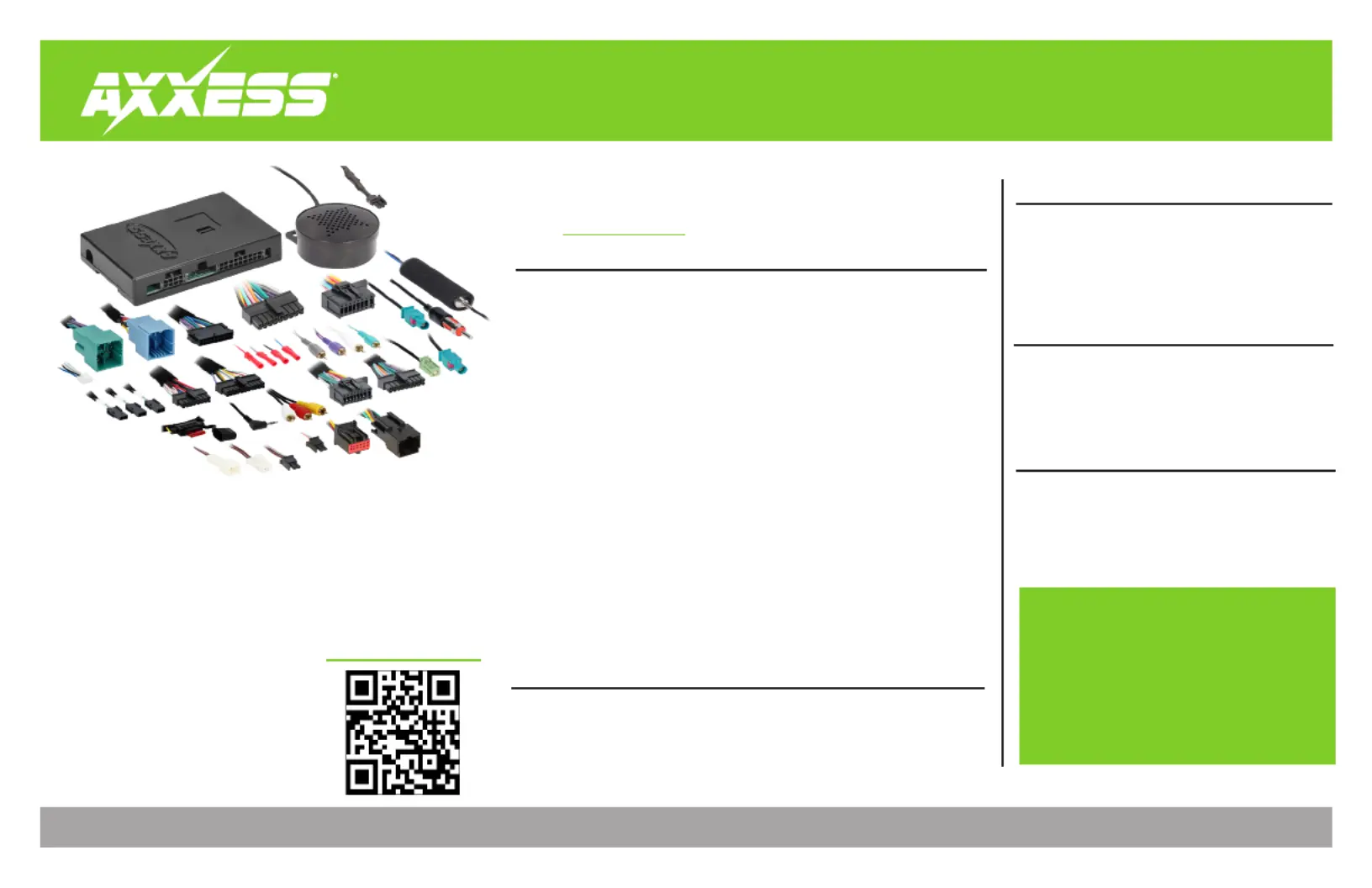

KIT COMPONENTS
www.MetraOnline.com
MetraOnline.com may be used to assist with
dash assembly instructions. Simply enter your
Year, Make, Model vehicle into the vehicle fit
guide and look for the Dash Kit Installation
Instructions.
ATTENTION: With the key out of the ignition,
disconnect the negative battery terminal before
installing this product. Ensure that all installation
connections, especially the air bag indicator lights, are
plugged in before reconnecting the battery or cycling
the ignition to test this product.
NOTE: Refer also to the instructions included with the
aftermarket accessory before installing this device.
Visit for more detailed information about the product AxxessInterfaces.com
and up-to-date vehicle specific applications.
**

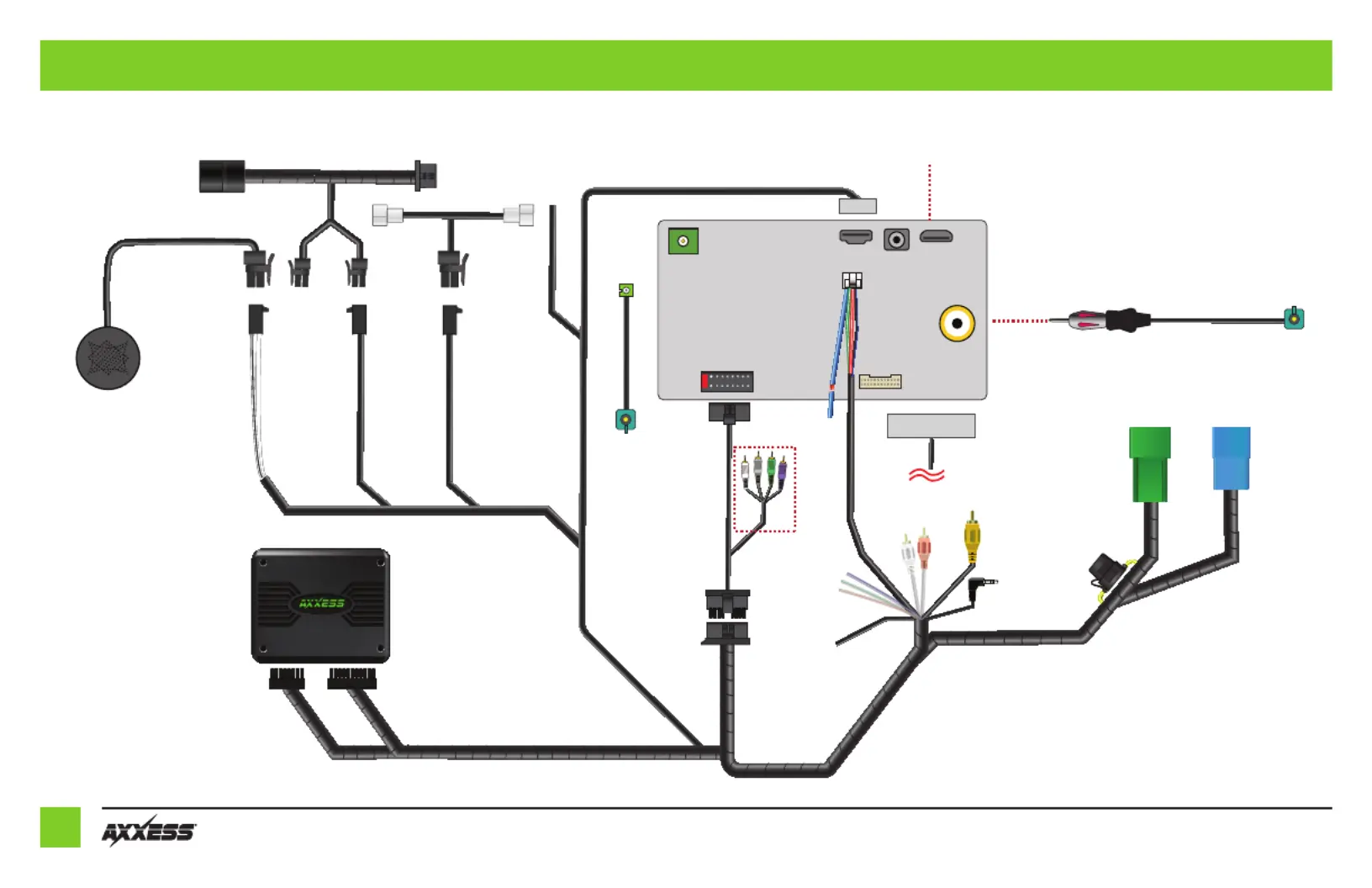

INTERFACE INSTALLATION
2
3.5MM AUX
TBA
CAMERA
Important
:
Install the provided speaker
in the dash prior to assembling the
radio components
.
Note: Make sure this is mounted in a
location suitable for the driver to hea r.
(Audio level for the speaker can be
changed via the radio, once installed.)
Note: Not used in all applications see chart for more info.
FUSE
EXTERNAL SPEAKER
LD-AX-SPK
Pioneer Harness
LD-CH8-PIO
CARSIDE CONNECTORS (CONNECT TO EXTENSION)
MICRO-HDMI
ADAPTER NEEDED
EXT SPKR
“TBA” WIRES
AD-EU5
(CONNECT TO VEHICLE)
AXXESS INTERFACE
AUX (INCL. W/RADIO)
GPS 4-PIN MIC HDMI
ANT
18P (M)
18P (F)
16P 22P
40-GPS-PIO
10
LD-CH8-PIO
CAN2-B
to LD-CHRYHAZ2T
CAN2-A
PR04AVIC-PIO
(for non-amplified vehicles)
PR04-PIORCA
(for amplified vehicles)
NOT USED
CAN 3
CAN 2
VID GROUND
STATUS
Important! Verify the backup camera
installation, HVAC status & control, Steering
wheel audio controls and External Speaker
output prior to completing dash assembly.
NOTE: LD-CHRYHAZ2T
connected at the hazard
area. Refer to chart to
determine which 2 pin
to use.
NOTE: LD-CAN-3T refer to
chart to determine which
2 pin to use.
LD-CAN-3T
3
REV. 3/15/24 INSTAXPIOB-CH8

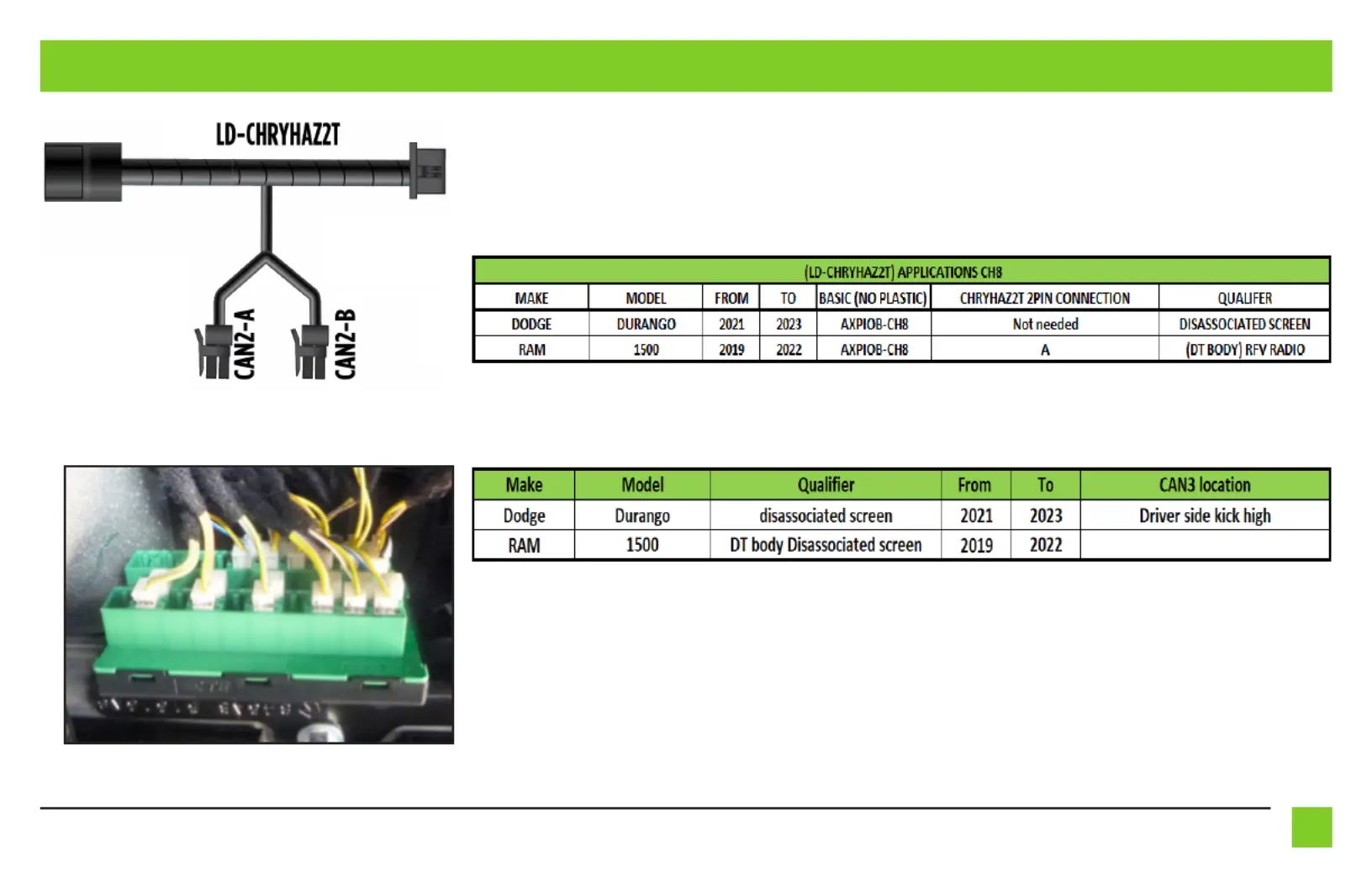

TPMS VISUAL ON PIONEER / LD-CHRYHAZ2T CONNECTION
If equipped with TPMS, and you wish to add the visual to the Pioneer Radio screen:
STAR Connector port
