AXPIO-STY1
I N S TA L L A T I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2024 METRA ELECTRONICS CORPORATION REV. 7/30/24 INSTAXPIO-STY1
TABLE OF CONTENTS
Speaker Installation...............................................2
Dash Disassembly 3-5 ..............................................
Connections 6 ............................................................
Kit Assembly 7 ..........................................................
Radio Operations 8-9 ...............................................
Chevrolet Suburban/Tahoe 2015-2020
GMC Yukon 2015-2020
KIT FEATURES
•
Designed for Pioneer DMH-W4600NEX/W4660NEX or DMH-WC5700NEX receivers
• Allows for the retention and adjustment of the factory personalization menu
through the Pioneer radio
• Provides a visual view of HVAC and gauges on the Pioneer screen (cannot be
adjusted via the screen)
(cont. on page 2)

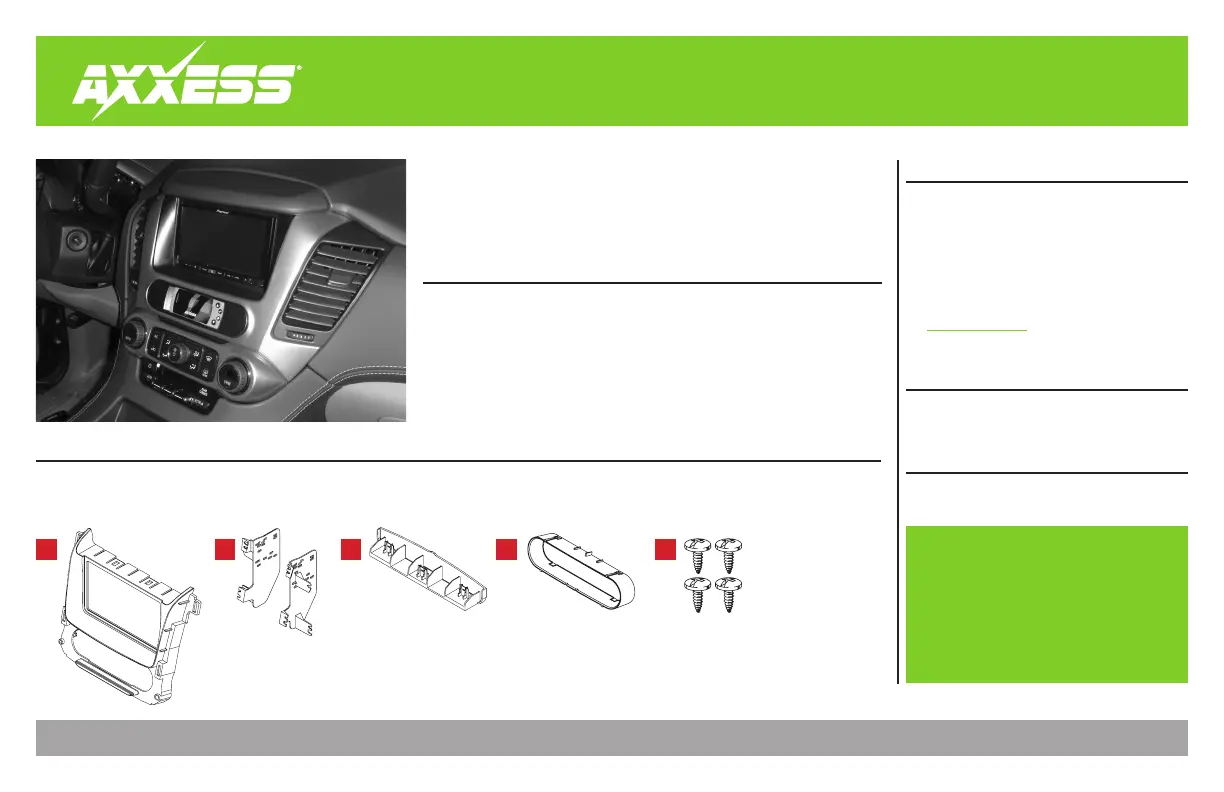

KIT COMPONENTS
A) Radio housing trim panel • B) Brackets • C) Trim panel bracket • D) Pocket • E) #8 x 3/8" Truss-head Phillips screws (4)
Not Shown: Radio Interface, LD-GMLAN09-PIO, LD-BACKCAM-MOST, LD-GMSWC, AD-EU5, 40-GPS-PIO,
PR04AVIC-PIO / PRO4-PIORCA, LD-AX-SPK, AXUSB-GM6
Visit for more detailed information about AxxessInterfaces.com
the product and up-to-date vehicle specific applications.
WIRING & ANTENNA CONNECTIONS (sold separately)
•
RGB Extension Cable: Pioneer part # CD-RGB150A
(not sold by Metra)
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• 9/32" socket wrench
A B DC E
ATTENTION: With the key out of the ignition,
disconnect the negative battery terminal before
installing this product. Ensure that all installation
connections, especially the air bag indicator lights, are
plugged in before reconnecting the battery or cycling
the ignition to test this product.
NOTE: Refer also to the instructions included with the
aftermarket accessory before installing this device.
2
KIT FEATURES (cont. from cover)
• Complete Plug-n-Play installation
• Includes dash kit with Axxess interface and vehicle-specific T-harness
• Includes a 3' USB/AUX/HDMI replacement cable with panel
• Includes radio antenna adaptor for GPS
• Provides accessory power (12-volt 10-amp)
• Provides NAV outputs (parking brake, reverse, speed sense)
• Retains audio controls on the steering wheel
• Works in both single and dual-zone vehicles
• Retains safety chimes through an included off-board speaker
• USB Micro “B” USB updatable
• Dash kit is painted scratch-resistant matte black to match the factory finish
• For non-amplified vehicles only
KIT FEATURES
(CONT.)
Install the provided speaker in the dash prior to assembling the radio components.
Note: Make sure this is mounted in a location suitable for the driver to hear. (Audio level for the
speaker can be changed via the radio, once installed.)
SPEAKER INSTALLATION
3
REV. 7/30/24 INSTAXPIO-STY1
DASH DISASSEMBLY
(Figure B)
1. Unsnap and remove the panel above the
radio screen. (Figure A)
2. Unsnap and remove the trim panel
located at the driver’s side edge of dash.
(Figure B)
3. Remove (1) screw from left side of panel
below steering column. (Figure C)
Note: The panel does not need to be
fully removed.
4. Using the panel removal tool, carefully
unclip and remove the center console
cover. (Figure D)
5. Unsnap and remove the panel above the
glove box. (Figure E)
Continued on next page
(Figure D)
(Figure C) (Figure A)
(Figure E)
