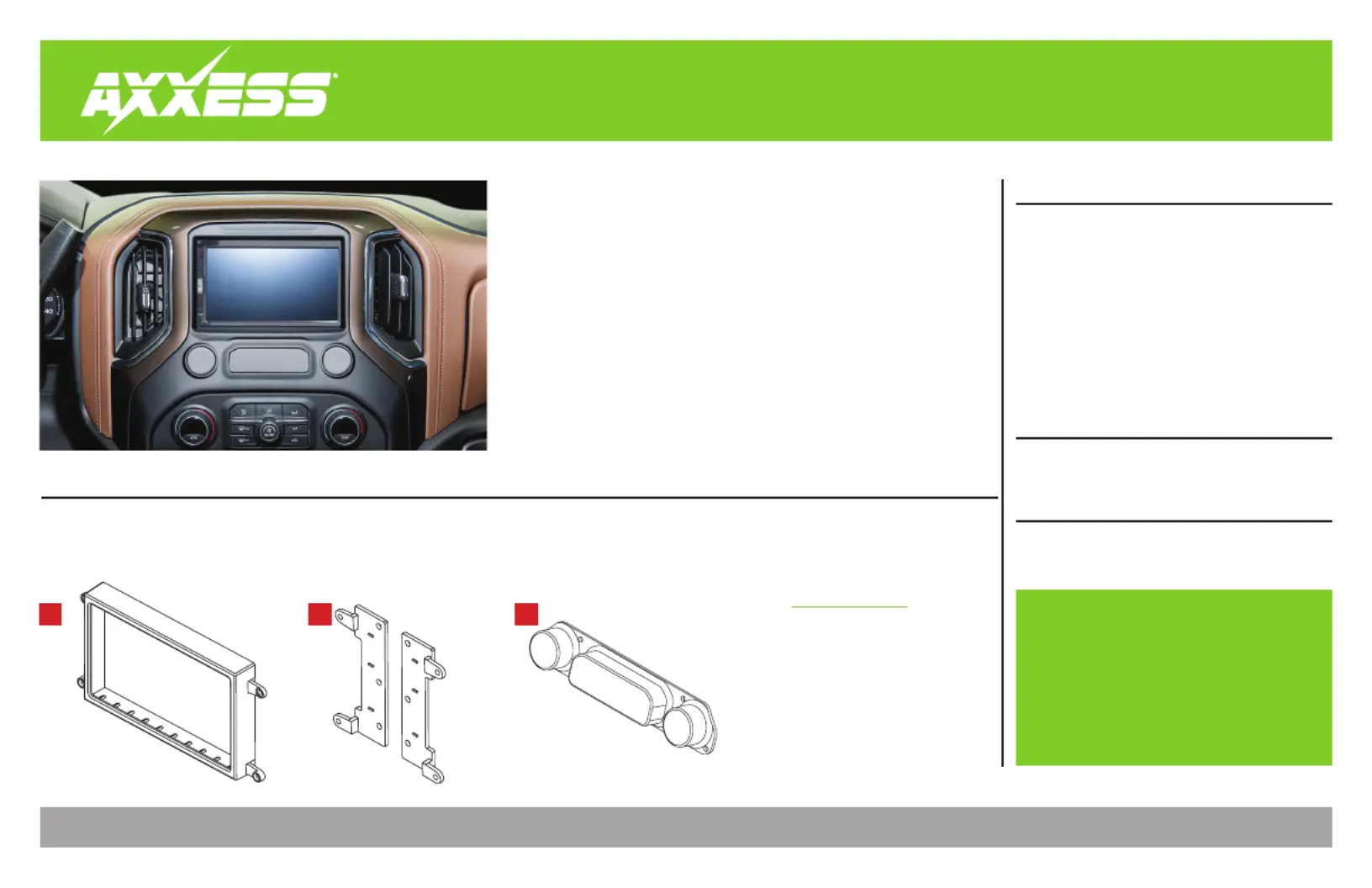

AXPIO-SIL2
I N S TA L L AT I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2024 METRA ELECTRONICS CORPORATION REV. 7/30/24 INSTAXPIO-SIL2
TABLE OF CONTENTS
Kit Features 2 ............................................................
Speaker Installation...............................................2
Dash Disassembly 3-4 ..............................................
Connections 5 ............................................................
Radio Tuner Location 6 .............................................
Kit Preparation 7 .......................................................
Kit Assembly 8 ..........................................................
Radio Operations 9-10 ..............................................
Chevrolet Silverado 1500 (excluding WT Trim) 2019
Chevrolet Silverado 1500/2500/3500
Visit for more AxxessInterfaces.com
detailed information
about the product and
up-to-date vehicle specific applications.
WIRING & ANTENNA CONNECTIONS (sold separately)
• RGB Extension Cable: Pioneer part # CD-RGB150A
(not sold by Metra)
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• 9/32" socket wrench • T-15 Torx screwdriver
A B C
(excluding WT Trim)* 2019-2020
*Models with a 2 knob 8-inch screen radio, RPO code IOS or IOT.
The RPO code can be found in the Label located on the inside Vehicle Certification
of the driver’s door opening.
A mobile device with a QR scanner must be used to decipher the code.
KIT COMPONENTS
•A) Display screen housing • B) Display screen brackets • C) Blank-out panel
Not Shown: Radio Interface, LD-GM30-PIO, LD-GM31-PIO, AXEXH-GM30, AXEXH-GM31, AD-EU5, 40-GPS-PIO, PR04AVIC-PIO / PRO4-PIORCA, LD-AX-SPK
GMC Sierra 1500* 2019
GMC Sierra 1500/2500/3500 2019-2020
ATTENTION: With the key out of the ignition,
disconnect the negative battery terminal before
installing this product. Ensure that all installation
connections, especially the air bag indicator lights, are
plugged in before reconnecting the battery or cycling
the ignition to test this product.
NOTE: Refer also to the instructions included with the
aftermarket accessory before installing this device.
2
•
Designed for Pioneer DMH-WC5700NEX receivers
• Allows for the retention and adjustment of the factory personalization
menu through the Pioneer radio
• Provides a visual view of HVAC and gauges on the Pioneer screen (cannot
be adjusted via the screen)
• Complete Plug-n-Play installation
• Includes dash kit with Axxess interface and vehicle-specific T-harness
• Includes radio antenna adaptor for GPS
• Provides accessory power (12-volt 10-amp)
• Provides NAV outputs (parking brake, reverse, speed sense)
• Retains audio controls on the steering wheel
• Works in both single and dual-zone vehicles
• Retains safety chimes through an included off-board speaker
• USB Micro “B” USB updatable
• Dash kit is painted scratch-resistant matte black to match the factory finish
• For non-amplified vehicles only
KIT FEATURES
KIT FEATURES)
3
REV. 7/30/24 INSTAXPIO-SIL2

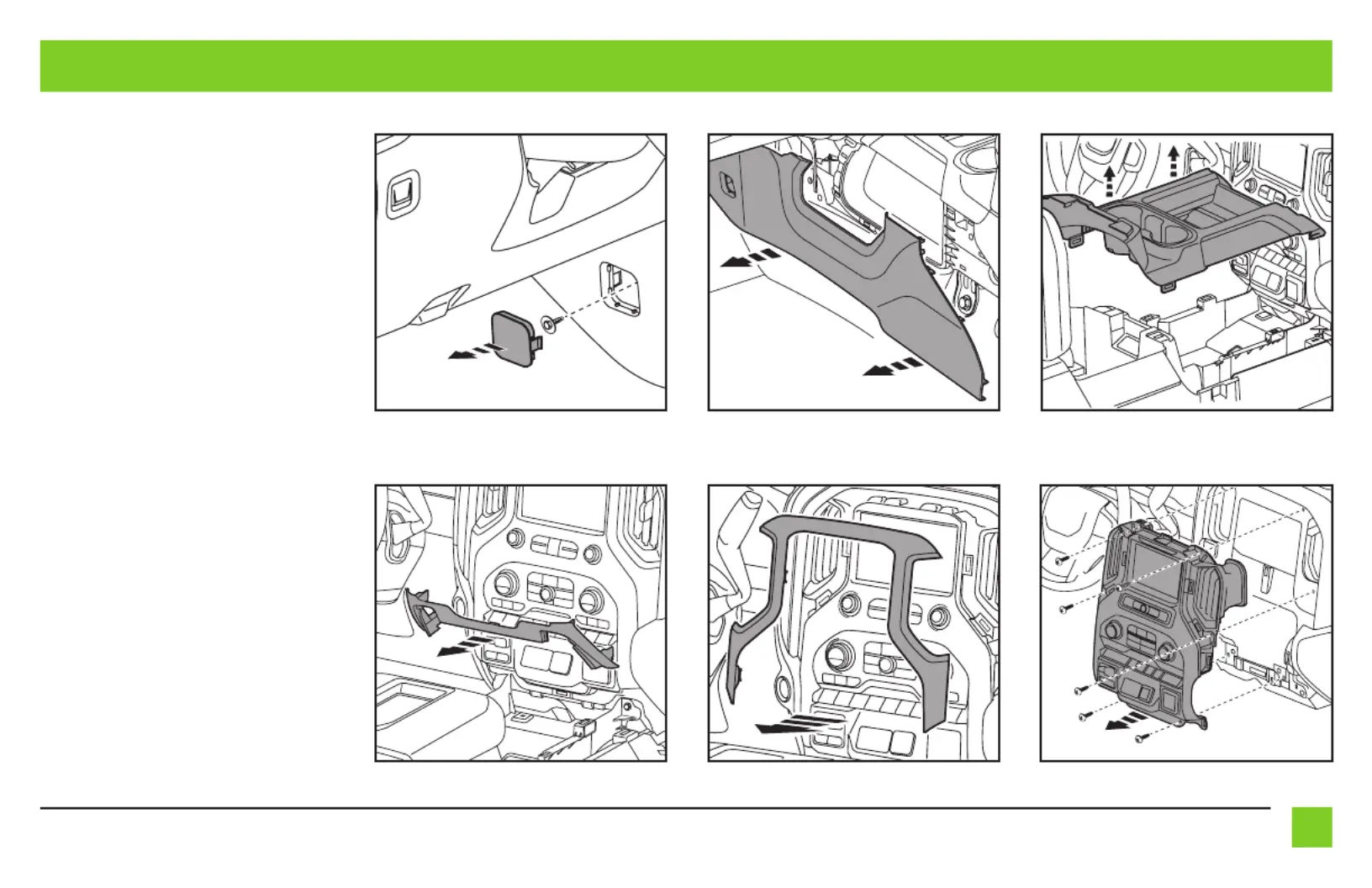

For models with a full center console:
1.
Pop out the screw cover from the driver’s
side of the center console, then remove
(1) 9/32" screw exposed. (Figure A)
2. Using the panel removal tool and
starting from the rear, unclip and
remove the center console trim panel
from each side of the center console.
(Figure B)
3. Starting from the rear, unsnap and
remove the cup holder panel. (Figure C)
4. Unclip and remove the lower trim panel.
(Figure D)
5. Using the panel removal tool, unclip and
remove the trim panel surrounding the
radio display. (Figure E)
6. Remove (6) 9/32" screws securing the
radio/climate control panel, then unplug
and remove the radio. (Figure F)
Continue to Kit Preparation
(Figure B) (Figure C)(Figure A)
(Figure E) (Figure F)(Figure D)
DASH DISASSEMBLY
