Seite 1/24

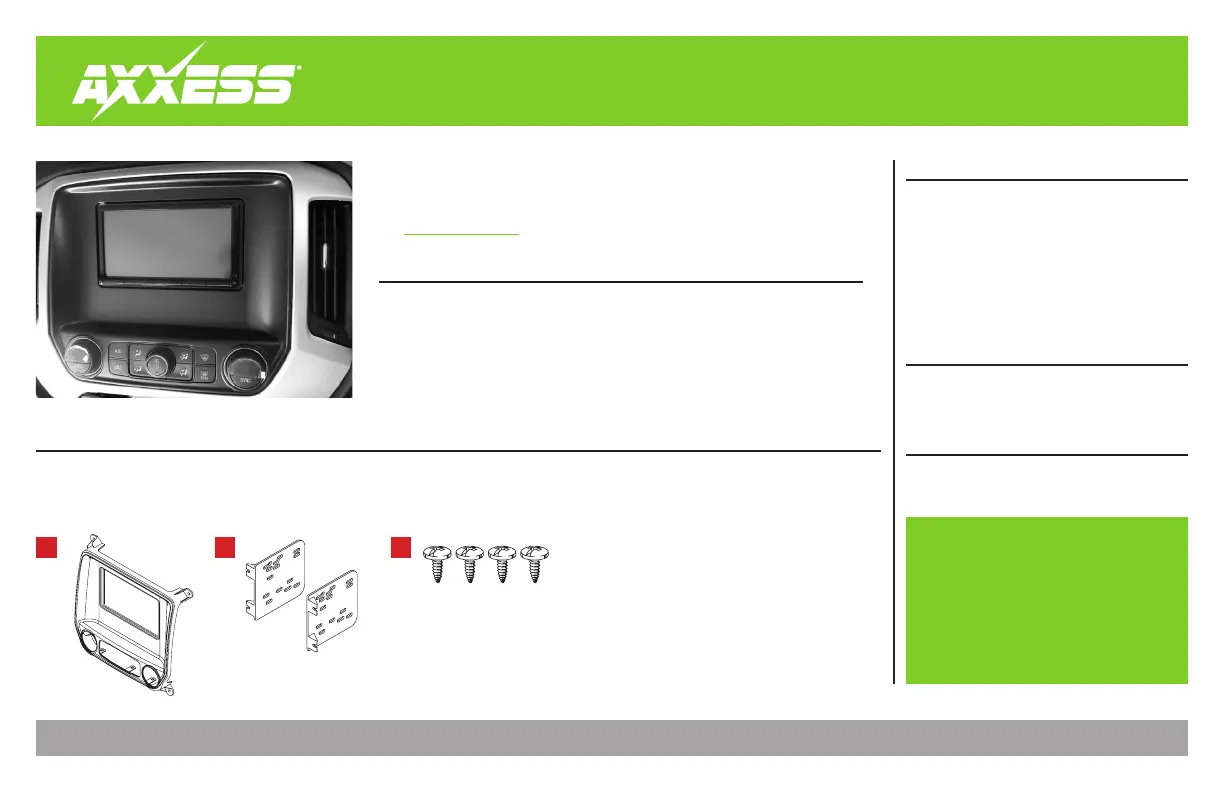

AXPIO-SIL1

I N S TA L L AT I O N I N S T R U C T I O N S

ATTENTION: With the key out of the ignition,

disconnect the negative battery terminal

before installing this product. Ensure that all

installation connections, especially the air

bag indicator lights, are plugged in before

reconnecting the battery or cycling the ignition

to test this product.

NOTE: Refer also to the instructions included

with the aftermarket radio.

TABLE OF CONTENTS

Speaker Installation...............................................2

Dash Disassembly 2-3 ..............................................

Kit Preparation 4 .......................................................

Connections 5-6 ........................................................

Kit Assembly 7 ..........................................................

Radio Operations 8-9 ...............................................

Chevrolet GMC Silverado/ Sierra 2014-2019 (excluding 2019 WT Trim)

with RPO (I05/I06/I0B)

KIT FEATURES)

• Designed for Pioneer DMH-W4600NEX/W4660NEX or DMH-WC5700NEX receivers

• Allows for the retention and adjustment of the factory personalization menu

through the Pioneer radio

• Provides a visual view of HVAC and gauges on the Pioneer screen (cannot be

adjusted via the screen) (cont. on page 2)

KIT COMPONENTS

• A) Radio trim panel • B) Radio brackets • C) Phillips screws 9/32" (4)

Not Shown: Radio Interface, LD-GMLAN09-PIO, LD-GMLAN10-PIO, AXEXH-GM09, AXEXH-GM10, LD-BACKCAM-MOST, LD-GMSWC, AD-EU5, 40-GPS-PIO, PR04AVIC-PIO /

PRO4-PIORCA, LD-AX-SPK, AXUSB-GM6

Visit for more detailed information about the product and up-to-date AxxessInterfaces.com

vehicle specific applications.

WIRING & ANTENNA CONNECTIONS (sold separately)

•

RGB Extension Cable: Pioneer part # CD-RGB150A

(not sold by Metra)

TOOLS REQUIRED

• Panel removal tool • Phillips screwdriver

• 9/32" socket wrench

A B C

KIT FEATURES (cont. from cover)

• Complete Plug-n-Play installation

• Includes dash kit with Axxess interface and

vehicle-specific T-harness

• Includes a 3' USB/AUX/HDMI replacement

cable with panel

• Includes radio antenna adaptor for GPS

• Provides accessory power (12-volt 10-amp)

• Provides NAV outputs (parking brake,

reverse, speed sense)

• Retains audio controls on the steering

wheel

• Works in both single and dual-zone vehicles

• Retains safety chimes through an included

off-board speaker

• USB Micro “B” USB updatable

• Dash kit is painted scratch-resistant matte

black to match the factory finish

• For non-amplified vehicles only

KIT FEATURES

(CONT.)

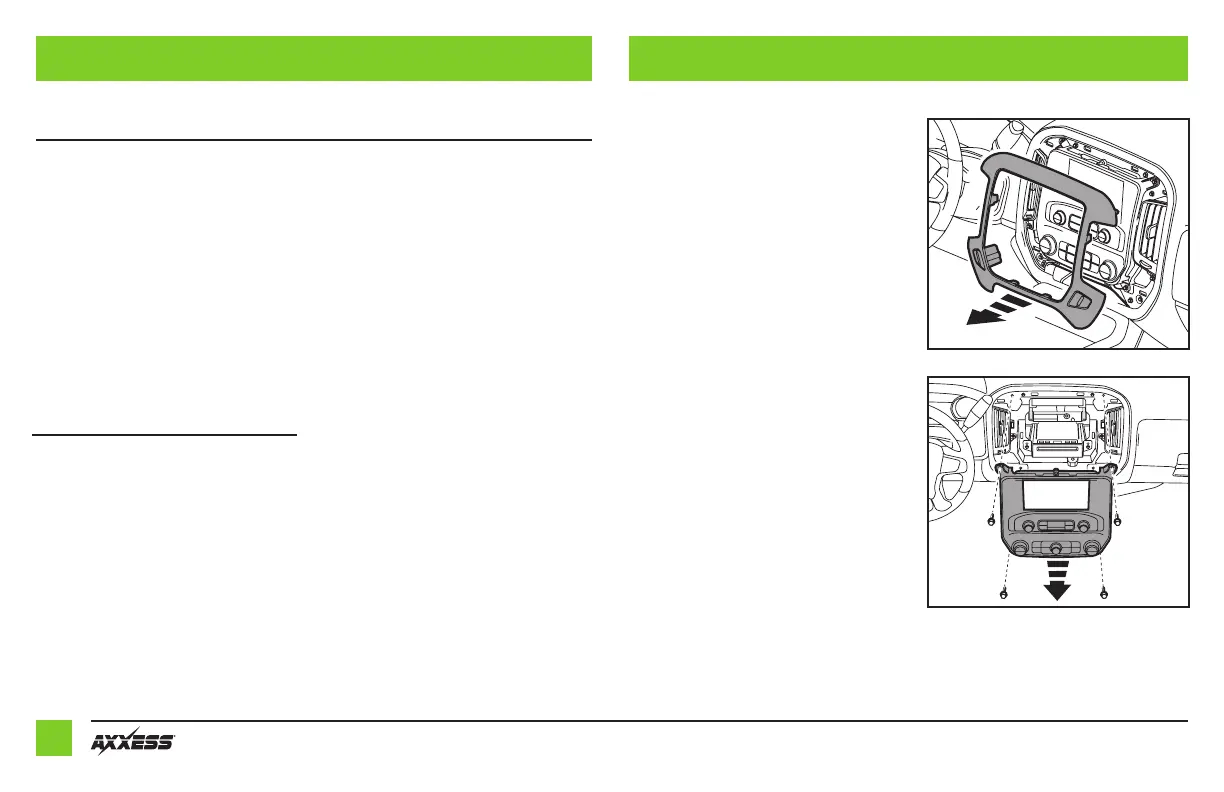

DASH DISASSEMBLY

1. Using the panel removal tool, carefully

unclip and remove the radio/climate

control trim panel. (Figure A)

2. Remove (4) 9/32” screws securing the

radio/climate control panel, then unclip,

unplug and remove the panel. (Figure B)

(Figure A)

(Figure B)

SPEAKER INSTALLATION

Install the provided speaker in the dash prior

to assembling the radio components.

Note: Make sure this is mounted in a location

suitable for the driver to hear. (Audio level

for the speaker can be changed via the radio,

once installed.)

REV. 7/30/24 INSTAXPIO-SIL1

DASH DISASSEMBLY

(CONT.)

Tuner box

Onstar module

(Figure C)

(Figure D)

3. Remove (2) 9/32" screws securing the

CD player. Slide the CD player out, then

unplug and remove the CD player.

(Figure C)

4. Unclip and slide out the Onstar module

and tuner box, then unplug and remove

them. (Figure D)

If using the LD-LAN09-PIO:

1. Using the panel removal tool, unclip the

plastic shroud around the steering wheel

column. (Figure E)

2. LD-GMSWC Connect the to the 10-pin

straight row connector located in the

steering column.

3. LD-GMSWC Route the cable through the

steering column into the dash and back

towards the radio area.

4. Remove (3) bolts from the lower trim

cover. Rotate the steering wheel to gain

access to the bolts, then remove the

forward facing bolts. (Figure F)

NOTE: LD-LAN09-PIO If RPO is IO5 or IO6, use the .

If RPO is IOB, use the .LD-LAN10-PIO

(Figure E)

(Figure F)
