AXPIO-JT1
I N S T A L L A T I O N I N S T R U C T I O N S
AxxessInterfaces.com Š COPYRIGHT 2022 METRA ELECTRONICS CORPORATION REV. 7/5/22 INSTAXPIO-JT1
TOOLS & INSTALLATION ACCESSORIES REQUIRED
• Panel removal tool • Phillips screwdriver
• Torx screwdriver
TABLE OF CONTENTS
Dash Disassembly ..................................................2
Kit Assembly
- Radio provision ...................................................2
- Pioneer Modular DDIN radio provision ..............3
AXXESS Interface Installation ...........................4-16
Jeep
Gladiator JT 2020-Up
Note: This kit will function in both Single-Zone and Dual-Zone vehicles:
• All HVAC functions will be retained.
•
Single-Zone vehicles will only get status feedback of the HVAC functions,
while Dual-Zone vehicles can also be controlled through the radio screen.
• Compass is only retained on vehicles equipped with the UConnect 3
(5" touchscreen).
• The External Speaker is only required in vehicles with safety group features.
Attention! Designed specifically for Pioneer’s DMH-W4600NEX/WC4660NEX.
Pioneer 9" DMH-WC6600NEX will require the Metra Floating Mount Kit
109-UN02. (sold separately)

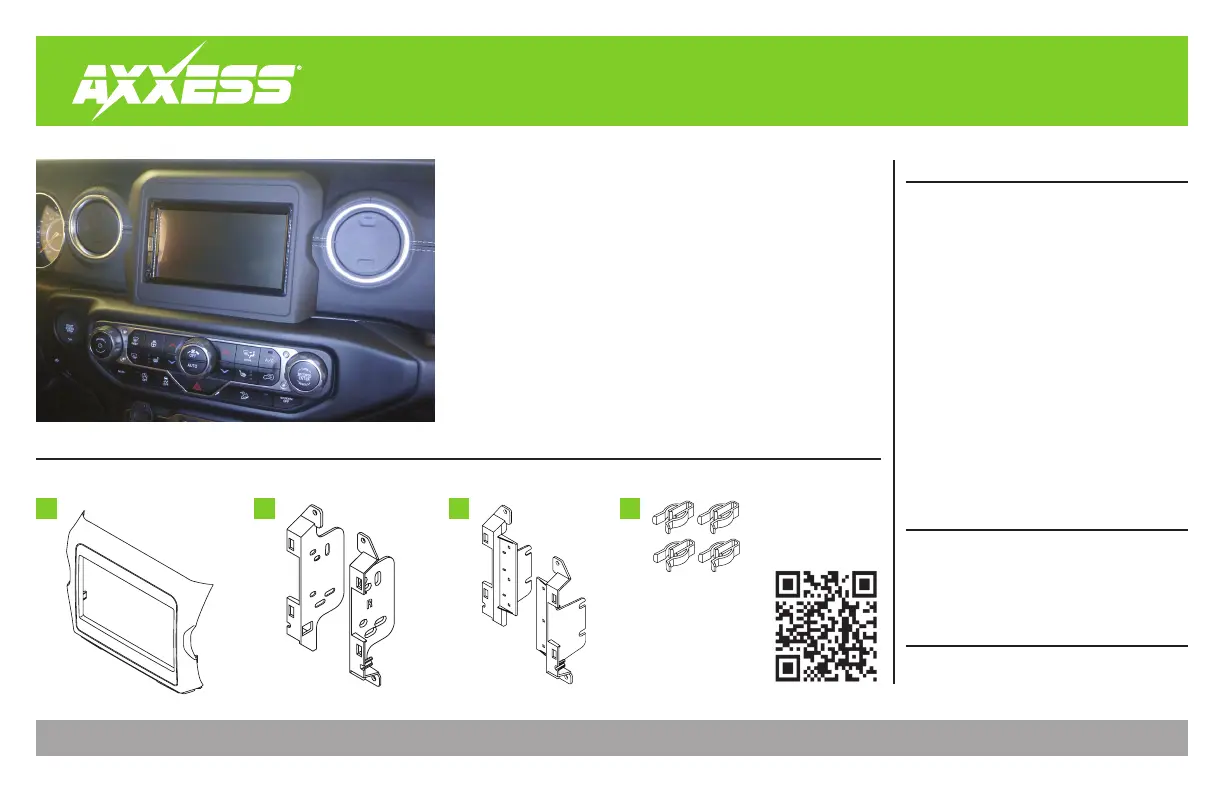

KIT COMPONENTS
• A) Radio bezel • B) Shallow mount brackets • C) Modular radio brackets • D) Panel clips (4)
A B C D
WIRING & ANTENNA CONNECTIONS
Wiring Harness: Included with Kit
Antenna Adapter:
Included with Kit
GPS
Antenna Adapter:
Included with Kit
Visit AxxessInterfaces.com for up-to-date
vehicle specic applications.
Product Info
2

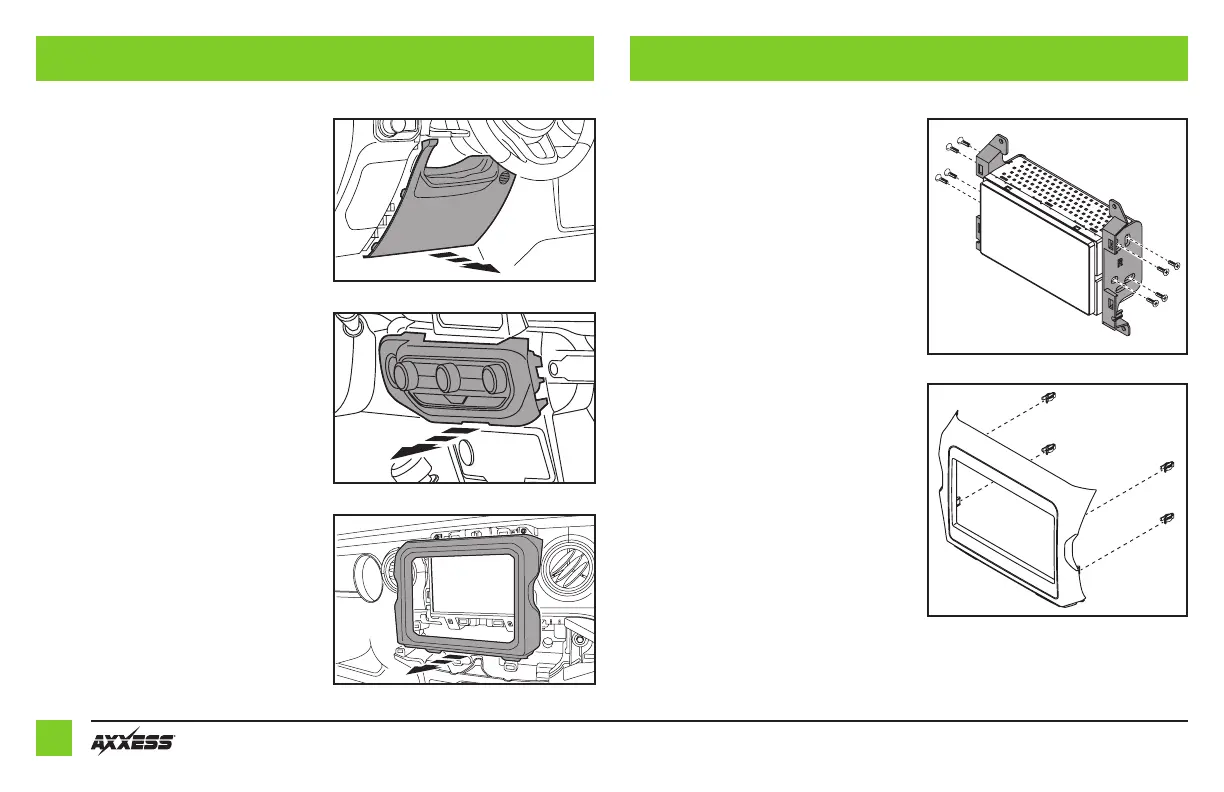

DASH DISASSEMBLY KIT ASSEMBLY
1. Unsnap and remove the panel below the
steering column. (Figure A)
2. Using the panel removal tool, carefully
unclip the climate control panel, unplug
the HVAC and start/stop button, and
then set aside. (Figure B)
3. Remove (2) Phillips screws securing the
radio trim panel, then, starting at the
bottom, unclip and remove the panel.
(Figure C)
4. Remove (4) Phillips screws securing the
factory radio, disconnect the wiring, and
then remove the radio.
(Figure A)
(Figure B)
(Figure C)
(Figure A)
(Figure B)
Radio provision
1. Secure the
shallow radio brackets
to
the radio using screws supplied with the
radio. (Figure A)
2. Locate the factory wiring harness and
antenna connector in the dash and
complete all necessary connections to
the radio. Metra recommends using the
proper mating adapter from Metra and/
or Axxess.
3. Reconnect the negative battery terminal
and test the Pioneer radio for proper
operation.
4. Place the radio into the dash, then
secure using the factory screws.
5. Attach (4)
panel clips
provided with this
kit onto the
radio bezel
, and then snap
the bezel over the radio. (Figure B)
6. Reassemble the dash in the reverse
order of disassembly to complete
the installation.
3
REV. 7/5/22 INSTAXPIO-JT1
KIT ASSEMBLY
(Figure C)
(Figure A)
(Figure B)
Pioneer Modular DDIN radio provision
1. Secure the radio display to the
modular
radio brackets
using (6) screws supplied
with the radio. (Figure A)
Note: Reference the aftermarket radio’s
installation manual to determine which
screws secure the radio display.
2. Secure the radio chassis to the radio
display/bracket assembly using (4)
screws supplied with the radio. (Figure B)
Note: Reference the aftermarket radio’s
installation manual to determine which
screws secure the radio chassis.
3. Route the RGB extension cable from the
radio chassis to the display screen, then
connect the cable to the display screen.
4. Locate the factory wiring harness and
antenna connector in the dash and
complete all necessary connections to
the radio. Metra recommends using the
proper mating adapter from Metra and/
or Axxess.
5.
Reconnect the negative battery
terminal and test the Pioneer radio
for proper operation.
6. Place the radio display into the dash,
and then secure using the factory screws.
7. Attach (4)
panel clips
provided with this
kit onto the
radio bezel
, then snap the
bezel over the radio. (Figure C)
8. Reassemble the dash in the reverse
order of disassembly to complete
the installation.
