AXPIO-COL2
I N S TA L L A T I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2024 METRA ELECTRONICS CORPORATION REV. 7/25/24 INSTAXPIO-COL2
ATTENTION: With the key out of the ignition,
disconnect the negative battery terminal
before installing this product. Ensure that all
installation connections, especially the air
bag indicator lights, are plugged in before
reconnecting the battery or cycling the ignition
to test this product.
NOTE: Refer also to the instructions included
with the aftermarket radio.
TABLE OF CONTENTS
Speaker Installation...............................................2
Dash Disassembly 2 ..................................................
Connections 3-4 ........................................................
Kit Preparation 5 .......................................................
Kit Assembly 5 ..........................................................
Radio Operations 6-7 ...............................................
Chevrolet GMCColorado/ Canyon 2019-Up
KIT FEATURES)
•
Designed for Pioneer DMH-W4600NEX/W4660NEX or
DMH-WC5700NEX receivers
• Allows for the retention and adjustment of the factory personalization
menu through the Pioneer radio
• Provides a visual view of HVAC and gauges on the Pioneer screen (cannot
be adjusted via the screen)
(cont. on page 2)

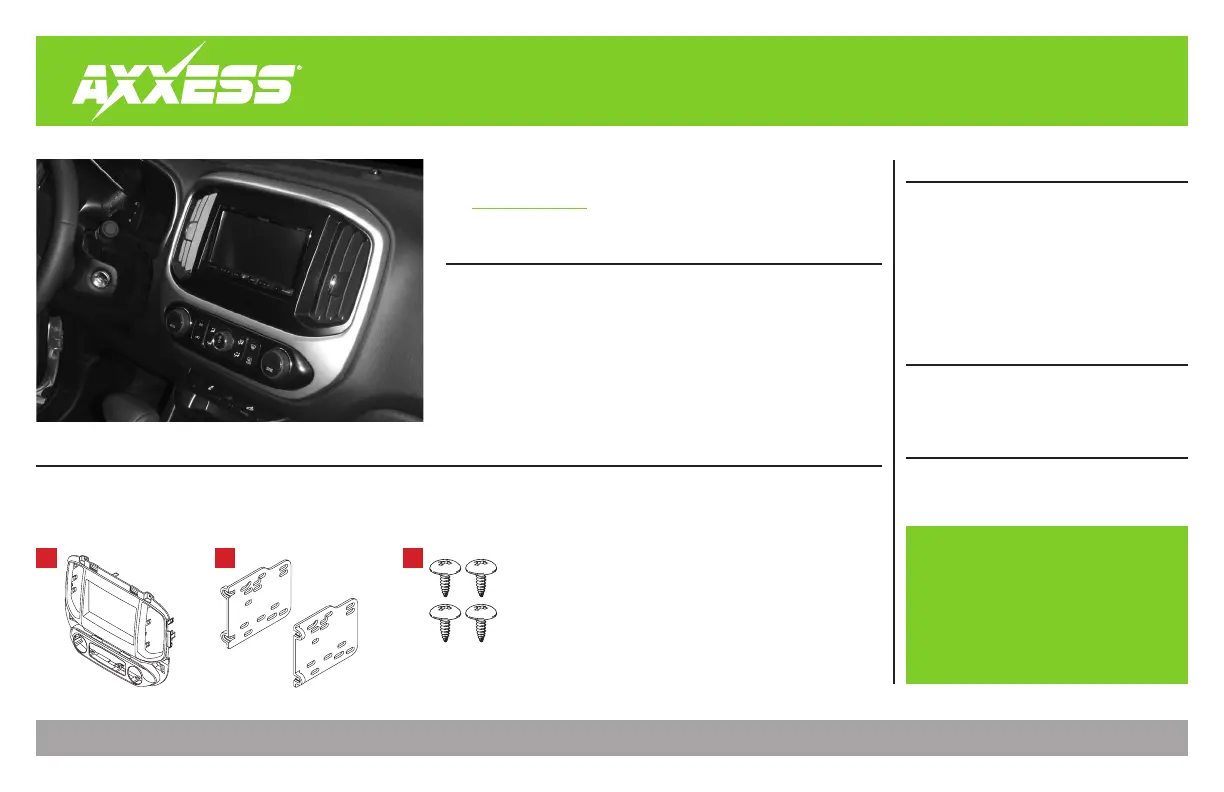

KIT COMPONENTS
• A) Radio Trim Panel • B) Brackets • C) #8 x 3/8" Phillips pan-head Screws (4)
Not Shown: Radio Interface, LD-GM30-PIO, LD-GM31-PIO, AD-EU5, 40-GPS-PIO, PR04AVIC-PIO/PRO4-PIORCA, LD-AX-SPK
Visit for more detailed information about the product and
AxxessInterfaces.com
up-to-date vehicle specific applications.
WIRING & ANTENNA CONNECTIONS
•
RGB Extension Cable: Pioneer part # CD-RGB150A
(not sold by Metra)
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• 9/32" socket wrench
A B C
2
KIT FEATURES (cont. from cover)
• Complete Plug-n-Play installation
• Includes dash kit with Axxess interface and
vehicle-specific T-harness
• Includes radio antenna adaptor for GPS
• Provides accessory power (12-volt 10-amp)
• Provides NAV outputs (parking brake,
reverse, speed sense)
• Retains audio controls on the steering wheel
• Works in both single and dual-zone vehicles
• Retains safety chimes through an included
off-board speaker
• USB Micro “B” USB updatable
• Dash kit is painted scratch-resistant matte
black to match the factory finish
• For non-amplified vehicles only
KIT FEATURES
(CONT.)
DASH DISASSEMBLY
1. Unclip and remove the trim panel
surrounding the radio/climate control
panel. (Figure A)
2. Remove (4) 9/32" screws securing the
radio/climate control panel. (Figure B)
3. Remove (2) 9/32" screws securing the CD
player then unplug and remove the player.
4. Unclip and slide out the factory tuner
module then unplug and remove it.
5. Unclip and remove the climate controls
from the factory trim panel.
6. Unclip and remove the climate control
vents from the factory trim panel.
Continue to Connections
(Figure A)
(Figure B)
SPEAKER INSTALLATION
Install the provided speaker in the dash prior to assembling the radio components.
Note: Make sure this is mounted in a location suitable for the driver to hear. (Audio level for the
speaker can be changed via the radio, once installed.)
3
REV. 7/25/24 INSTAXPIO-COL2
EXTERNAL SPEAKER
LD SPK-AX-
Pioneer Harness
LD-GM30-PIO
CARSIDE ORS CONNECT (CONNECT TO
EXTENSION)
MICRO-HDMI
ADAPTER NEEDED
(N/A)
EXT SPKR
CAN 2
CAN3
“TBA” WIRES
AD-EU5
AUX IN
High-Level
PRO4-AVIC-PIO
USB/AUX
(USE INSTEAD)
AXXESS INTER CEFA PRO4-PIORCA
Low-Level
AUX (INCL. W/RADIO)
GPS 4-PIN MIC HDMI
ANT
18P (M)
18P (F)
16P 22P
40-GPS-PIO
10
TBA
CONNECTIONS
Important: Verify HVAC status & control, Steering
wheel audio controls, and External Speaker output
prior to completing dash assembly.
Important: Install the provided
speaker in the dash prior to assembling
the radio components.
Note: Make sure this is mounted in a
location suitable for the driver to hear.
(Audio level for the speaker can be
changed via the radio, once installed.)
Note: LD-GM30-PIO applications will
not retain the factory backup camera.
