AXPIO-CAM2
I N S TA L L AT I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2024 METRA ELECTRONICS CORPORATION REV. 7/25/24 INSTAXPIO-CAM2
ATTENTION: With the key out of the ignition,
disconnect the negative battery terminal before
installing this product. Ensure that all installation
connections, especially the air bag indicator lights, are
plugged in before reconnecting the battery or cycling
the ignition to test this product.
NOTE: Refer also to the instructions included with the
aftermarket accessory before installing this device.
TABLE OF CONTENTS
Interface Installation 2 .............................................
Dash Disassembly 2-3 ..............................................
Connections 4-5 ........................................................
Kit Assembly 6 ..........................................................
Radio Operations 7-8 ...............................................
Chevrolet Camaro 2019-UP
KIT FEATURES
• Designed for Pioneer DMH-WC5700NEX receivers
• Allows for the retention and adjustment of the factory personalization
menu through the Pioneer radio
• Provides a visual view of HVAC and gauges on the Pioneer screen
(can not be adjusted via the screen)
(cont. on page 2)

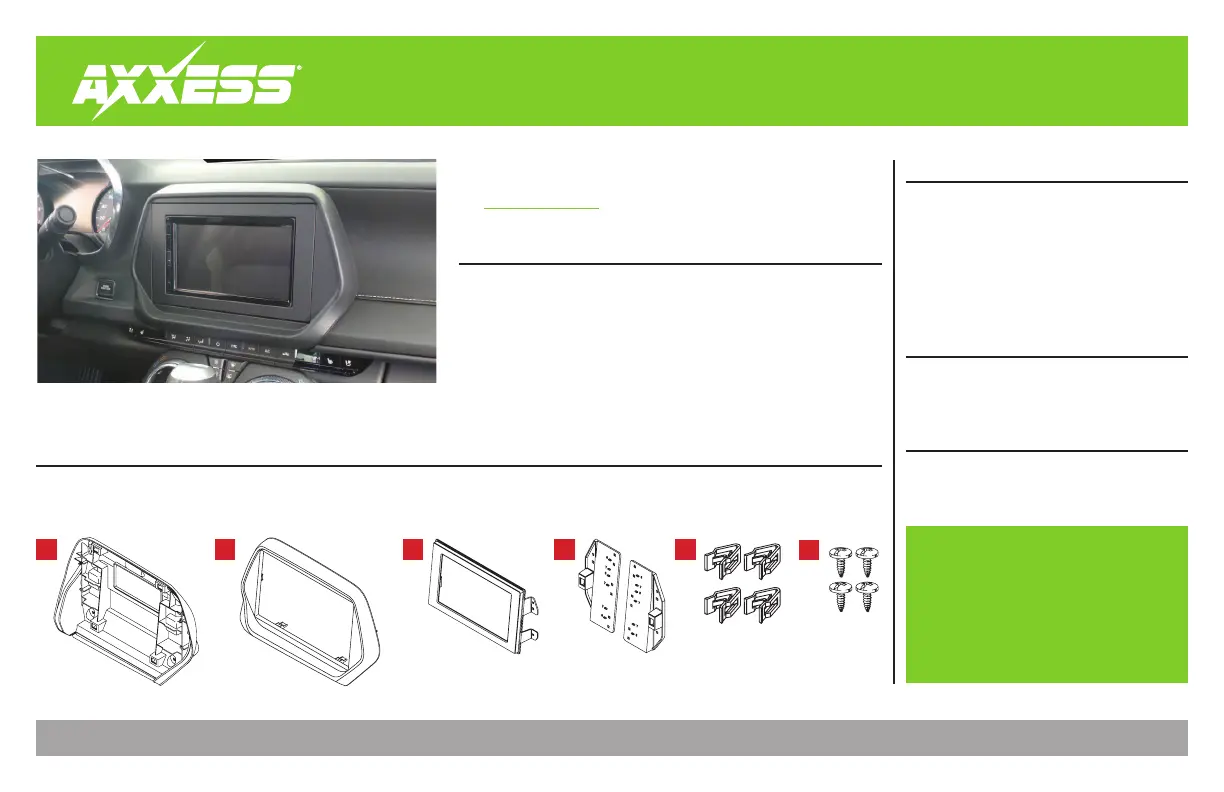

KIT COMPONENTS
• A) Display Screen Housing • B) Display Screen Trim Bezel • C) Display Screen Trim • D) Brackets •E) Panel Clips • F) Phillips Screws (4)
Not Shown: Radio Interface, LD-GM30-PIO, LD-GM31-PIO, AXEXH-GM30, AXEXH-GM31 LD-GMSWC, AD-EU5, 40-GPS-PIO, PR04AVIC-PIO / PRO4-PIORCA,
LD-AX-SPK, AXUSB-GM6
Visit for more detailed information about the product and
AxxessInterfaces.com
up-to-date vehicle specific applications.
WIRING & ANTENNA CONNECTIONS
•
RGB Extension Cable: Pioneer part # CD-RGB150A
(not sold by Metra)
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• 9/32" socket wrench
A B DC E F
2
KIT FEATURES (cont. from cover)
• Complete Plug-n-Play installation
• Includes dash kit with Axxess interface and
vehicle-specific T-harness
• Includes a 3' USB/AUX/HDMI replacement
cable with panel
• Includes radio antenna adaptor for GPS
• Provides accessory power (12-volt 10-amp)
• Provides NAV outputs (parking brake,
reverse, speed sense)
•
Retains audio controls on the steering wheel
• Works in both single and dual-zone vehicles
• Retains safety chimes through an included
off-board speaker
• USB Micro B updatable
•
Dash kit is painted scratch-resistant matte
black to match the factory finish
• Designed for non-amplified vehicles only
KIT FEATURES
(CONT.)

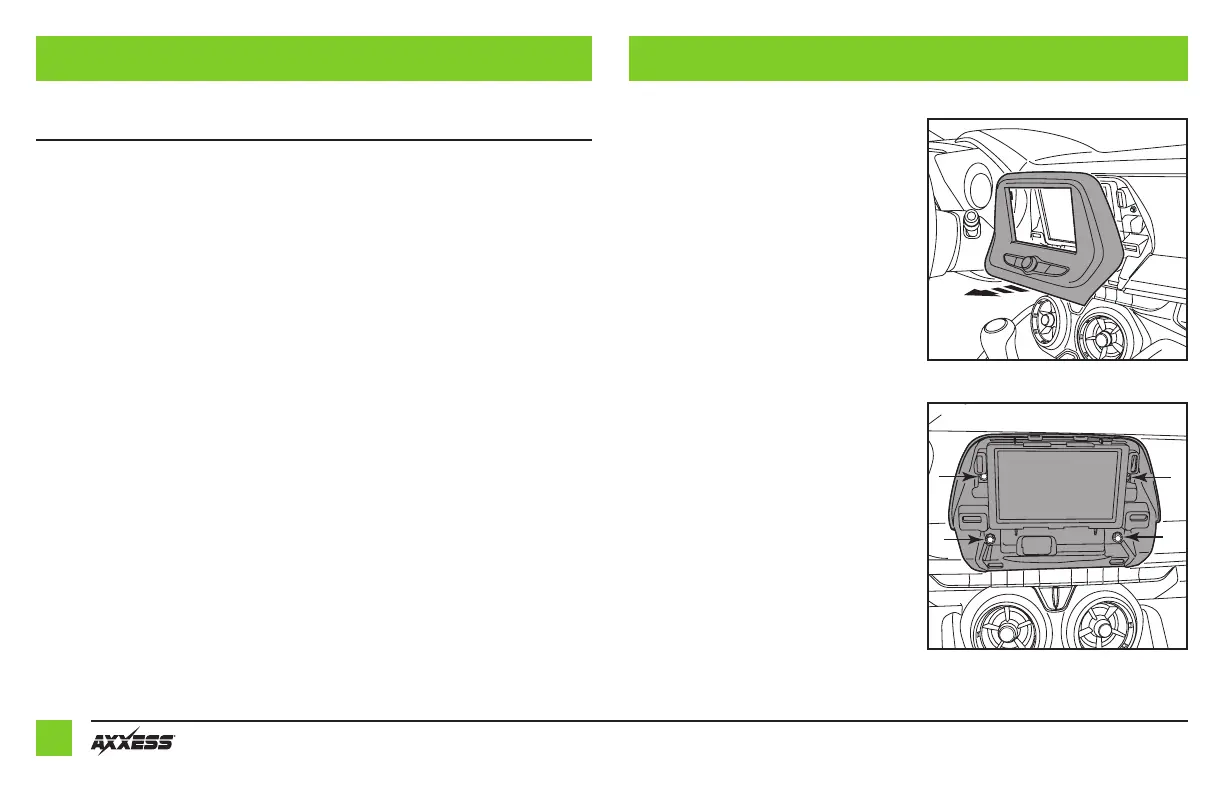

DASH DISASSEMBLY
Models equipped with a 7-inch touchscreen radio:
1. Using the panel removal tool, gently unclip,
unplug, and remove the radio control trim
panel. (Figure A)
2. Remove (4) 9/32" screws securing the
radio, disconnect the wiring, and then
remove the radio. (Figure B)
Continue to Connections
(Figure A)
(Figure B)
3
REV. 7/25/24 INSTAXPIO-CAM2
(Figure C)
(Figure D)
Models equipped with an 8-inch touchscreen radio:
1.
Using the panel removal tool, carefully
unclip
and remove the trim surrounding the
radio controls. (Figure C)
2. Remove (2) 9/32" screws securing the
radio, disconnect the wiring, and then
remove the radio. (Figure D)
Continue to Connections
DASH DISASSEMBLY
(CONT.)
