AXPIO-CAM1

I N S TA L L A T I O N I N S T R U C T I O N S

ATTENTION: With the key out of the ignition,

disconnect the negative battery terminal before

installing this product. Ensure that all installation

connections, especially the air bag indicator lights, are

plugged in before reconnecting the battery or cycling

the ignition to test this product.

NOTE: Refer also to the instructions included with the

aftermarket accessory before installing this device.

TABLE OF CONTENTS

Interface Installation 2 .............................................

Dash Disassembly 2-3 ..............................................

Connections 4-5 ........................................................

Kit Assembly 6 ..........................................................

Radio Operations 7-8 ...............................................

Chevrolet Camaro 2016-2018

KIT FEATURES)

• Designed for Pioneer DMH-WC5700NEX receivers

• Allows for the retention and adjustment of the factory personalization

menu through the Pioneer radio

• Provides a visual view of HVAC and gauges on the Pioneer screen

(cannot be adjusted via the screen)

(cont. on page 2)

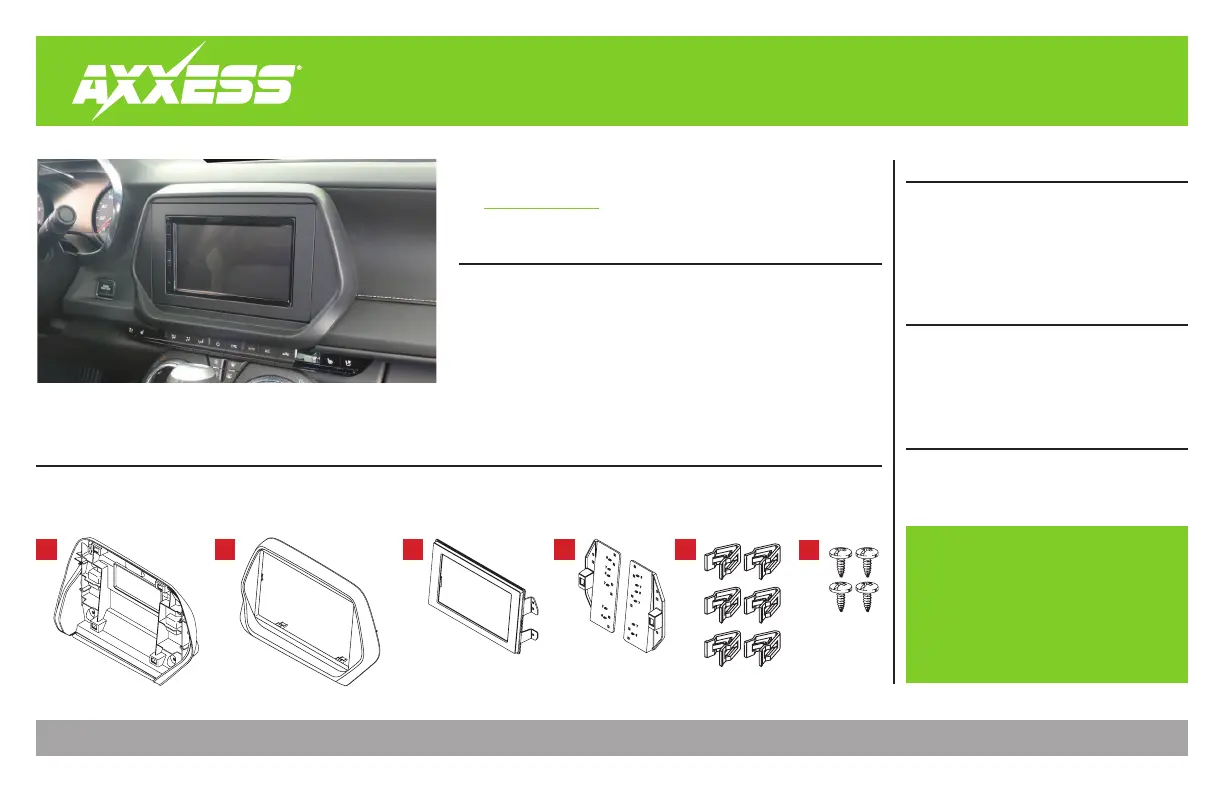

KIT COMPONENTS

•A) Display Screen Housing • B) Display Screen Trim Bezel • C) Display Screen Trim • D) Brackets •E) Panel Clips (6) • F) Phillips Screws (4)

Not Shown: Radio Interface, LD-LAN09-PIO, LD-LAN10-PIO, AXEXH-GM09, AXEXH-GM10, LD-BACKCAM-MOST, LD-GMSWC, AD-EU5, 40-GPS-PIO, PR04AVIC-PIO / PRO4-

PIORCA, LD-AX-SPK, AXUSB-GM6

Visit for more detailed information about the product and

AxxessInterfaces.com

up-to-date vehicle specific applications.

WIRING & ANTENNA CONNECTIONS (sold separately)

• Antenna Adapter: 40-EU55

• Steering Wheel Control Interface: AXSWC

•

RGB Extension Cable: Pioneer part # CD-RGB150A

(not sold by Metra)

TOOLS REQUIRED

• Panel removal tool • Phillips screwdriver

• 9/32" socket wrench

A B DC E F

KIT FEATURES (cont. from cover)

• Complete Plug-n-Play installation

• Includes dash kit with Axxess interface and

vehicle-specific T-harness

• Includes a 3' USB/AUX/HDMI replacement

cable with panel

• Includes radio antenna adaptor for GPS

• Provides accessory power (12-volt 10-amp)

• Provides NAV outputs (parking brake,

reverse, speed sense)

•

Retains audio controls on the steering whee

• Works in both single and dual-zone vehicles

• Retains safety chimes through an included

off-board speaker

• USB Micro B updatable

•

Dash kit is painted scratch-resistant matte

black to match the factory finish

KIT FEATURES

(CONT.)

DASH DISASSEMBLY

Models equipped with a 7-inch touchscreen radio:

1. Using the panel removal tool, gently unclip,

unplug, and remove the radio control trim

panel. (Figure A)

2. Remove (4) 9/32" screws securing the

radio, disconnect the wiring, and then

remove the radio. (Figure B)

Continue to Connections

(Figure A)

(Figure B)

INTERFACE INSTALLATION

Install the provided speaker in the dash prior

to assembling the radio components.

Note: Make sure this is mounted in a location

suitable for the driver to hear. (Audio level

for the speaker can be changed via the radio,

once installed.)

REV. 7/25/24 INSTAXPIO-CAM1

(Figure C)

(Figure D)

Models equipped with an 8-inch touchscreen radio:

1. Using the panel removal tool, carefully

unclip and remove the trim surrounding

the radio controls. (Figure C)

2. Remove (2) 9/32" screws securing the

radio, disconnect the wiring, and then

remove the radio. (Figure D)

Continue to Connections

DASH DISASSEMBLY

(CONT.)

If using the LD-LAN09-PIO:

1. Using the panel removal tool, unclip the

plastic shroud around the steering wheel

column. (Figure E)

2. LD-GMSWC Connect the to the 10-pin

straight row connector located in the

steering column.

3. LD-GMSWC Route the cable through the

steering column into the dash and back

towards the radio area.

4. Remove (3) bolts from the lower trim

cover. Rotate the steering wheel to gain

access to the bolts, then remove the

forward facing bolts. (Figure F)

NOTE: LD-LAN09-PIO If RPO is IO5 or IO6, use the .

If RPO is IOB, use the .LD-LAN10-PIO

(Figure E)

(Figure F)
