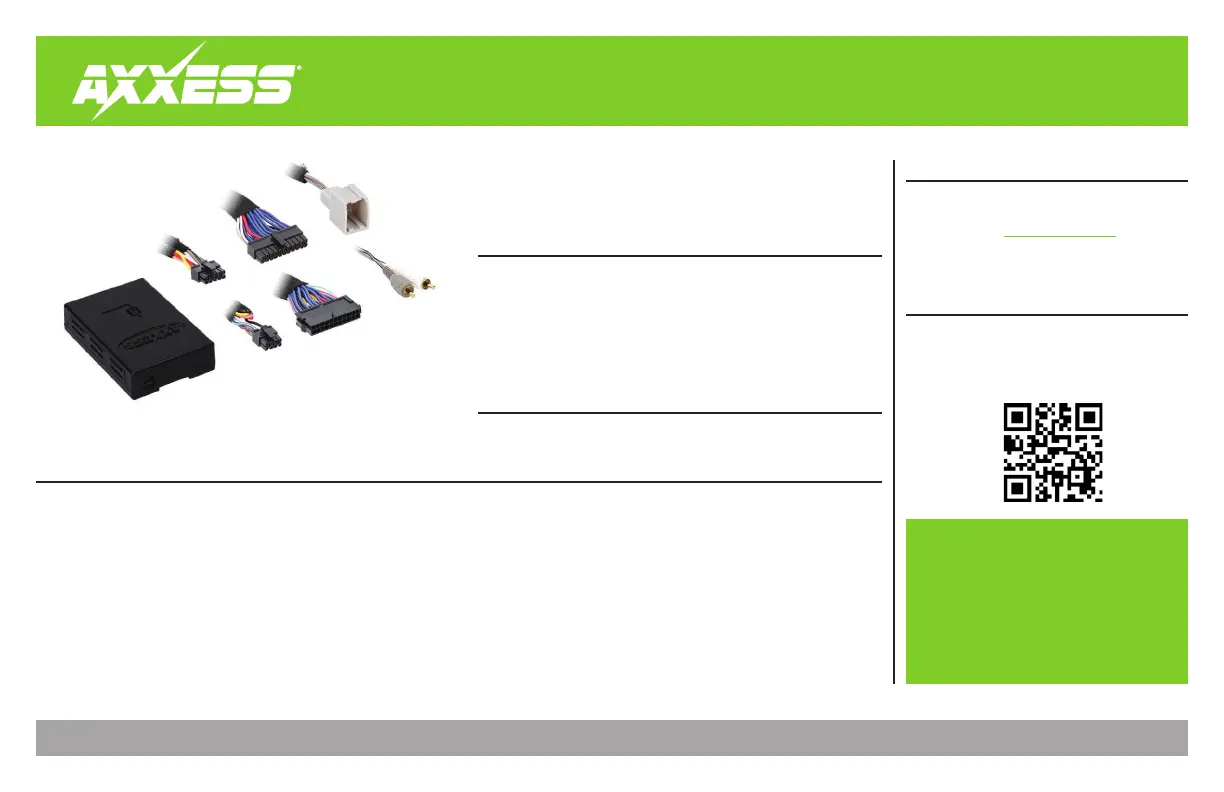

AXM50-GM1
I N S T A L L A T I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2024 METRA ELECTRONICS CORPORATION REV. 7/11/24 INSTAXM50-GM1
INTERFACE FEATURES
INTERFACE COMPONENTS
TOOLS & INSTALLATION ACCESSORIES REQUIRED
• Zip-ties • Cutters (for zip-ties)
TABLE OF CONTENTS
Connections 2-3 ........................................................
GM MOST50 Amp Retention Interface
2014-2021
APPLICATIONS
• Designed for amplified models
• Add-on amp interface to be used with Axxess interface AXGMLN-09
• Retains the Bose amp in GM vehicles
• Retains balance
• Micro-B USB updatable
Cadillac
Escalade 2015-2019 ...........................................
Chevrolet
Camaro (RPO IO5/IO6) 2016-2018 .....................
Cheyenne 2014-2019 ........................................
Colorado 2015-2018 ..........................................
Corvette 2014-2019 ............................................
Equinox (RPO IO5/IO6) 2018 ...................
Chevrolet cont.
Impala 2014-2018 ..............................................
Silverado...........................................2014-2018
Spark 2016-2017 .................................................
Suburban 2015-2021 .........................................
Tahoe 2015-2020 ...............................................
Traverse (RPO Code IO5 / IO6) 2018 ........
GMC
Acadia (RPO IO5/IO6) ......................2017-2019
Canyon (RPO IO5 / IO6) 2015-2018 ..................
Sierra 2016-2018 ................................................
Sierra 1500 2014-2015 .......................................
Sierra 2500/3500 2015-2018 ............................
Yukon 2015-2020 ...............................................
• AXM50-GM1 interface • LD-MOST2-ADAPT harness
• AXM50-GM1 T-harness
Product Info
Visit AxxessInterfaces.com
for more detailed information about the product
and up-to-date vehicle specific applications
ATTENTION: With the key out of the ignition,
disconnect the negative battery terminal before
installing this product. Ensure that all installation
connections, especially the air bag indicator
lights, are plugged in before reconnecting the
battery or cycling the ignition to test this product.
NOTE: Refer also to the instructions included
with the aftermarket accessory before installing
this device.
2

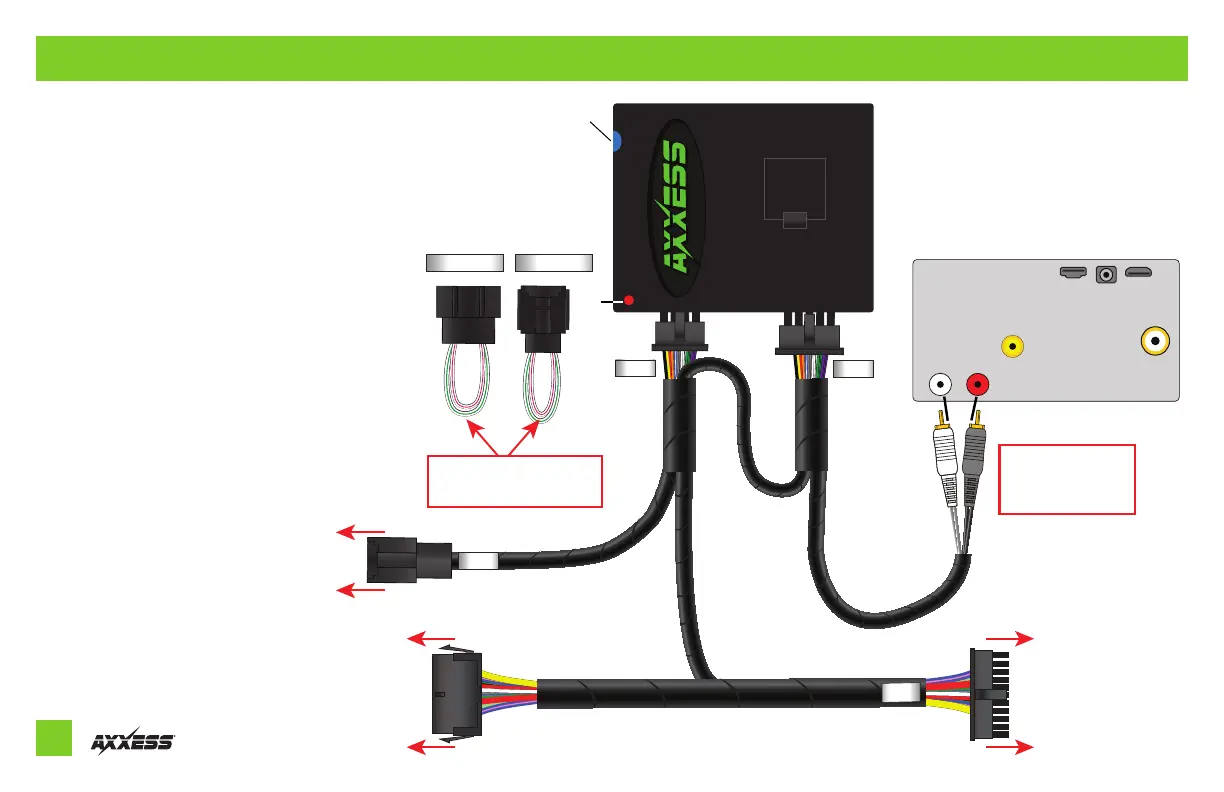

CONNECTIONS
4-PIN MIC HDMI
CONNECT TO RADIO
To AXGMLN-09
Harness
LD-JUMP 10 PIN LD-JUMP 12 PIN
Overall Gain Potentiometer*
RADIO
Plug into the Connector you
unplugged from the CD Player.
Cut RCAs and wire
to speaker level
if you have low sound.
22 Pin
8 Pin
8 Pin 10 Pin
LED
INITIALIZATION STEPS : These steps are to be done right after
AXGMLN-09 has been programmed.
1. After all connections are made, turn on the ignition
2. LED AXM50-GM1 LEDLook at the on the and wait for the to go solid RED
3. LED Once is solid RED, cycle ignition and test
Rear View
RCAs
Connect to the 8 PIN MOST
connector at tuner
To AXGMLN-09
Interface
From the 10-pin or 12-pin jumper harness to the vehicle:
If the vehicle
does not
have a CD or DVD-Drive, disregard these steps.
For models
without
rear seat entertainment:
• Connect the female Black 10-pin jumper harness, to the male
Black 10-pin harness removed from the CD-Drive.
For models
with
rear seat entertainment:
• Connect the female Black 12-pin jumper harness, to the male
Black 12-pin harness removed from the DVD-Drive.
Note: Even though this step must be done for models with rear
seat entertainment, the rear seat entertainment system will not be
retained by this interface.
*To Adjust Overall Gain:
1. With a small flat-blade screwdriver, adjust the potentiometer
clockwise to raise the audio level; counterclockwise to lower the
audio level.
2. Once at a desired level, audio level adjustment is complete.
3
REV. 7/11/24 INSTAXM50-GM1
AXGMLN-09
Harness
LD-MOST2-ADAPT
Tuner
Location
CONNECTIONS (CONT.)
For CHEVROLET Corvette 2014-2019 & Impala 2014-18 vehicles
