AXLOC-TY3

I N S T A L L A T I O N I N S T R U C T I O N S

ATTENTION: With the key out of the ignition,

disconnect the negative battery terminal

before installing this product. Ensure that all

installation connections, especially the air

bag indicator lights, are plugged in before

reconnecting the battery or cycling the

ignition to test this product.

NOTE: Refer also to the instructions included

with the aftermarket accessory before

installing this device.

TOOLS REQUIRED

• Crimping tool and connectors, or solder gun,

solder, and heat shrink

• Tape • Wire cutter • Zip-ties

TABLE OF CONTENTS

Applications.............................................................1

Installation ............................................................. 2

Diagram .................................................................. 3

APPLICATIONS

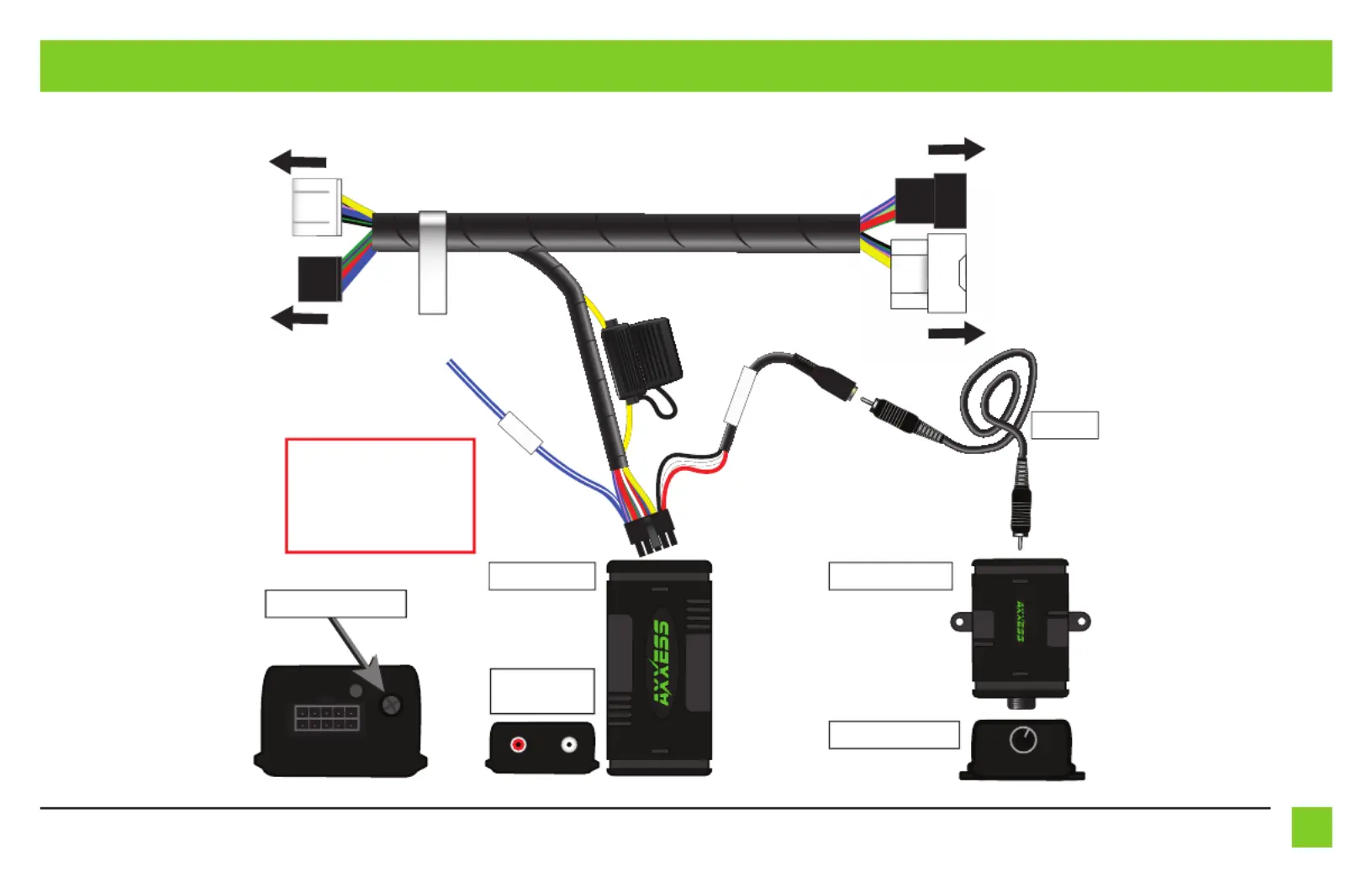

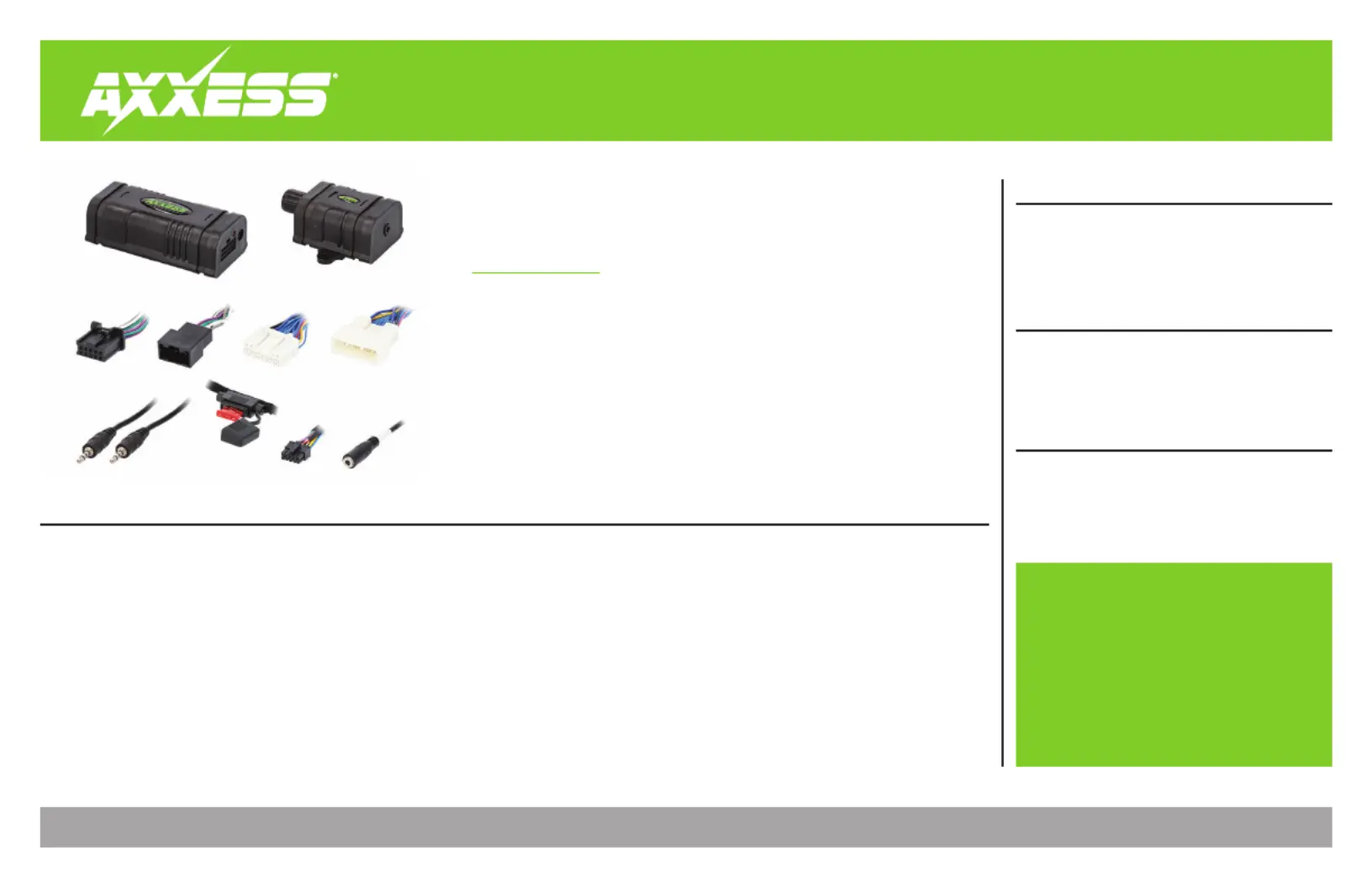

KIT COMPONENTS

• AXLOC-TY3 Wiring Harness

• Gain Controller

• 12v-500mA Remote Wire

• Auxiliary Cable

Visit AxxessInterfaces.com for more detailed information about the product and up-to-date

vehicle speciﬁc applications.

• Designed to provide (2) channels of low-level audio output from the factory system.

• Allows for the installation of an ampliﬁer for speakers or subwoofers.

• Gain Controller included to adjust the overall output.

• 12v-500mA remote wire activated with signal sense.

• 55-watts per channel.

• Designed for non-ampliﬁed vehicles.

Note: A single pole double throw (SPDT) relay is recommended when installing multiple ampliﬁers.

Toyota LOC (Line Output Converter)

AXLOC-TY3 (for Non-Ampliﬁed Vehicles) 2018-Up

For dash disassembly instructions, refer to metraonline.com. Enter the year, make, and model of the vehicle in the for .Vehicle Fit Guide Radio Install Kits

Toyota

4Runner 2020-Up

Avalon 2019-Up

C-HR 2019-Up

Camry 2018-Up

Corolla 2019-Up

Highlander 2020-Up

Prius 2020-Up

RAV4 2019-Up

Sequoia 2020-Up

Sienna 2018-Up

Tacoma 2020-Up
