Seite 1/8
AXLOC-NIS1
I N S TA L L AT I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2022 METRA ELECTRONICS CORPORATION REV. 12/6/22 INSTAXLOC-NIS1
ATTENTION: With the key out of the ignition,
disconnect the negative battery terminal
before installing this product. Ensure that all
installation connections, especially the air
bag indicator lights, are plugged in before
reconnecting the battery or cycling the
ignition to test this product.
NOTE: Refer also to the instructions included
with the aftermarket accessory before
installing this device.
TOOLS REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink
• Tape • Wire cutter • Zip-ties
TABLE OF CONTENTS
Applications.............................................................1
Installation ............................................................. 2
Diagram .................................................................. 3
Visit AxxessInterfaces.com for more detailed information about the product and up-to-date vehicle specific applications
• Designed to provide (2) channels of low-level audio output from the factory system.
• Allows for the installation of an amplifier for speakers or subwoofers.
• Gain Controller included to adjust the overall output.
• 12v-500mA remote wire activated with signal sense.
• 55-watts per channel
• Designed for non-amplified vehicles.
Note: A single pole double throw (SPDT) relay is recommended when installing multiple amplifiers.

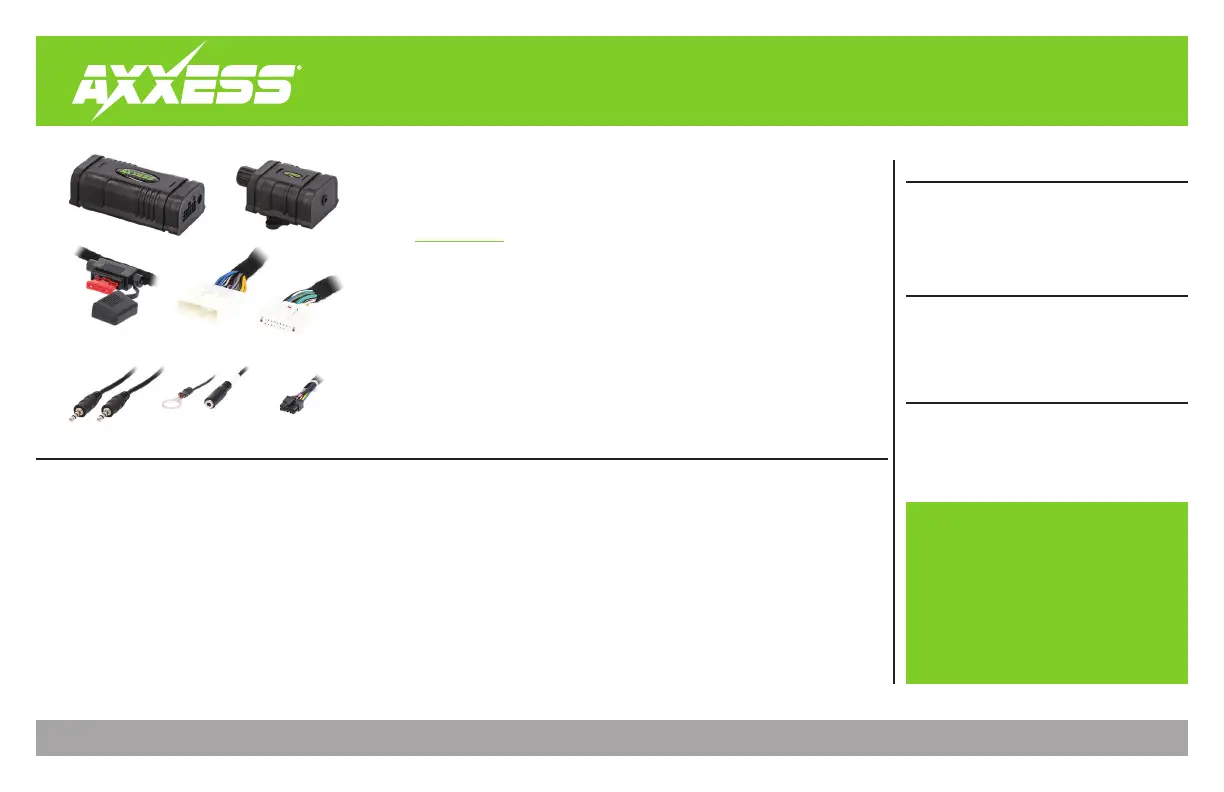

KIT COMPONENTS
• AXLOC-NIS1 Wiring Harness
• Gain Controller
• 12v-500mA Remote Wire
• Auxiliary Cable
For dash disassembly instructions, refer to . Enter the year, make, and model of the vehicle in the for .metraonline.com Vehicle Fit Guide Radio Install Kits
Nissan LOC (Line Output Converter)
AXLOC-NIS1
(for Non-Amplified Vehicles)
2007-Up
Nissan
370Z 2009-Up
Altima 2007-Up
Cube 2009-2014
Frontier 2008-Up
Juke 2011-2017
Kicks 2018-Up
Leaf 2012-Up
Maxima 2007-Up
Murano 2009-Up
Murano (Cross-Cabriolet)
2011-2014
NV – 1500/2500/3500 2012-Up
NV200 2013-Up
Pathfinder 2013-2020
Quest 2011-2016
Rogue 2008-2017
Sentra 2007-2019
Titan, Titan XD 2017-Up
Titan 2008-2015
Versa 2007-Up
Versa Note 2014-2019
Xterra 2008-2015
Subaru
Forester 2009-2015
Impreza 2008-2014
Legacy 2010-2014
Outback 2010-2014
WRX 2015
XV Crosstrek 2013-2014
Suzuki
Equator 2009-2011
APPLICATIONS
2
INSTALLATION
1.
Disconnect the harness from the factory
tuner and install the AXLOC-NIS1 harness
provided with this kit.
2. Mount the gain controller in a suitable
location, and connect the auxiliary cable
to the , then to the Gain BASS KNOB
Connector of the AXLOC harness.
3.
Install the aftermarket amplifier and
run an RCA pair (sold separately) to
the line converter.
4. Connect the remote wire, plug in the
device and secure all connections prior
to testing.
NOTE: If the vehicle is equipped with active
noise cancellation microphones (ANC), it is
recommended that they are disabled to prevent
potential noise when installing subwoofers.
3
REV. 12/6/22 INSTAXLOC-NIS1
DIAGRAM
Line Out Convertor
(Front View)
Connect
to Ground
TO RADIO TO VEHICLE
Remote
Gain Cont.
Line Out Convertor Bass Knob (Top View)
Aux. Cable
Bass Knob (Front View)
LD-AXLOC-NIS1
Output Level Adjustment
NOTE: If using external Bass knob,
make sure your “Output Level
Adjustment” knob is turned all
the way down (turned all the way
to the left).
