AXLOC-GM44
I N S TA L L AT I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2022 METRA ELECTRONICS CORPORATION REV. 12/5/22 INSTAXLOC-GM44
ATTENTION: With the key out of the ignition,
disconnect the negative battery terminal
before installing this product. Ensure that all
installation connections, especially the air
bag indicator lights, are plugged in before
reconnecting the battery or cycling the
ignition to test this product.
NOTE: Refer also to the instructions included
with the aftermarket accessory before
installing this device.
TOOLS REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink
• Tape • Wire cutter • Zip-ties
TABLE OF CONTENTS
Applications.............................................................1
Installation ............................................................. 2
Diagram .................................................................. 3
APPLICATIONS
Visit AxxessInterfaces.com for more detailed information about the product and up-to-date vehicle specific applications
• Designed to provide (2) channels of low-level audio output from the factory system.
• Allows for the installation of an amplifier for speakers or subwoofers.
• Gain Controller included to adjust the overall output.
• 12v-500mA remote wire activated with signal sense.
• 55-watts per channel
• Designed for non-amplified vehicles.
Note: A single pole double throw (SPDT) relay is recommended when installing multiple amplifiers.
KIT COMPONENTS

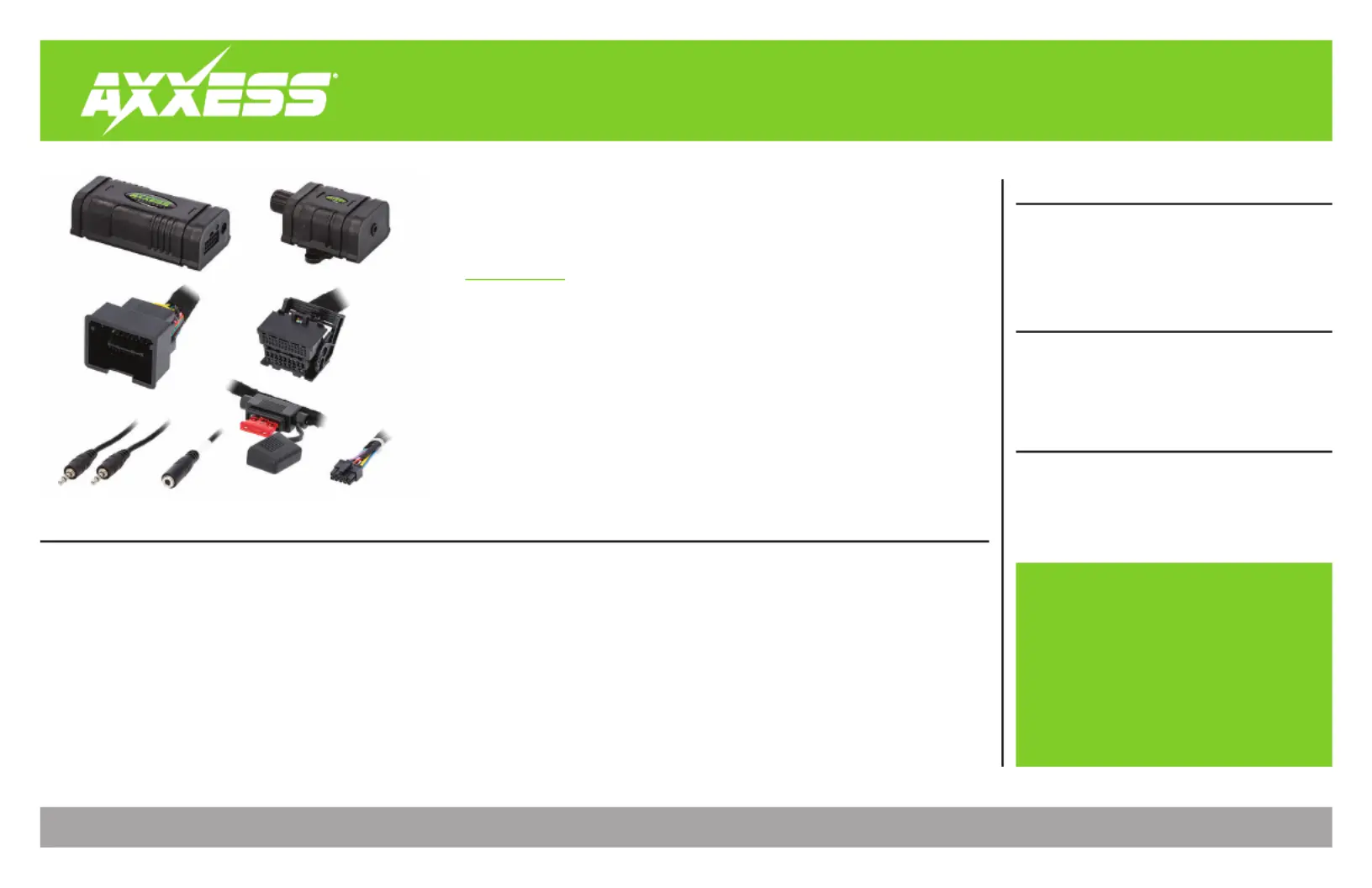

• AXLOC-GM44 Wiring Harness
• Gain Controller
• 12v-500mA Remote Wire
• Auxiliary Cable
Chevy
Avalanche 2012-2013
Camaro 2010-2015
Cruze
2011
-2015
Equinox 2010-2017
Express 2013-2015
Malibu 2013-2015
Sonic 2012-2014
Spark 2013-2015
Suburban 2012-2014
Tahoe 2012-2014
Trax 2015-2016
GMC
Savana 2013-2015
Sierra 2012-2013
Terrain 2010-2017
Yukon/XL 2012-2014
For dash disassembly instructions, refer to . Enter the year, make, and model of the vehicle in the for .metraonline.com Vehicle Fit Guide Radio Install Kits
GM LOC (Line Output Converter)
AXLOC-GM44
(for Non-Amplified Vehicles)
2010-2017
2
INSTALLATION
1.
Disconnect the harness from the factory
tuner and install the AXLOC-GM44
harness provided with this kit.
2. Mount the gain controller in a suitable
location, and connect the auxiliary cable
to the , then to the Gain BASS KNOB
Connector of the AXLOC harness.
3.
Install the aftermarket amplifier and
run an RCA pair (sold separately) to
the line converter.
4. Connect the remote wire, plug in the
device and secure all connections prior
to testing.
NOTE: If the vehicle is equipped with active
noise cancellation microphones (ANC), it is
recommended that they are disabled to prevent
potential noise when installing subwoofers.
3
REV. 12/5/22 INSTAXLOC-GM44
DIAGRAM

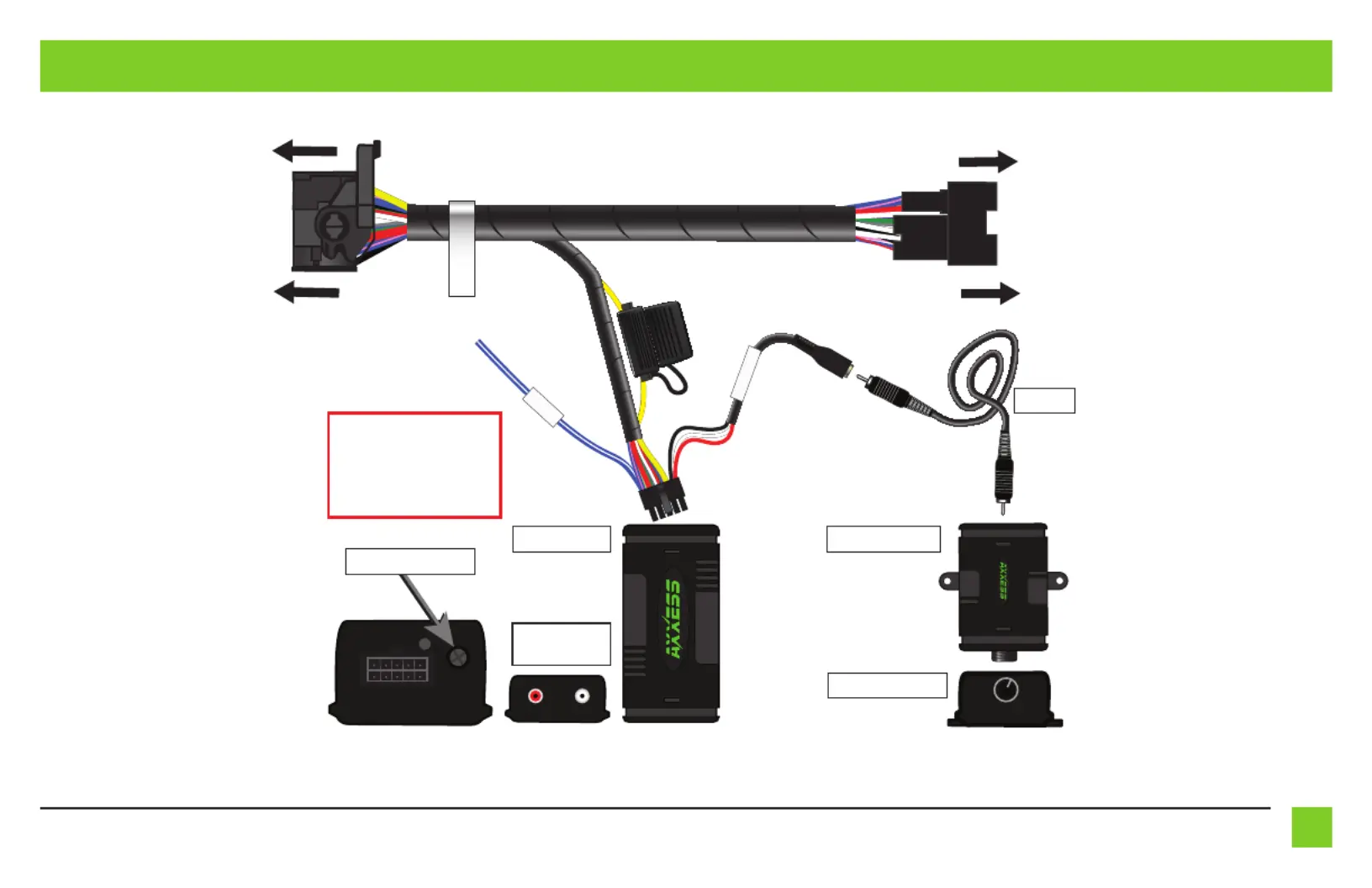

TO RADIO
TO VEHICLE
Remote
Gain Cont.
Line Out Convertor Bass Knob (Top View)
Aux. Cable
Bass Knob (Front View)
NOTE: If using external Bass knob,
make sure your “Output Level
Adjustment” knob is turned all
the way down (turned all the way
to the left).
Output Level Adjustment
LD-AXLOC-GM44
Line Out Convertor
(Front View)
