AXLOC-FD2
I N S T A L L A T I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2022 METRA ELECTRONICS CORPORATION REV. 12/15/22 INSTAXLOC-FD2
ATTENTION: With the key out of the ignition,
disconnect the negative battery terminal
before installing this product. Ensure that all
installation connections, especially the air
bag indicator lights, are plugged in before
reconnecting the battery or cycling the
ignition to test this product.
NOTE: Refer also to the instructions included
with the aftermarket accessory before
installing this device.
TOOLS REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink
• Tape • Wire cutter • Zip-ties
TABLE OF CONTENTS
Applications.............................................................1
Installation ............................................................. 2
Diagram .................................................................. 3
APPLICATIONS

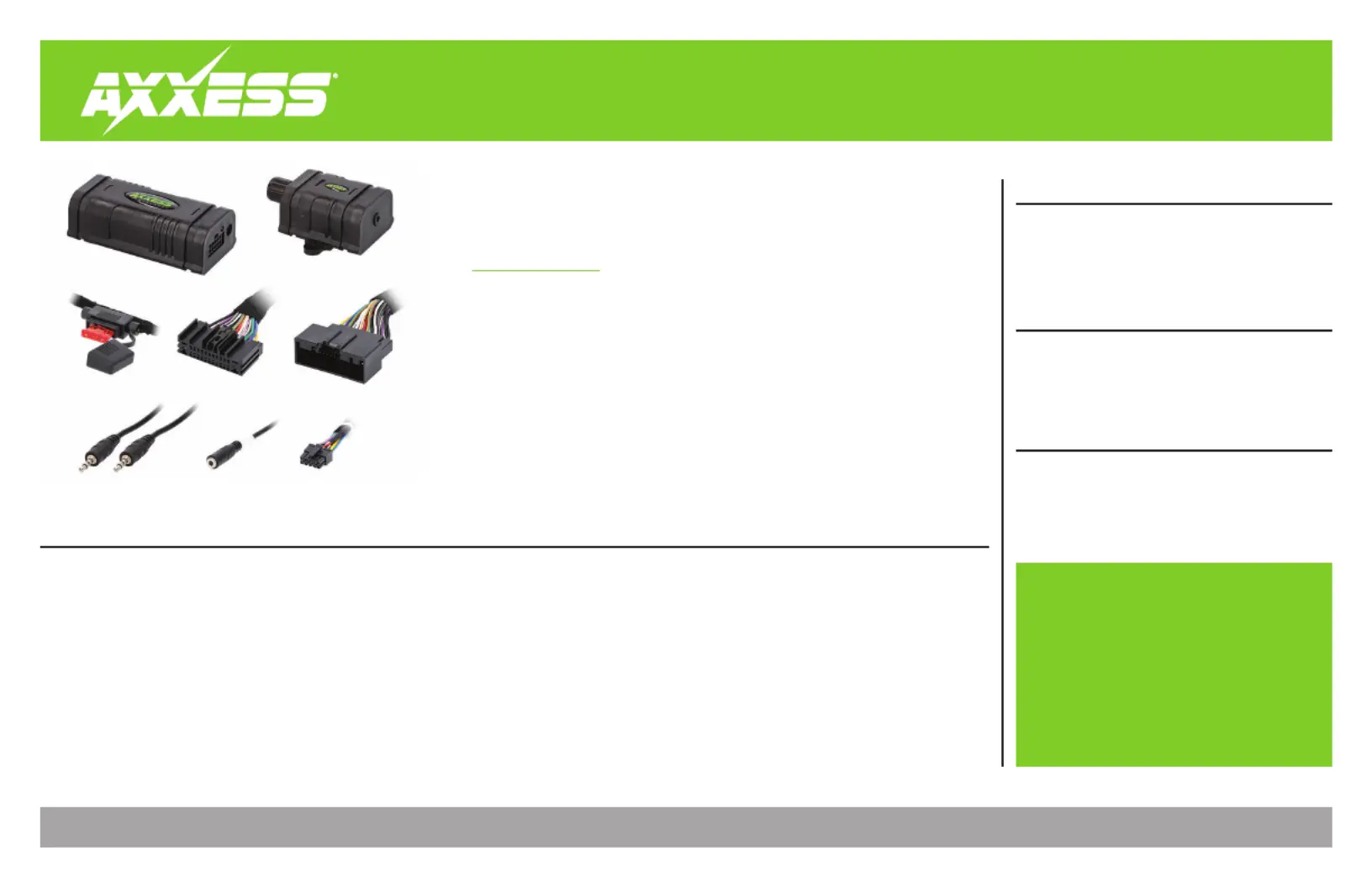

KIT COMPONENTS
• AXLOC-FD2 Wiring Harness
• Gain Controller
• 12v-500mA Remote Wire
• Auxiliary Cable
Visit AxxessInterfaces.com for more detailed information about the product and up-to-date
vehicle specific applications.
• Designed to provide (2) channels of low-level audio output from the factory system.
• Allows for the installation of an amplifier for speakers or subwoofers.
• Gain Controller included to adjust the overall output.
• 12v-500mA remote wire activated with signal sense.
• 55-watts per channel.
• Designed for non-amplified vehicles.
Note: A single pole double throw (SPDT) relay is recommended when installing multiple amplifiers.
Ford LOC (Line Output Converter)
AXLOC-FD2 (for Non-Amplified Vehicles) 2011-Up
For dash disassembly instructions, refer to metraonline.com. Enter the year, make, and model of the vehicle in the for .Vehicle Fit Guide Radio Install Kits
Ford
Edge 2011-2020
Escape 2013-2019
Explorer 2011-2019
F-150 2013-2020
F250/350/450/550 2017-2019
Fiesta 2011-Up*
Focus 2012-2018
Fusion 2013-2019
Mustang 2015-2020
Ranger 2019-2020
Transit 150/250/350 2015-2019
Transit Connect 2014-2018
2
INSTALLATION
1.
Disconnect the harness from the factory
tuner and install the AXLOC-FD2 harness
provided with this kit.
2. Mount the gain controller in a suitable
location, and connect the auxiliary cable
to the , then to the Gain BASS KNOB
Connector of the AXLOC harness.
3.
Install the aftermarket amplifier and
run an RCA pair (sold separately) to
the line converter.
4. Connect the remote wire, plug in the
device and secure all connections prior
to testing.
NOTE: If the vehicle is equipped with active
noise cancellation microphones (ANC), it is
recommended that they are disabled to prevent
potential noise when installing subwoofers.
3
REV. 12/15/22 INSTAXLOC-FD2

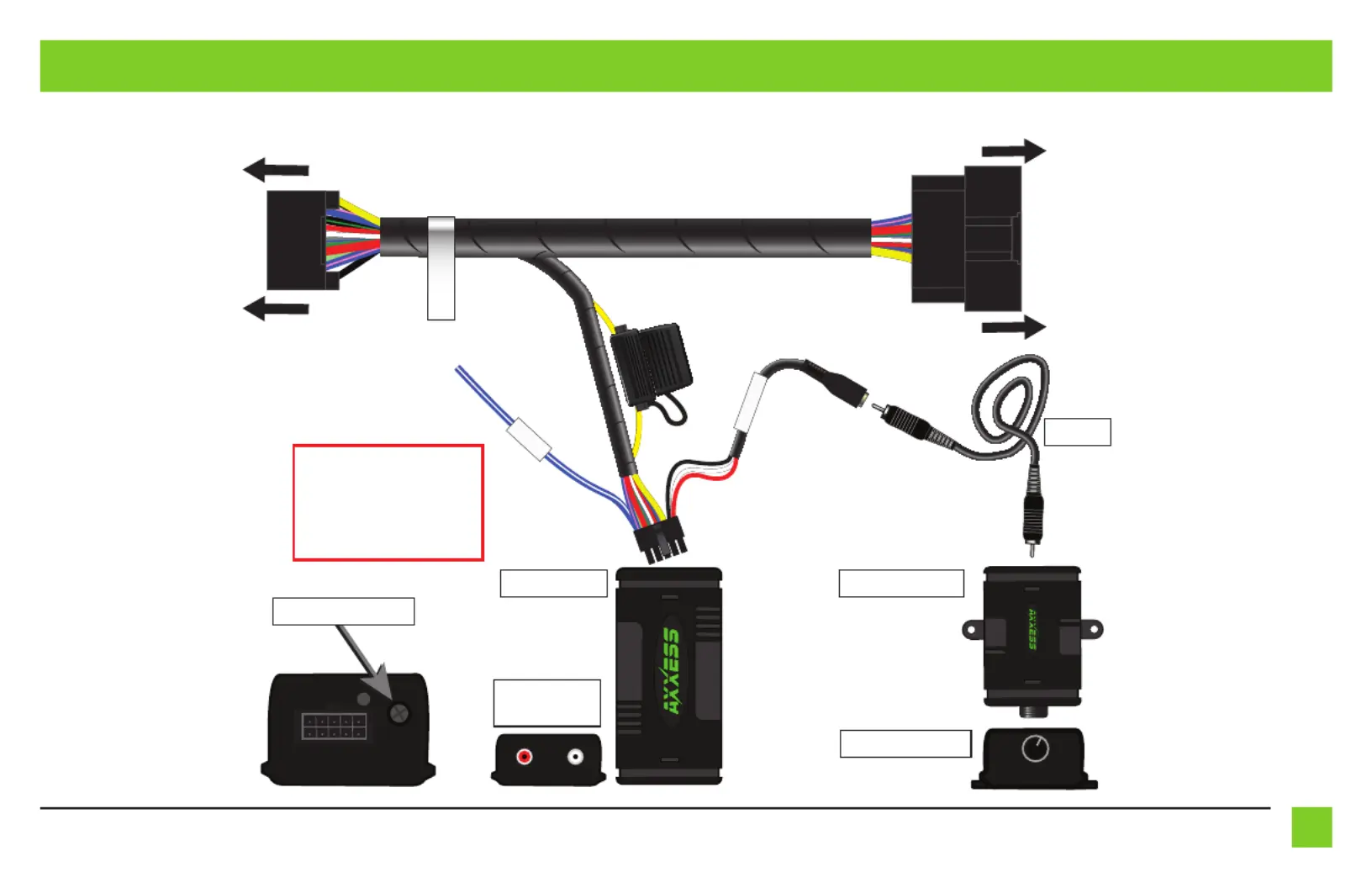

DIAGRAM
LD-AXLOC-FD2
TO RADIO TO VEHICLE
Remote
Gain Cont.
Line Out Convertor Bass Knob (Top View)
Aux. Cable
Bass Knob (Front View)
Output Level Adjustment
NOTE: If using external Bass knob,
make sure yourOutput Level
Adjustment” knob is turned all
the way down (turned all the way
to the left).
Line Out Convertor
(Front View)
