AXLOC-CH5
I N S TA L L AT I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2024 METRA ELECTRONICS CORPORATION REV. 6/28/24 INSTAXLOC-CH5
ATTENTION: With the key out of the
ignition, disconnect the negative battery
terminal before installing this product.
Ensure that all installation connections,
especially the air bag indicator lights, are
plugged in before reconnecting the battery
or cycling the ignition to test this product.
NOTE: Refer also to the instructions included
with the aftermarket accessory before
installing this device.
TOOLS REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink
• Tape • Wire cutter • Zip-ties
TABLE OF CONTENTS
Applications 1 ............................................................
Installation 2 .............................................................
Connections: LD-AXLOC-CH5 3 .................................
Chrysler LOC (Line Output Converter)
AXLOC-CH5
(for Non-Amplified Vehicles)
2013-
Up
APPLICATIONS
Chrysler
200 2015-2017 ..................................
Pacifica 2017-2020 ...........................
Dodge
Dart 2011-2014 ..................................
Durango 2011-2020 ..........................
1500, 2500, 3500 2013-Up ...............
Fiat
500 2016-2019 ..................................
500L 2014-2020 ...............................
500X 2016-2021 ................................
Jeep
Cherokee............................2013-Up
Compass 2017-2023 .........................
Renegade 2015-2023 .......................
Wrangler (JL) 2018.5-Up ................
Wrangler (4XE) 2021-2022 ..............
Ram
Chassis Cab
2500/3500/4500/5500
....2013-Up
Promaster
1500/2500/3500 2014-2023 ........
Promaster City 2015-2021 ...............
Visit for more detailed information about the product and up-to-date vehicle specific applicationsAxxessInterfaces.com

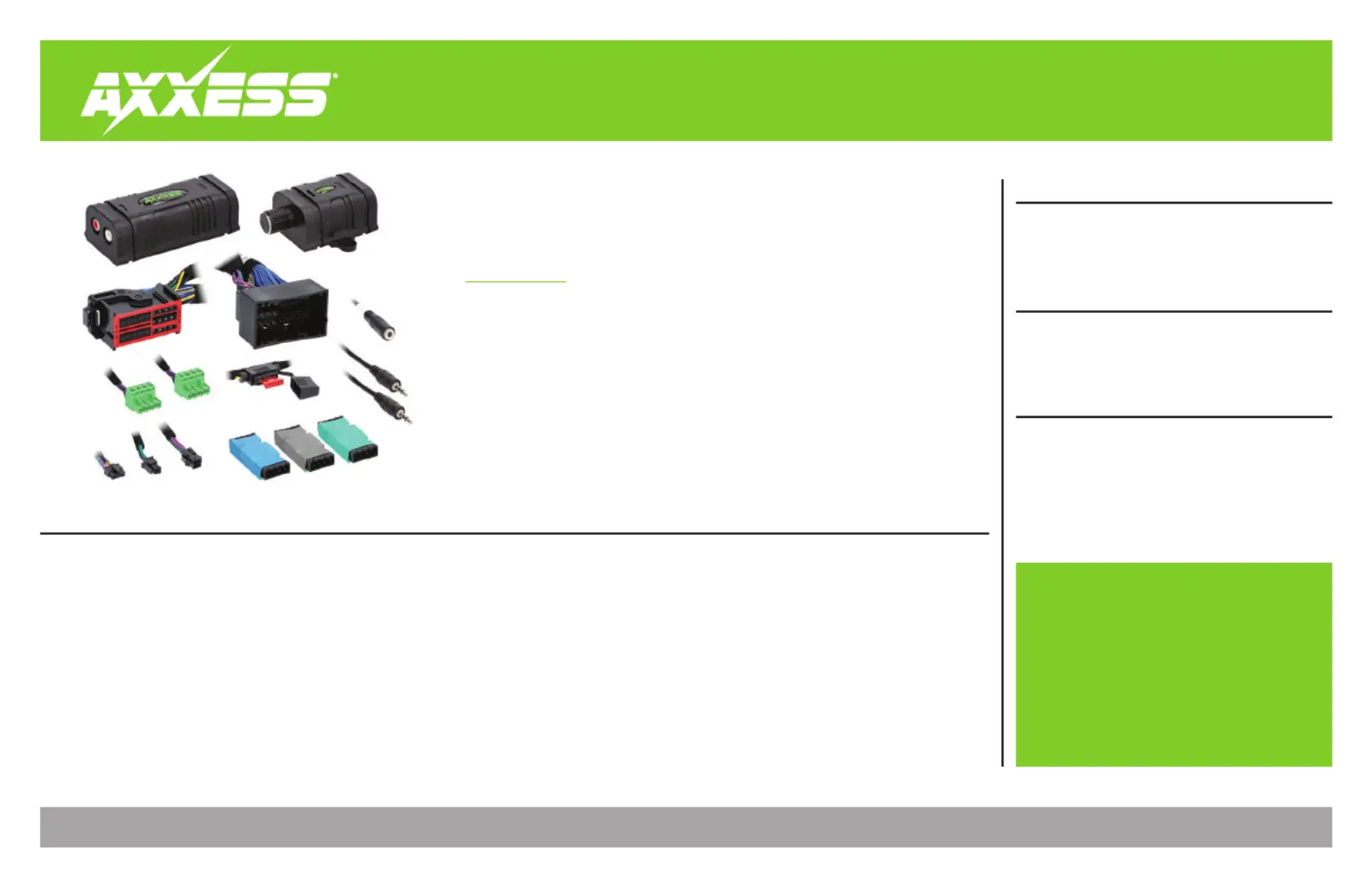

KIT COMPONENTS
For dash disassembly instructions, refer to . Enter the year, make, and model of the vehicle in the for .metraonline.com Vehicle Fit Guide Radio Install Kits
•
Designed to provide (2) channels of low-level audio output from the factory system.
• Allows for the installation of an amplifier for speakers or subwoofers.
• Gain Controller included to adjust the overall output. (Optional)
• 12v-500mA remote wire activated with signal sense.
• 55-watts per channel
• Designed for non-amplified vehicles.
Note: A single pole double throw (SPDT) relay is recommended when installing multiple amplifiers.
• AXLOC-CH5 Wiring Harness
• Gain Controller
• 12v-500mA Remote Wire
• Auxiliary Cable
• Load Resistors: RPAD-20, RPAD-39, RPAD-60
2
INSTALLATION
1. Disconnect the harness from the factory tuner and
install the provided with this kit.AXLOC-CH5 harness
2. Mount the gain controller in a suitable location, and
connect the auxiliary cable to the , then to BASS KNOB
the Gain Connector of the AXLOC harness.
3. Install the aftermarket amplifier and run an RCA pair
(sold separately) to the line converter.
4. Connect the remote wire, plug in the device and secure
all connections prior to testing.
5. Non-amplified vehicles will require a load resistor to
connect to the Green connectors. Refer to load resistor
value chart.
NOTE: If the vehicle is equipped with active noise cancellation
microphones (ANC), it is recommended that they are disabled to
prevent potential noise when installing subwoofers.
LOAD RESISTOR VALUE CHART
Gray RPAD-20
Blue RPAD-39
Green RPAD-60
3
REV. 6/28/24 INSTAXLOC-CH5

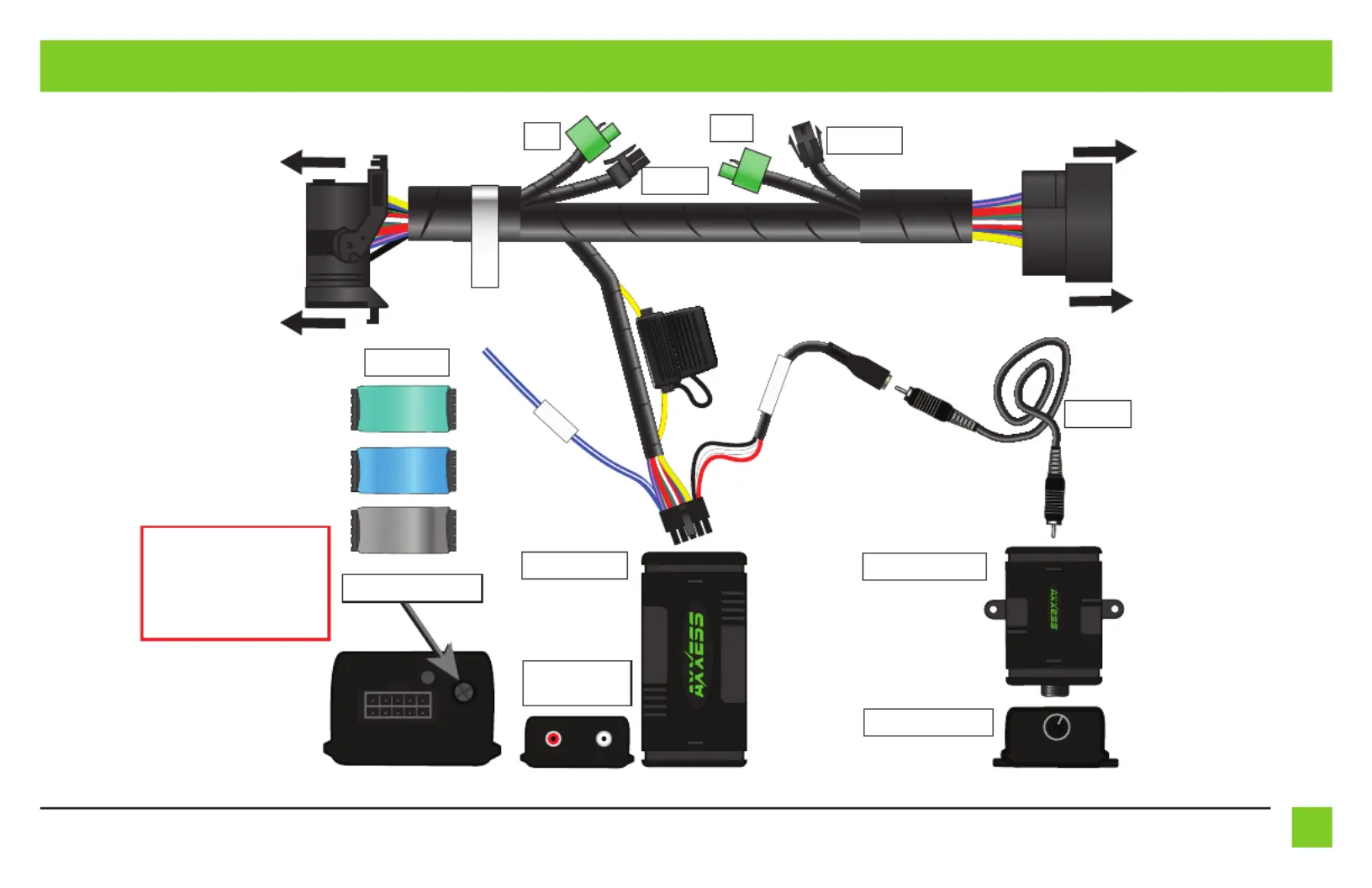

CONNECTIONS: LD-AXLOC-CH5
TO TO RADIO VEHICLE
Remote
Gain Cont.
Line Out Convertor Bass Knob (Top View)
Aux. Cable
Bass Knob (Front View)
Load Resistors
4-pin Female
4-pin Male
Input Output
RPAD-20
RPAD-39
RPAD-60
Line Out Convertor
(Front View)
LD-AXLOC-CH5
NOTE: If using external Bass knob,
make sure your “Output Level
Adjustment” knob is turned all
the way down (turned all the way
to the left).
Output Level Adjustment
