AXLOC-CH3
I N S TA L L AT I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2022 METRA ELECTRONICS CORPORATION REV. 12/15/22 INSTAXLOC-CH3
ATTENTION: With the key out of the ignition,
disconnect the negative battery terminal
before installing this product. Ensure that all
installation connections, especially the air
bag indicator lights, are plugged in before
reconnecting the battery or cycling the
ignition to test this product.
NOTE: Refer also to the instructions included
with the aftermarket accessory before
installing this device.
TOOLS REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink
• Tape • Wire cutter • Zip-ties
TABLE OF CONTENTS
Applications.............................................................1
Installation ............................................................. 2
Diagram .................................................................. 3
Chrysler LOC (Line Output Converter)
AXLOC-CH3
(for Non-Amplified Vehicles)
2011-2020
APPLICATIONS
Chrysler
300/300C 2011-2014
Dodge
Charger 2011-2014
Journey 2011-2020
Visit AxxessInterfaces.com for more detailed information about the product and up-to-date
vehicle specific applications

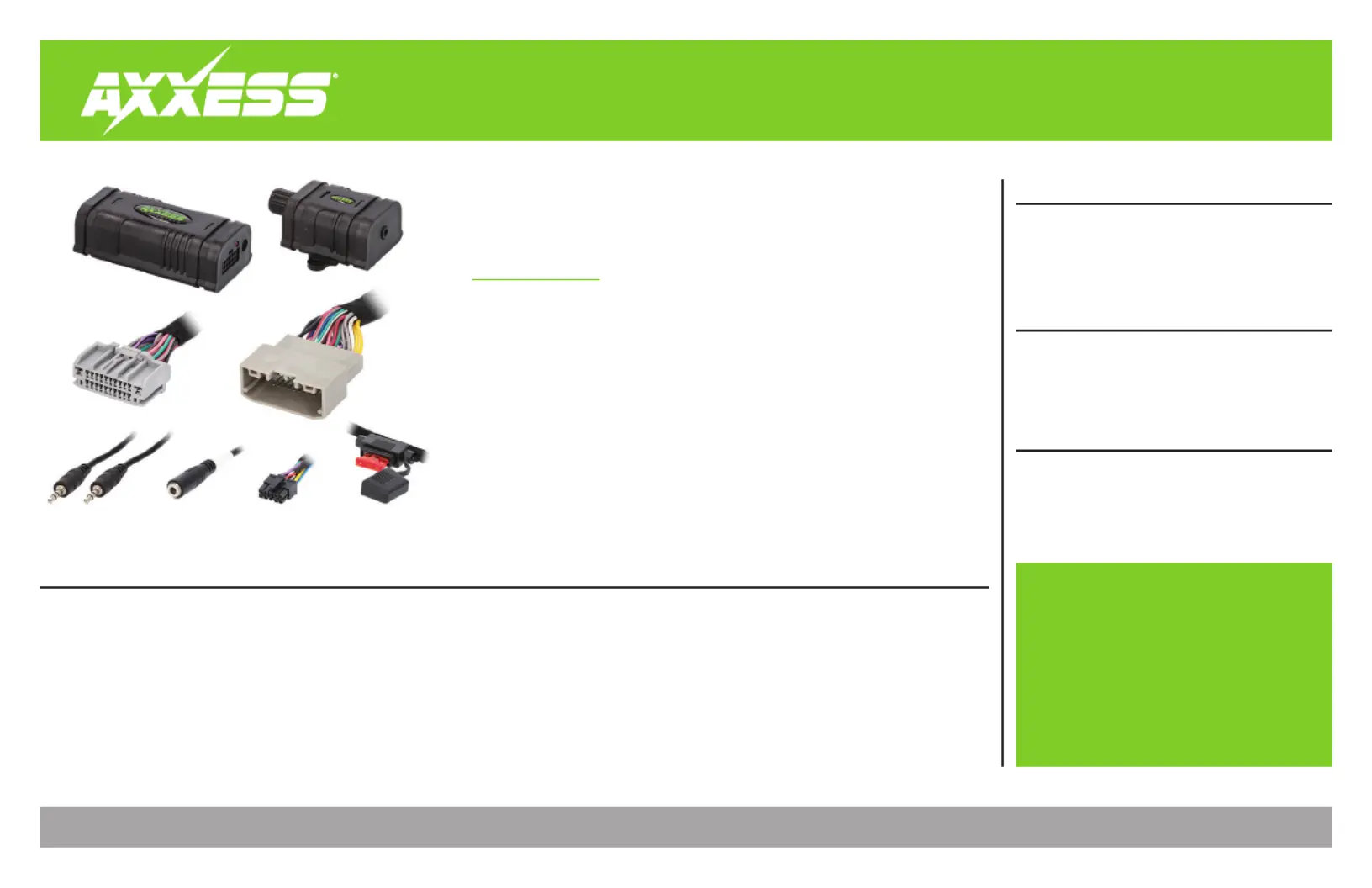

KIT COMPONENTS
• AXLOC-CH3 Wiring Harness
• Gain Controller
• 12v-500mA Remote Wire
• Auxiliary Cable
For dash disassembly instructions, refer to metraonline.com. Enter the year, make, and model of the vehicle in the Vehicle Fit Guide Radio Install Kits for .
• Designed to provide (2) channels of low-level audio output from the factory system.
• Allows for the installation of an amplifier for speakers or subwoofers.
• Gain Controller included to adjust the overall output.
• 12v-500mA remote wire activated with signal sense.
• 55-watts per channel.
• Designed for non-amplified vehicles.
Note: A single pole double throw (SPDT) relay is recommended when installing multiple amplifiers.
2
INSTALLATION
1.
Disconnect the harness from the factory
tuner and install the AXLOC-CH3 harness
provided with this kit.
2. Mount the gain controller in a suitable
location, and connect the auxiliary cable
to the , then to the Gain BASS KNOB
Connector of the AXLOC harness.
3.
Install the aftermarket amplifier and
run an RCA pair (sold separately) to
the line converter.
4. Connect the remote wire, plug in the
device and secure all connections prior
to testing.
NOTE: If the vehicle is equipped with active
noise cancellation microphones (ANC), it is
recommended that they are disabled to prevent
potential noise when installing subwoofers.
3
REV. 12/15/22 INSTAXLOC-CH3

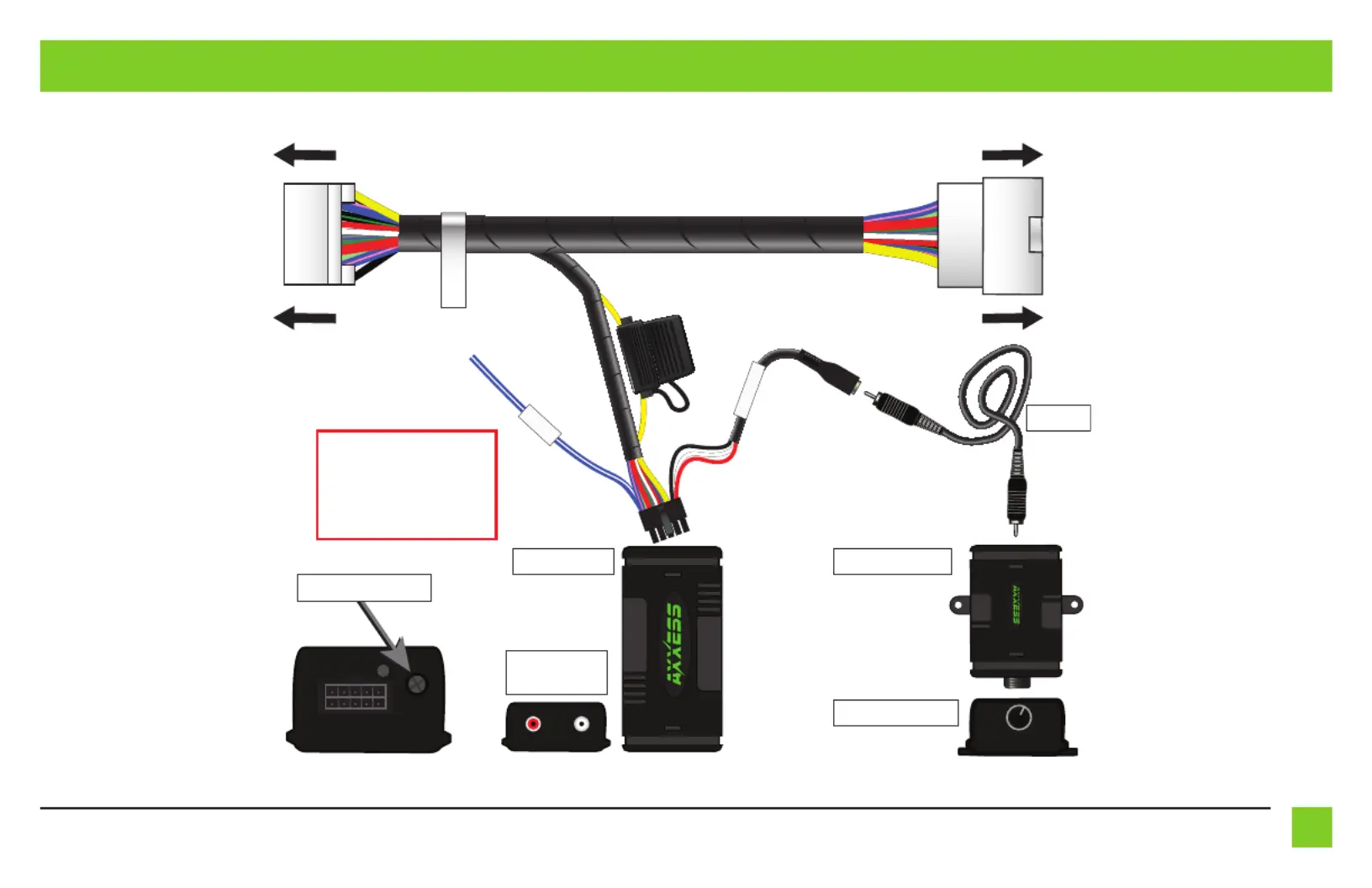

DIAGRAM
TO RADIO TO VEHICLE
Remote
Gain Cont.
Line Out Convertor Bass Knob (Top View)
Aux. Cable
Bass Knob (Front View)
LD-AXLOC-CH3
Line Out Convertor
(Front View)
Output Level Adjustment
NOTE: If using external Bass knob,
make sure yourOutput Level
Adjustment” knob is turned all
the way down (turned all the way
to the left).
