AXLOC-BM1

I N S T A L L A T I O N I N S T R U C T I O N S

ATTENTION: With the key out of the ignition,

disconnect the negative battery terminal

before installing this product. Ensure that all

installation connections, especially the air

bag indicator lights, are plugged in before

reconnecting the battery or cycling the

ignition to test this product.

NOTE: Refer also to the instructions included

with the aftermarket accessory before

installing this device.

TOOLS REQUIRED

• Crimping tool and connectors, or solder gun,

solder, and heat shrink

• Tape • Wire cutter • Zip-ties

TABLE OF CONTENTS

Applications.............................................................1

Installation ............................................................. 2

Diagram .................................................................. 3

APPLICATIONS

BMW

3-Series 2002-2006

5-Series 2001-2003

M3 2002-2006

X3 2004-2010

X5 2001-2006

Z4 2003-2008

Mini

Clubman 2008-2014

Convertible 2009-2015

Coupe 2012-2015

Hatchback 2007-2013

Roadster 2012-2015

Volkswagon

Beetle 2012-2015

CC 2009-2017

EOS 2007-2016

Golf 2002-2014

GTI 2006-2014

Jetta 2002-2015

Jetta Sportwagon 2010-2014

Passat 2002-2015

R32 2007-2008

Tiguan 2009-2015

Toureg 2004-2010

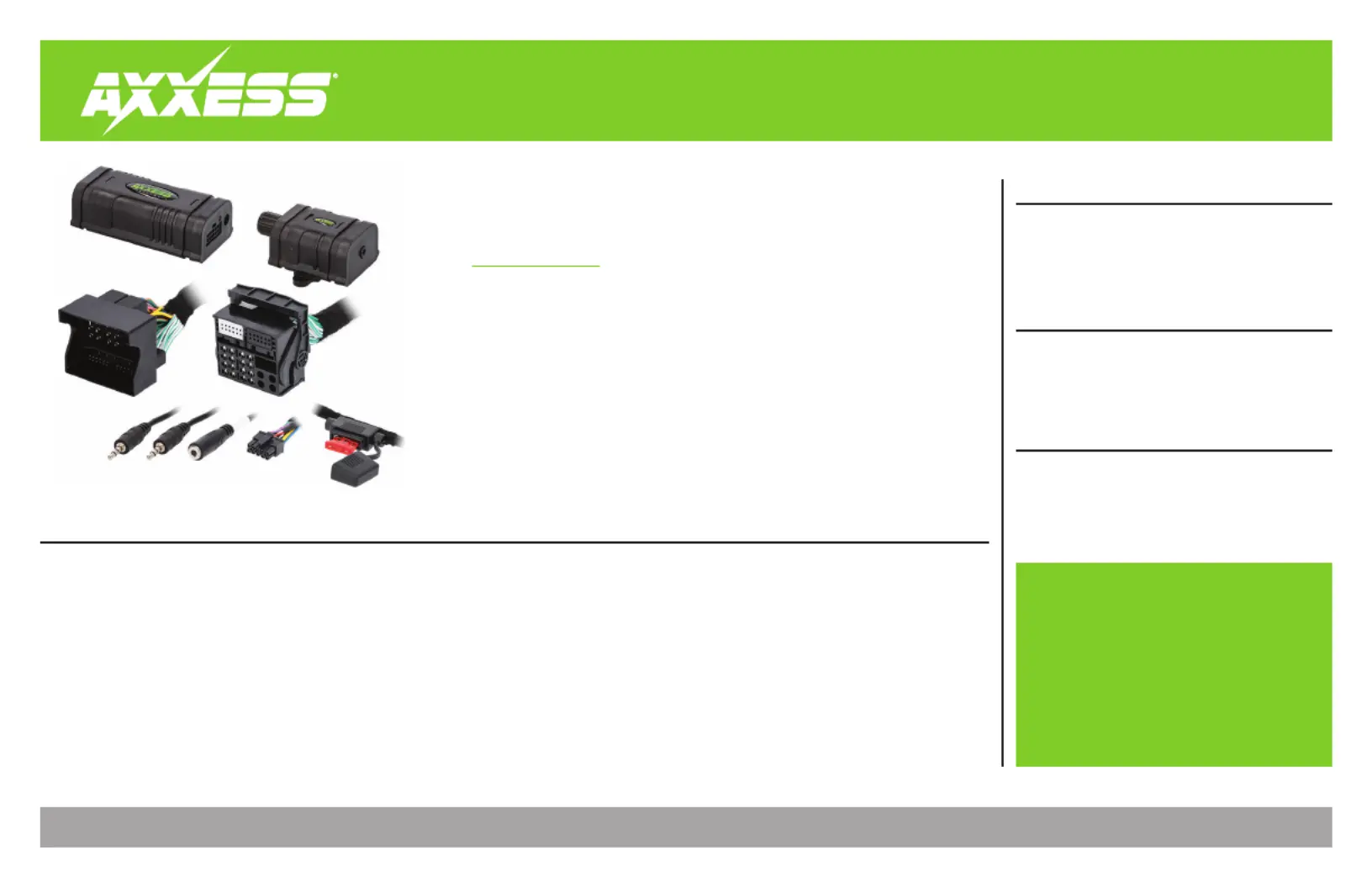

KIT COMPONENTS

• AXLOC-BM1 Wiring Harness

• Gain Controller

• 12v-500mA Remote Wire

• Auxiliary Cable

Visit AxxessInterfaces.com for more detailed information about the product and up-to-date

vehicle speciﬁc applications.

• Designed to provide (2) channels of low-level audio output from the factory system.

• Allows for the installation of an ampliﬁer for speakers or subwoofers.

• Gain Controller included to adjust the overall output.

• 12v-500mA remote wire activated with signal sense.

• 55-watts per channel.

• Designed for non-ampliﬁed vehicles.

Note: A single pole double throw (SPDT) relay is recommended when installing multiple ampliﬁers.

BMW/MINI/VW LOC (Line Output Converter)

AXLOC-BM1 (for Non-Ampliﬁed Vehicles) 2001-2017

For dash disassembly instructions, refer to metraonline.com. Enter the year, make, and model of the vehicle in the for .Vehicle Fit Guide Radio Install Kits
