AXi-TL10-R INSTALLATION MANUAL
Tech Support: 844-AXX-ESSI WWW.AXXESSINTERFACES.COM
AXi-RGB1 AXi-RGB2 AXi-RGB3
PLUG & PLAY WIRING HARNESS COMPATIBLE WITH
Rev. 4.0 081915
PLEASE REVIEW THIS INSTALLATION MANUAL
CAREFULLY BEFORE BEGINNING ANY WORK
2
Table Of Contents
………………………………….……….
IMPORTANT
IMPORTANT
IMPORTANT
IMPORTANT IMPORTANT WARNING
WARNING
WARNING
WARNINGWARNING
This product includes instructions for installation which must be carefully
followed. The instructions are worded in such a manner to assume that the
installer is capable of completing these type of electronic installations. If you
are unclear as to what you are instructed to do or believe that you do not
understand the instructions so as to properly and safely complete the
installation you should consult a technician who does have this knowledge and
understanding.
Failure to follow these instructions carefully and to install the interface as
described could cause harm to the vehicle or to safety systems on the vehicle.
Interference with certain safety systems could cause harm to persons as well.
If you have any questions in this regard please call the Metra Help line at
1-844-299-3774 and for ordering questions call Metra at 1-800-221-0932.
COMPATIBLE VEHICLES……………………….…….…....3
WIRING LOCATION……………………….….….…......4-5
VSS WIRE……………………….…….…........................6
RSE WIRING…..……………………….…….…...............7
PRECAUTIONS…….................................................8
WIRING CONNECTIONS........................................9
PLUG AND PLAY HARNESS INSTALLATION……....10
TESTING OPERATION………………………….……...….11
VEHICLE REASSEMBLY CHECKLIST…………...….....12
3
.

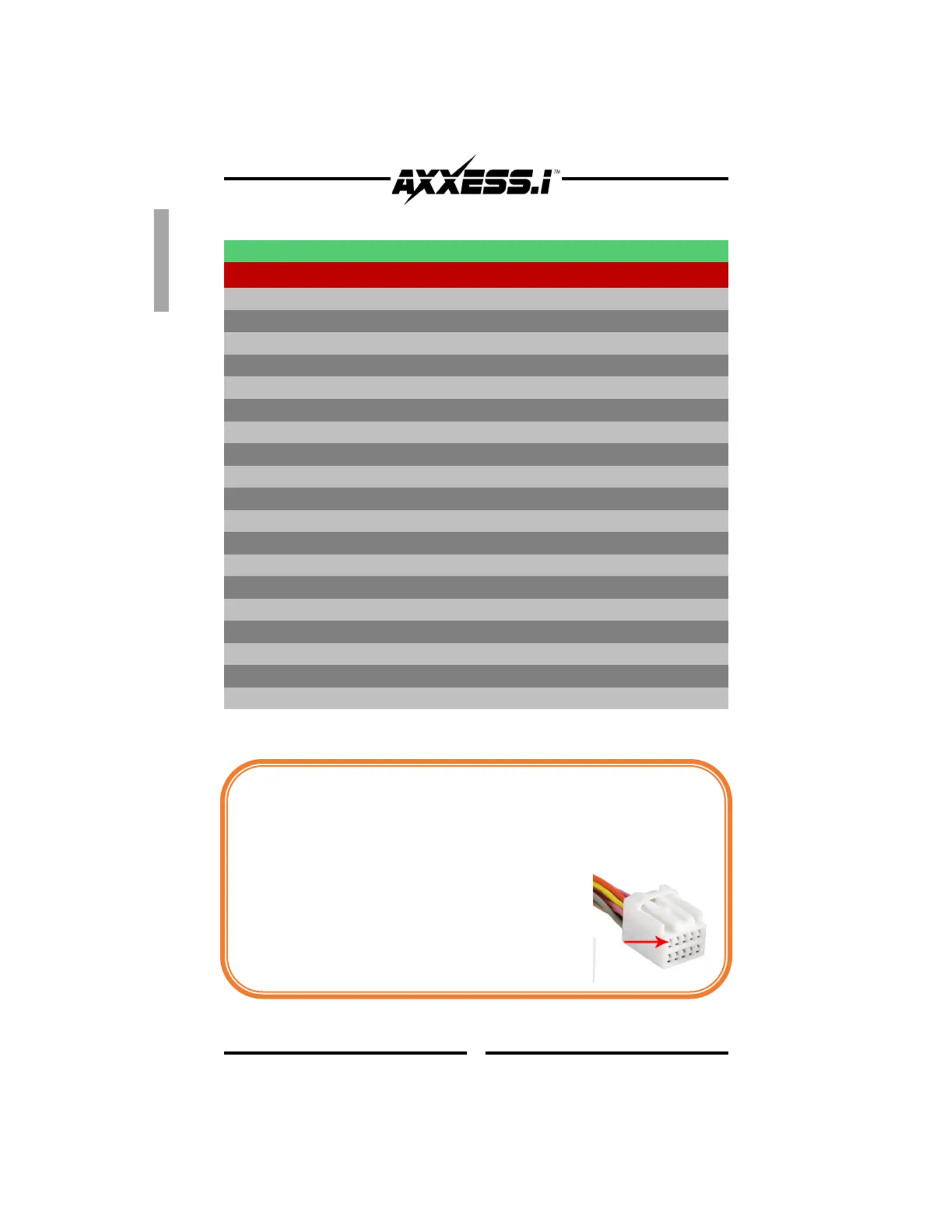

COMPATIBLE VEHICLES
MAKE MODEL YEAR
LEXUS - ES 2002 2003
LEXUS - GS 2001 2005
LEXUS - GX 2003 2006
LEXUS - IS 2001 2005
LEXUS - LS 2001 2006
LEXUS - LX 1998 2002
LEXUS - LX 2003 2007
LEXUS - RX 1999 2003
LEXUS - RX 2004 2006
LEXUS - SC 2002 2009
TOYOTA 4RUNNER - 2003 2004
TOYOTA AVALON - 2003 2010
TOYOTA CAMRY - 2002 2003
TOYOTA HIGHLANDER - 2001 2007
TOYOTA LAND CRUISER - 1998 2002
TOYOTA LAND CRUISER - 2003 2007
TOYOTA PRIUS - 2001 2003
TOYOTA PRIUS - 2004 2005
TOYOTA SIENNA 2004
IMPORTANT NO
IMPORTANT NO
IMPORTANT NO
IMPORTANT NOIMPORTANT NOTICE
TICE
TICE
TICE TICE
IF YOU SEE THE NAVIGATION IMAGE GHOSTING ON THE SCREEN WHEN ONE
OF THE VIDEO INPUTS IS ACTIVATED.
EXAMPLE OF GHOSTING: VIDEO 1 INPUT IS ACTIVATED AND YOU SEE THE
FACTORY IMAGE GHOSTING IN THE BACKGROUND.
CUT PIN 6 ON MALE CONNECTOR OF AXi-TL10-R, IT IS
LOCATED TO THE RIGHT OF YELLOW WIRE IF LOOKING
AT 10 PIN MALE CONNECTOR ON THE WIRE SIDE.
