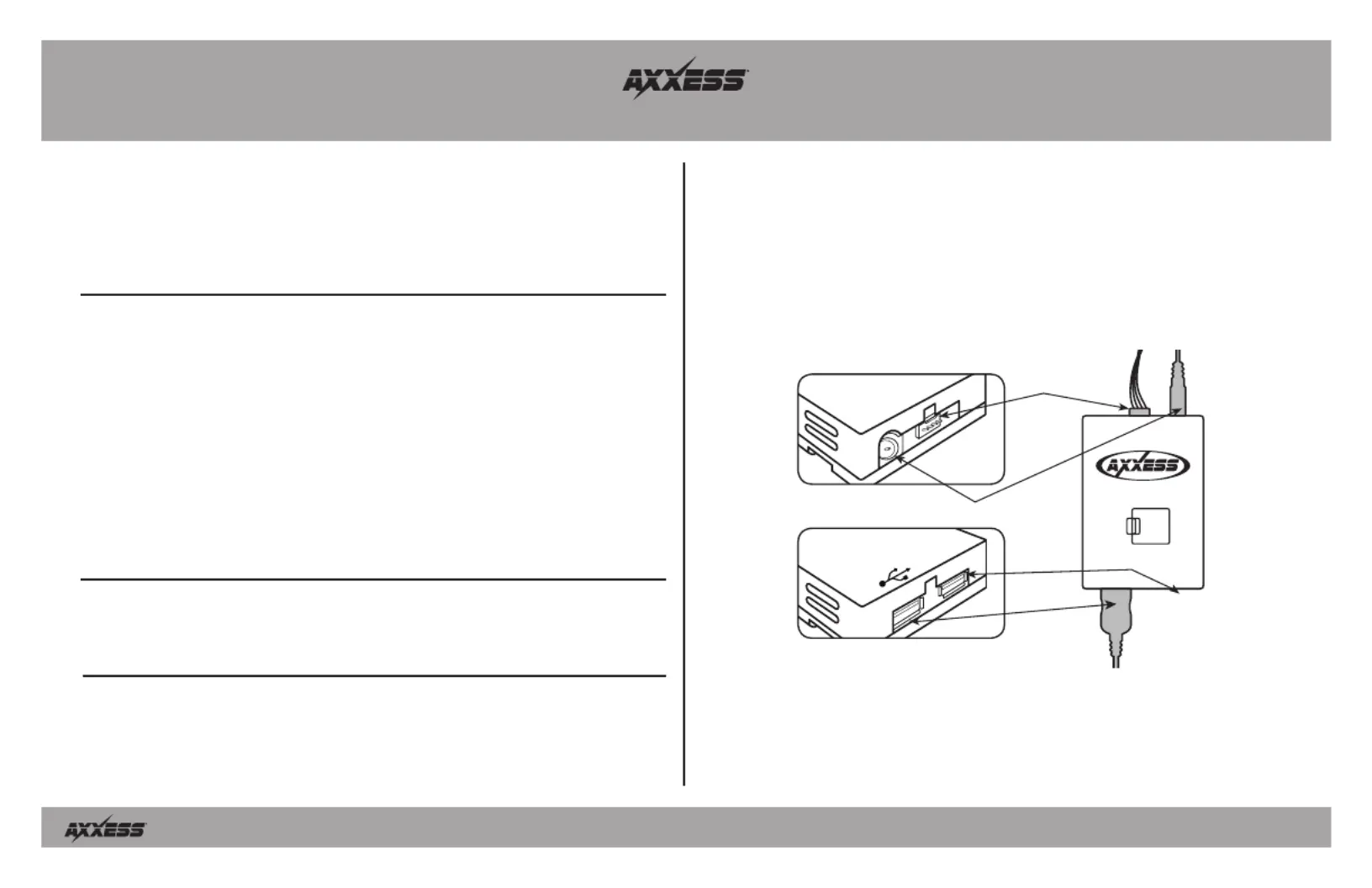

Installation instructions for AXHUB-1
REV. 2/3/2020 INSTAXHUB-1
axxessinterfaces.com • metraonline.com © COPYRIGHT 2020 METRA ELECTRONICS CORPORATION
Axxess Integrate
CAUTION!
Metra recommends disconnecting the negative battery terminal before beginning any instal-
lation, unless the vehicle manufacturer recommends against so. Please check with your local Dealership
for more information. All accessories, switches, climate controls panels, and especially air bag indicator
lights must be connected before reconnecting the battery or cycling the ignition. Also, do not remove the
factory radio with the key in the on position, or the vehicle running. It would be best to remove the key
from the ignition and then wait a few seconds before removing the factory radio.
• Allows the ability to update Axxess interfaces from
most mobile devices
• Allows updates from iOS devices
• Allows updates from Android devices
• Freedom to update without a computer
• Must be connected to either a cellular network,
or Wi-Fi hotspot to update
• Allows changes to be made to the AXSWC (dual assign, force
radio, reassign buttons)
FEATURES
(to be used along with the Axxess Updater app)
APPLICATIONS
• Axxess hub interface • DC power cable with
cigarette lighter adapter • 4-pin to 4-pin Bootloader update cable
• Micro “B” USB update cable
INTERFACE COMPONENTS
• Android mobile devices • iOS mobile devices
Bootloader 4-pin
cable interface
DC car power input
Mobile device
USB input
Micro USB
input
• Connect the DC power cable into
the AXHUB-1 and then into the
vehicles DC plug.
Note: Depending on the vehicle,
the ignition may need to be on to
provide power to the AXHUB-1.
• Connect the USB SYNC cable,
provided with your mobile device, to
the USB port located on the RIGHT
side of the AXHUB-1.
(Continued on the next page)
Installation instructions for AXHUB-1
REV. 2/3/2020 INSTAXHUB-1
axxessinterfaces.com • metraonline.com © COPYRIGHT 2020 METRA ELECTRONICS CORPORATION
Axxess Integrate
IMPORTANT
If you are having difficulties with the installation of this product, please call our Tech
Support line at . Before doing so, look over the instructions a second 1-800-253-TECH
time, and make sure the installation was performed exactly as the instructions are
stated. Please have the vehicle apart and ready
to perform troubleshooting steps before calling.
K PNOWLEDGE IS OWER
Enhance your inst allation and fabrication skills by
enrolling in the most recognized and spected re
mobile elect nics school in our industry.ro
Log onto www.installerinst it ute.com or call
800-354-6782 for mo information and take steps re
toward a bett er tomorrow.
®
Metra recommends MECP
certified technicians
Depending on which Axxess interface you are updating, the correct update cable
will need to be used (both cables are provided).
(A) If updating an interface with a 4-pin Bootloader connector:
Note: Interfaces with the 4-pin Bootloader connector do not need power to the
interface to be updated.
• Connect the 4-pin to 4-pin Bootloader update cable supplied, into the 4-pin
port next to the DC power port.
• Open the application and then press the “Update Firmware” button.
• Connect the opposite end of the Bootloader cable into the interface that is to
be updated. The new software will download to the interface at this time.
(B) If updating an interface with a Micro “B” USB connector:
Note: Interfaces with a Micro “B” USB connector need power to the interface
to be updated.
• Begin by turning the vehicles ignition on, which will then power the interface.
•
Connect the Micro “B” USB update cable supplied, into the interface being updated
.
• Connect the opposite side of the cable into the USB port on the side of LEFT
the AXHUB-1 (port with USB symbol).
• Open the App, and press the “Update Firmware” button. The new software will
download to the interface at this time.
For both applications one of the two situations will occur, depending on your
mobile device: While the interface is updating, either a process indicator bar, or
the app will inform you that the interface is up to date, and then supply with which
firmware it downloaded to your interface. The app will also give you the option to
perform a “Force Update”.
Note: Please note which firmware downloaded to the interface. This will help in
troubleshooting, if need be.
Attention: The AXSWC must first be programmed to the vehicle
before performing this step.
• Apply power to the AXSWC.
• Connect the micro “B” USB update cable supplied, into the AXSWC.
• Connect the opposite side of the cable into the USB port on the side of the LEFT
AXHUB-1 (port with USB symbol).
• From within the Axxess Updater app, press “SWC Settings”.
• Select the preferred feature(s) you would like to have changed, and then press
“Connect to ASWC”. The new features will then download to the AXSWC.
ATTENTION:
Scan here for the App or visit
http://axxessinterfaces.com

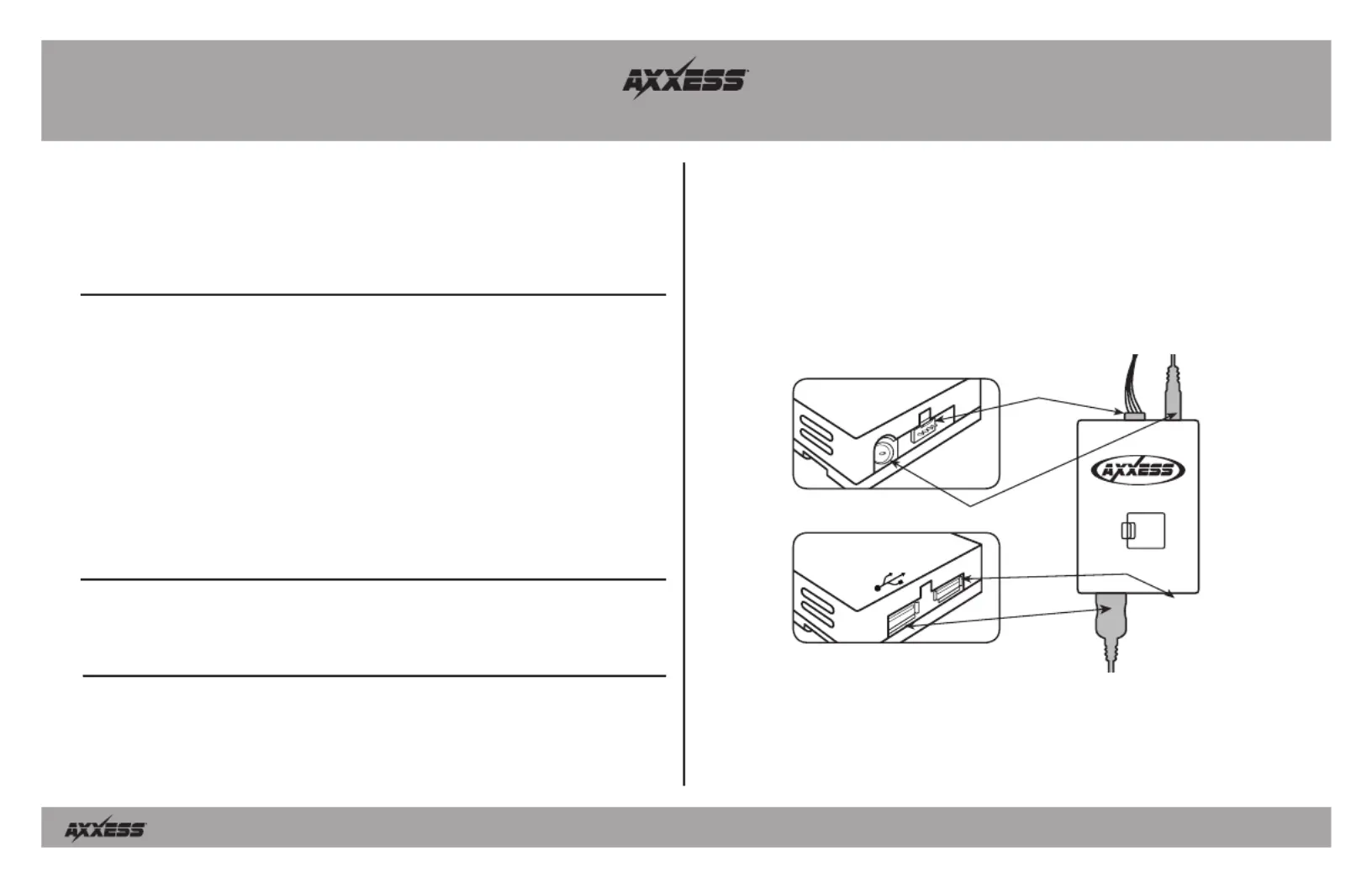

Instrucciones de instalaciĂłn para AXHUB-1
REV. 2/3/2020 INSTAXHUB-1
axxessinterfaces.com • metraonline.com © COPYRIGHT 2020 METRA ELECTRONICS CORPORATION
Axxess Integrate
• Permite actualizar las interfaces Axxess desde la mayoría
de los dispositivos mĂłviles
• Permite actualizaciones desde dispositivos iOS
• Permite actualizaciones desde dispositivos Android
• Libertad para actualizar sin computadora
• Debe estar conectado a una red celular o punto
de acceso Wi-Fi para actualizar
• Permite que se realicen cambios al AXSWC (asignación dual,
forzar radio, reasignar botones)
CARACTERĂŤSTICAS
(Para utilizarse junto con la aplicaciĂłn Axxess Updater)
APLICACIONES
• Interfaz de Central Axxess • Cable de corriente CC con adaptador para
encendedor • Cable de actualización con arranque de 4 pins a 4 pins
• Cable de actualización micro “B” USB
COMPONENTES DE LA INTERFASE
• Dispositivos móviles Android • Dispositivos móviles iOS
Interfaz de cable de ar-
ranque de 4 pins
Entrada de corriente CC del auto
Entrada USB de
dispositivo mĂłvil
Entrada micro
USB
• Conecte el cable de corriente CC al
AXHUB-1 y luego al conector de CC
del vehĂ­culo.
Nota: Dependiendo del vehĂ­culo,
es posible que deba estar sentir
encendida la marcha para
suministrar corriente al AXHUB-1.
• Conecte el cable USB de SYNC
proporcionado con su dispositivo
mĂłvil al puerto USB localizado en la
DERECHO del AXHUB-1.
(Continua en la siguiente pagina)
¡PRECAUCIÓN!
Meta recomienda desconectar la terminal negativa de la baterĂ­a antes de iniciar cualquier in-
stalaciĂłn, a menos que el fabricante del vehĂ­culo recomiende lo contrario. Verifique con su concesionario local si
existe más información. Todos los accesorios, interruptores, paneles de controles de clima y especialmente las lu-
ces del indicador de las bolsas de aire deben estar conectados antes de reconectar la baterĂ­a o ciclar la igniciĂłn.
Además, no quite el radio de fábrica con la llave en la posición de encendido ni con el vehículo funcionando. Sería
mejor retirar la llave de la ignición y esperar unos cuantos segundos antes de quitar el radio de fábrica.
