AXHN-2
I N S T A L L A T I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2023 METRA ELECTRONICS CORPORATION REV. 6/30/23 INSTAXHN-2
Product Info
INTERFACE FEATURES
INTERFACE FEATURES
TOOLS & INSTALLATION ACCESSORIES REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink • Tape • Wire cutter
• Zip ties
TABLE OF CONTENTS
Connections
- For models without a factory amp....................2
- For models with a factory amp 3 .........................
Installation 4 .............................................................
Programming 4 .........................................................
Extra settings 5 .........................................................
Honda LaneWatch Camera Retention
2014-2017
APPLICATIONS
• Provides accessory power (10-amp)
• Provides NAV outputs (parking brake, reverse, speed sense)
• Pre-wired AXSWC harness (AXSWC sold separately)
• Retains the factory backup camera
• Retains the LaneWatch camera
• Retains ability to change factory clock and date*
• Retains the factory AUX-IN jack
• Can be used in non-amplified, or amplified models
• Retains balance and fade
• Micro-B USB updatable

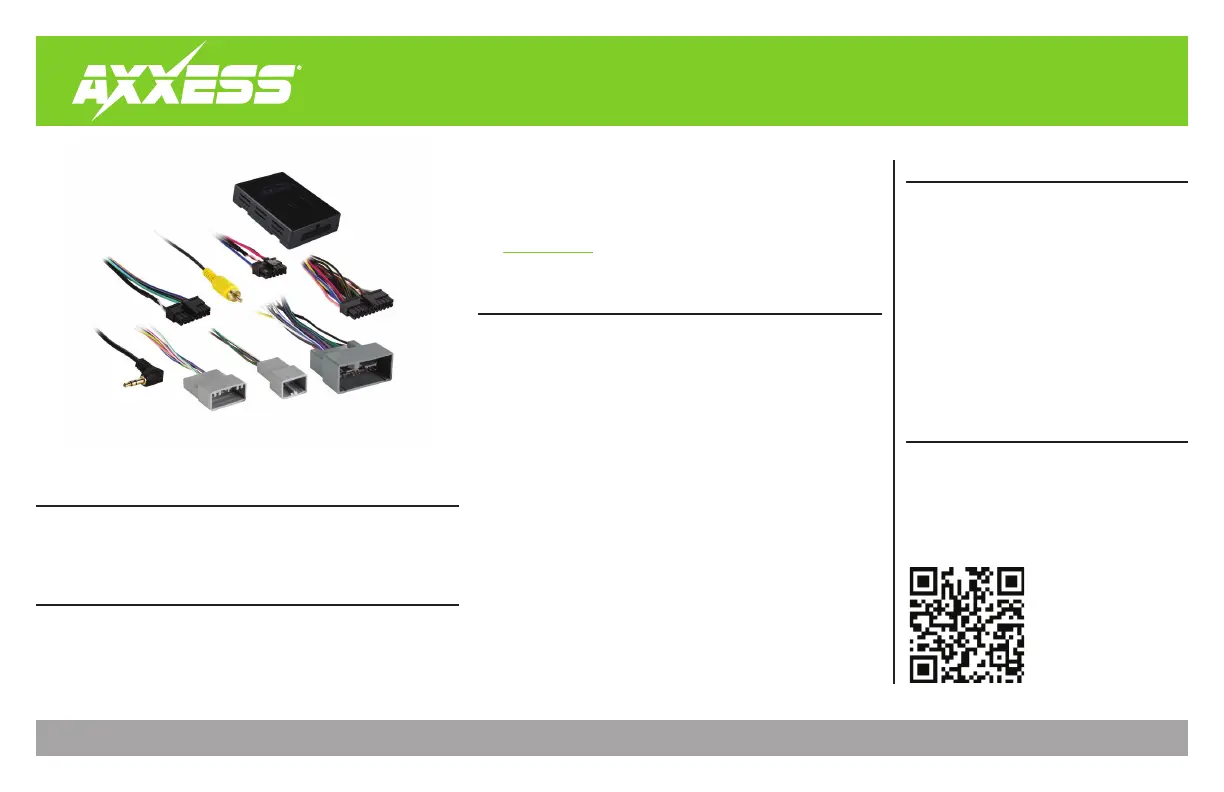

• AXHN-2 interface
• AXHN-2 harness
Honda
Civic 2014-2015 ...................................................................................................
CR-V 2015 ...........................................................................................................
FIT 2015-2017 .....................................................................................................
* Excluding LX and NAV models
Visit
AxxessInterfaces.com
for up-to-date vehicle specific applications.
Visit for more detailed information about the product and MetraOnline.com
up-to-date vehicle specific applications
2
CONNECTIONS
For models
without
a factory amp:
From the AXHN-2 harness to the aftermarket radio
Main harness:
• Connect the wire to the ground wire.Black
• Connect the wire to the battery wire.Yellow
• Connect the wire to the accessory wire.Red
For the following (8) connections, cut off the RCA jacks to expose the speaker wire inside.
• Connect the wire to the left front positive speaker output.White
• Connect the wire to the left front negative speaker output.White/Black
• Connect the wire to the right front positive speaker output.Gray
• Connect the wire to the right front negative speaker output.Gray/Black
• Connect the wire to the left rear positive speaker output.Green
• Connect the wire to the left rear negative speaker output.Green/Black
• Connect the wire to the right rear positive speaker output.Purple
• Connect the wire to the right rear negative speaker output.Purple/Black
16-pin harness:
• Connect the wire to the illumination wire.Orange/White
The following (3) wires are for aftermarket multimedia/navigation radios that require these wires:
• Connect the wire to the parking brake wire (if applicable).Light Green
• Connect the wire to the speed sense wire (if applicable).Blue/Pink
• Connect the wire to the reverse wire (if applicable).Green/Purple
• Connect the RCA jack to the backup camera input.Yellow
This RCA jack is used to retain the backup camera as well as the LaneWatch camera.Note:
• Connect the and RCA jacks to the audio AUX-IN jacks (if applicable).White Red
8-pin harness:
• Disregard the RCA jack, it will not be used in this application. White
12-pin pre-wired AXSWC harness & 3.5mm jack:
• This harness and 3.5mm jack is to be used along with the optional AXSWC (sold separately) to
retain steering wheel audio controls. If the AXSWC is not being used, disregard this harness. If
it will be used, refer to the vehicle specific AXSWC instruction from Axxess Interfaces for radio
connections and programming. Disregard the harness that comes with the AXSWC.
• The Gray/Blue wire will only be used in vehicles equipped with Bluetooth. Connect this wire
to the wire in pin-15 from the 32-pin harness in the factory Bluetooth module.Yellow
Bluetooth module location:
Civic - Behind glovebox
CR-V - In dash, under radio
Continue to Installation
3
REV. 6/30/23 INSTAXHN-2
CONNECTIONS
For models
with
a factory amp:
From the AXHN-2 harness to the aftermarket radio
Main harness:
• Connect the wire to the ground wire.Black
• Connect the wire to the battery wire.Yellow
• Connect the wire to the accessory wire.Red
• Connect the wire to the amp turn-on wire.Blue/White
• Connect the RCA jack to the front left RCA output.White
• Connect the RCA jack to the front right RCA output.Gray
• Connect the RCA jack to the rear left RCA output.Green
• Connect the RCA jack to the rear right RCA output.Purple
16-pin harness:
• Connect the wire to the illumination wire.Orange/White
The following (3) wires are for aftermarket multimedia/navigation radios that require these wires:
• Connect the wire to the parking brake wire (if applicable).Light Green
• Connect the wire to the speed sense wire (if applicable).Blue/Pink
• Connect the wire to the reverse wire (if applicable).Green/Purple
• Connect the RCA jack to the backup camera input.Yellow
This RCA jack is used to retain the backup camera as well as the LaneWatch camera.Note:
• Connect the and RCA jacks to the audio AUX-IN jacks (if applicable).White Red
8-pin harness:
• Connect the RCA jack to the subwoofer output jack.White
12-pin pre-wired AXSWC harness & 3.5mm jack:
• This harness and 3.5mm jack is to be used along with the optional AXSWC (not included) to
retain steering wheel audio controls. If the AXSWC is not being used, disregard this harness.
If it will be used, refer to the vehicle specific AXSWC instruction from Axxess Interfaces for
radio connections and programming. Disregard the harness that comes with the AXSWC.
• The Gray/Blue wire will only be used in vehicles equipped with Bluetooth. Connect this wire
to the wire in pin-15 from the 32-pin harness in the factory Bluetooth module.Yellow
Bluetooth module location:
Civic - Behind glovebox
CR-V - In dash, under radio
Continue to Installation
