CAUTION!

All accessories, switches, climate

controls panels, and especially air bag indicator

lights must be connected before cycling the

ignition. Also, do not remove the factory radio

with the key in the on position, or while the

vehicle is running.

AXHN-1

I N S TA L L A T I O N I N S T R U C T I O N S

INTERFACE FEATURES

INTERFACE COMPONENTS

TOOLS REQUIRED

• Crimping tool and connectors, or solder gun,

solder, and heat shrink • Small ﬂat-blade

screwdriver • Tape • Wire cutter • Zip ties

TABLE OF CONTENTS

Connections to be made ....................................... 2

Installing the AXHN-1 ............................................. 3

Programming the AXHN-1 .....................................3

Setting the factory clock ....................................... 3

Troubleshooting .....................................................3

Honda Clock Retention 2012-2014

APPLICATIONS

• Provides accessory power (12-volt 10-amp)

• Can be used in non-ampliﬁed, or ampliﬁed models

• Provides NAV outputs (parking brake, reverse, speed sense)

• AXSWC harness included (AXSWC sold separately)

• Retains balance and fade

• Retains the ability to set the factory clock

• Retains the factory AUX-IN jack

• Micro-B USB updatable

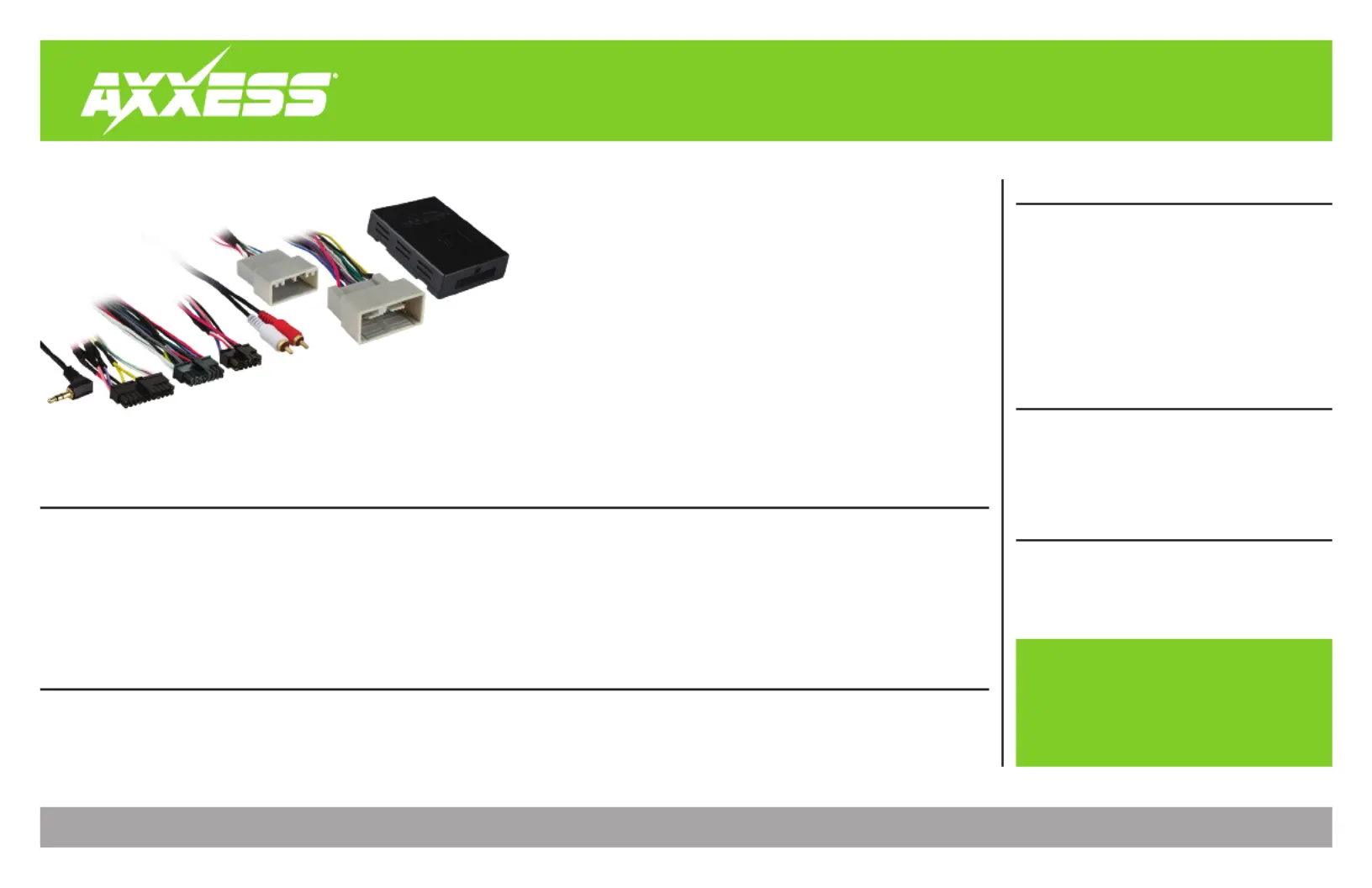

• AXHN-1 interface • AXHN-1 harness

• 8-pin subwoofer harness

• 16-pin harness with stripped leads

HONDA

Civic * (without NAV) 2013 CR-V (without NAV) 2012-2014

* All trims except LX

CONNECTIONS TO BE MADE

From the 16-pin harness with stripped leads to the aftermarket radio:

• Connect the wire to the accessory wire.Red

• Connect the Orange/White wire to the illumination wire. If the aftermarket radio does not

have an illumination wire, tape it off and disregard it.

• Tape off and disregard the , Gray Gray/Black White White/Black Brown, , , and wires, they

will not be used in this application.

The following (3) wires are only for multimedia/navigation radios that require these wires.

• Connect the wire to the parking brake wire (if applicable).Light Green

• Connect the wire to the VSS or speed sense wire (if applicable).Blue/Pink

• Connect the wire to the reverse wire (if applicable).Green/Purple

From the AXHN-1 harness to the aftermarket radio:

• Connect the wire to the ground wire.Black

• Connect the Yellow wire to the battery wire.

• If the vehicle is equipped with a factory ampliﬁer, connect the Blue/White wire to amp

turn-on wire.

• If the vehicle is equipped with a factory AUX-IN jack and desired to be retained, connect the

Red & RCA jacks to the AUX-IN jack.White

For the following (8) wires, if the vehicle does not have a factory ampliﬁer, cut off the RCA jacks

to expose the speaker wires.

• Connect the wire to the left front positive speaker output.White

• Connect the wire to the left front negative speaker output.White/Black

• Connect the wire to the right front positive speaker output.Gray

• Connect the Gray/Black wire to the right front negative speaker output.

• Connect the wire to the left rear positive speaker output.Green

• Connect the wire to the left rear negative speaker output.Green/Black

• Connect the wire to the right rear positive speaker output.Purple

• Connect the wire to the right rear negative speaker output.Purple/Black

From the 8-pin subwoofer harness to the aftermarket radio (ampliﬁed models only):

• Connect the RCA to the subwoofer output. White

12-pin pre-wired AXSWC harness:

• This harness is to be used along with the optional AXSWC (not included) to retain steering

wheel audio controls. If the AXSWC is not being used, disregard this harness. If it will be

used, please refer to the AXSWC instructions for radio connections and programming.

Disregard the harness that comes with the AXSWC.

• For the CR-V 2014: If the vehicle is equipped with Bluetooth controls, and desired to be

retained, connect the Gray/Blue wire to the Yellow wire (pin-15) in the 32-pin harness at the

factory Bluetooth module located in the center of the dash, below the radio.

REV. 1/22/2020 INSTAXHN-1

With the key in the off position:

• Connect the 16-pin harness with stripped leads, and the AXHN-1 harness, into the interface.

• If an AXSWC (sold separately) will be used, do not connect it until the AXHN-1 is programmed

and fully functional.

Attention! Do not connect the AXHN-1 harness to the wiring harness in the vehicle just yet.

For the steps below, the L.E.D. located inside the interface can only be seen while active. The

interface does not need to be opened to see the L.E.D.

1. Start the vehicle.

2. Connect the AXHN-1 harness to the wiring harness in the vehicle. The L.E.D. will initially be

Green to indicate the interface is powered.

3. After a few seconds the L.E.D. will turn on solid while the interface automatically Red

programs to the vehicle. The radio will shut off at this point. This process should take 5 to 30

seconds.

4. After the interface is programmed, the L.E.D. will turn on solid , and the radio will Green

come back on, indicating programming was successful.

5. Test all functions of the installation for proper operation, before reassembling the dash.

6. If the interface fails to function, refer to “Troubleshooting”.

Resetting the Axxess interface

1. The reset button is located inside the Axxess interface, between the two connectors. Blue

The button is accessible outside the Axxess interface, no need to open the Axxess interface.

2. Press and hold the reset button for two seconds, then let go to reset the Axxess interface.

3. Refer to “Programming the Axxess Interface” from this point.

The buttons on the steering wheel will be used to set the factory clock.

• Press and hold the SOURCE button on the steering wheel for 15 seconds to access the clock

setting mode.

• Press SEEK-UP or SEEK-DOWN to select hours, minutes, etc. Press VOLUME-UP or

VOLUME-DOWN to set the values.

•

Either press SOURCE again, or wait 5 seconds with no activity to exit the clock setting mode

INSTALLING THE AXHN-1

PROGRAMMING THE AXHN-1 TROUBLESHOOTING

SETTING THE FACTORY CLOCK
