CAUTION!
All accessories, switches, climate
controls panels, and especially air bag indicator
lights must be connected before cycling the
ignition. Also, do not remove the factory radio
with the key in the on position, or while the
vehicle is running.
AXGMLN-06
I N S TA L L A T I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2020 METRA ELECTRONICS CORPORATION REV. 1/22/20 INSTAXGMLN-06

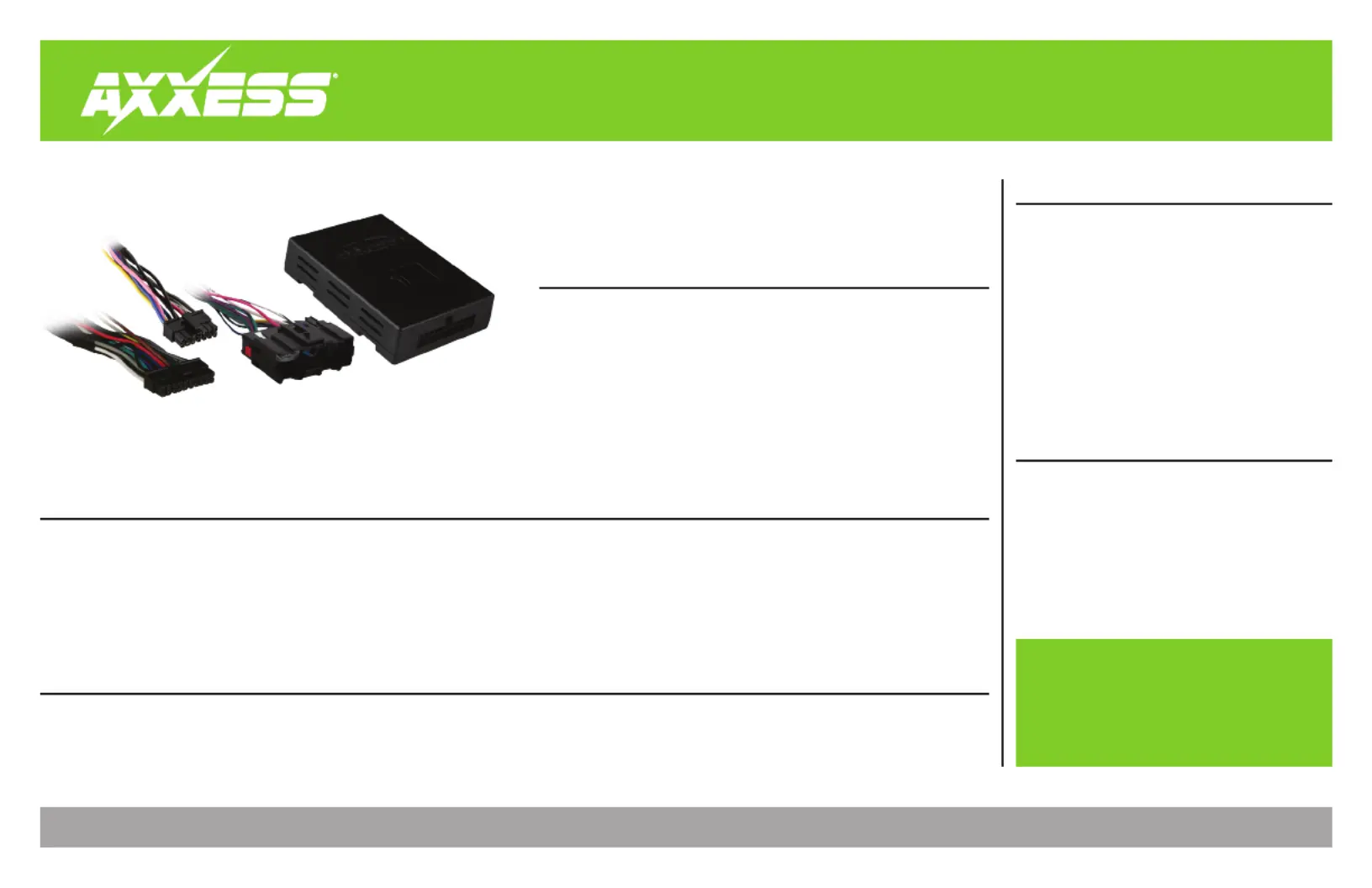

INTERFACE FEATURES
INTERFACE COMPONENTS
TOOLS REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink
• Tape • Wire cutter • Zip ties
TABLE OF CONTENTS
Connections to be made ....................................... 2
Installing the AXGMLN-06 .....................................3
Programming the AXGMLN-06 .............................3
Adjusting the AXGMLN-06 .....................................3
Troubleshooting .....................................................3
Saturn OnStar interface 2006-2007
APPLICATIONS
• Provides accessory power
(12-volt 10-amp)
•
Maintains the retained
accessory power (R.A.P.) feature
• Retains OnStar/OE Bluetooth
• Adjustable volume for OnStar
• Designed for non-amplified
models with OnStar
• Retains balance and fade
• Micro “B” USB updatable
SATURN
Ion 2006-2007
Vue 2006-2007
• AXGMLN-06 Interface
• AXGMLN-06 harness
• 16-pin harness with stripped lead
2
CONNECTIONS TO BE MADE
From the 16-pin harness with stripped leads to the aftermarket radio:
• Connect the wire to the accessory wire.Red
• Connect the wire to the left front positive speaker wire.White
• Connect the wire to the left front negative speaker wire.White/Black
• Connect the wire to the right front positive speaker wire.Gray
• Connect the Gray/Black wire to the right front negative speaker wire.
• Connect the Brown wire to the mute wire of the aftermarket radio. If the radio has no mute
wire, tape it off and disregard it.
• Tape off and disregard the following (9) wires, they will not be used in this application:
Blue/Pink Blue/White Green Green/Black Green/Purple Light Green Orange/White, , , , , , ,
Purple Purple/Black.,
From the AXGMLN-06 harness to the aftermarket radio:
• Connect the Yellow wire to the 12 volt constant/battery wire.
• Connect the wire to the ground wire.Black
• Connect the wire to the illumination wire. If no illumination wire is present, tape it Orange
off and disregard it.
• Connect the wire to the left rear positive speaker wire.Green
• Connect the wire to the left rear negative speaker wire.Green/Black
• Connect the wire to the right rear positive speaker wire.Purple
• Connect the wire to the right rear negative speaker wire.Purple/Black
• Tape off and disregard the wire, it will not be used this application.Orange/White
• The Black/Yellow wire is for OnStar volume adjustment and will be discussed later in this
manual.
3
REV. 1/22/2020 INSTAXGMLN-06
With the key in the off position:
• Connect the 16-pin harness with stripped leads, and the AXGMLN-06 harness, into the
interface.
Attention! Do not connect the AXGMLN-06 harness to the wiring harness in the vehicle just yet.
For the steps below, the L.E.D. located inside the interface can only be seen while active. The
interface does not need to be opened to see the L.E.D.
1. Start the vehicle.
2. Connect the AXGMLN-06 harness to the wiring harness in the vehicle. The L.E.D. will initially be
Green to indicate the interface is powered.
3. After a few seconds the L.E.D. will turn on solid while the interface automatically programs Red
to the vehicle. The radio will shut off at this point. This process should take 5 to 30 seconds.
4. After the interface is programmed, the L.E.D. will turn on solid Green, and the radio will come
back on, indicating programming was successful.
5. Test all functions of the installation for proper operation, before reassembling the dash.
6. If the interface fails to function, refer to “Troubleshooting”.
Resetting the Axxess interface
1. The reset button is located inside the Axxess interface, between the two connectors. Blue
The button is accessible outside the Axxess interface, no need to open the Axxess interface.
2. Press and hold the reset button for two seconds, then let go to reset the Axxess interface.
3. Refer to “Programming the Axxess Interface” from this point.
OnStar level adjustment
• To adjust the OnStar volume level find the Black/Yellow wire on the 12-pin harness.
• Push the OnStar button: while the voice is speaking tap the Blue Black/Yellow wire to
ground.
• There are 4 volume settings for OnStar: Once the 4th setting is reached and the Black/
Yellow wire is tapped to ground, it will automatically go back to the first volume setting.
• Once the volume is set it will stay at that volume until the Black/Yellow wire is tapped to
ground again.
INSTALLING THE AXGMLN-06
PROGRAMMING THE AXGMLN-06
TROUBLESHOOTING
ADJUSTING THE AXGMLN-06
