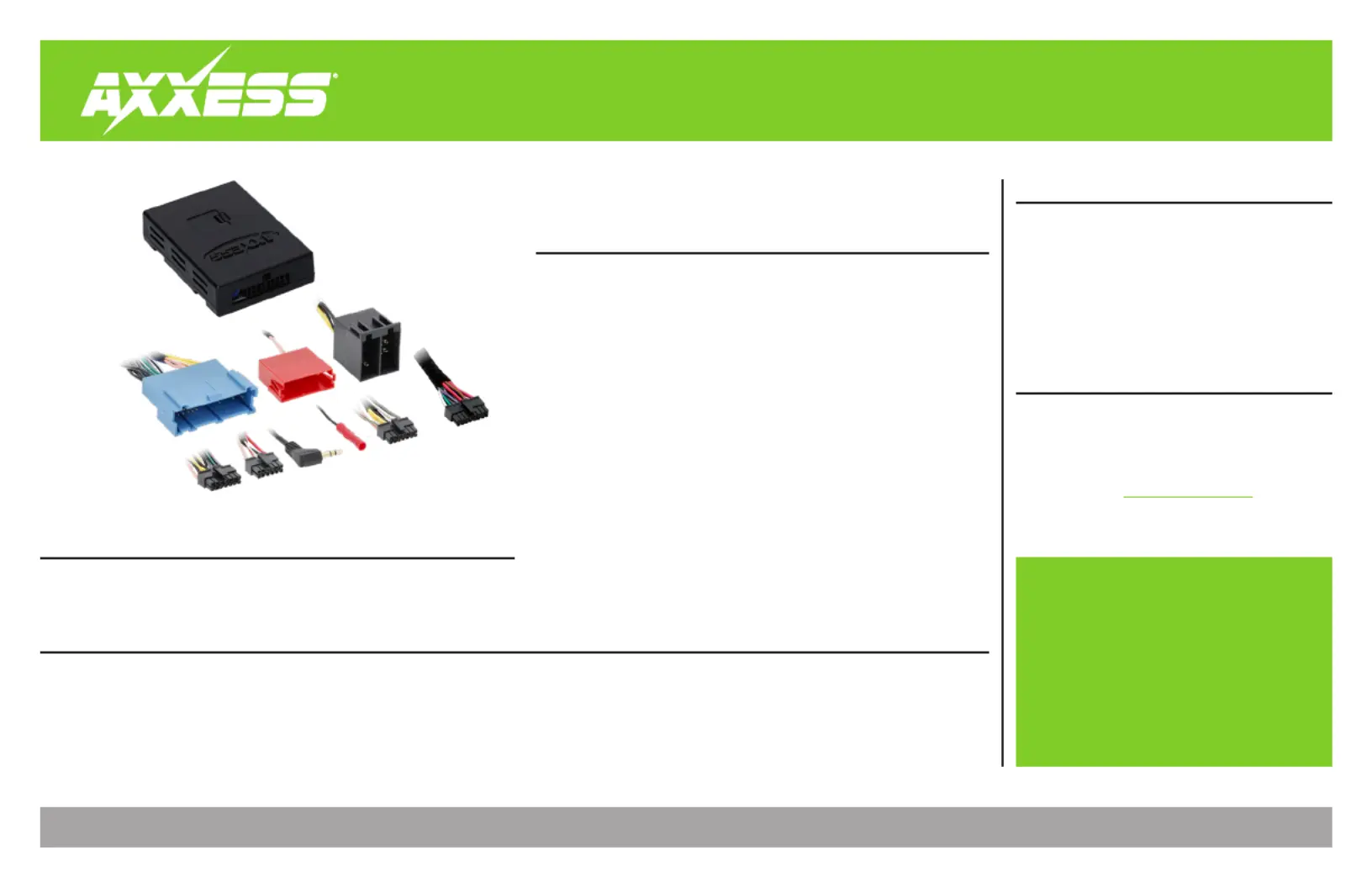

AXGM-16
I N S T A L L A T I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2023 METRA ELECTRONICS CORPORATION REV. 9/29/23 INSTAXGM-16
ATTENTION: With the key out of the
ignition, disconnect the negative battery
terminal before installing this product.
Ensure that all installation connections,
especially the air bag indicator lights, are
plugged in before reconnecting the battery
or cycling the ignition to test this product.
NOTE: Refer also to the instructions
included with the aftermarket accessory
before installing this device.
INTERFACE FEATURES
INTERFACE COMPONENTS
TOOLS & INSTALLATION ACCESSORIES REQUIRED
• Cutting tool • Tape • Crimping tool
• Connectors (i.e. butt-connectors, bell caps, etc.)
TABLE OF CONTENTS
Connections
LD-GMOS-26 harness 2 .......................................
LD-GMOS-210 harness 3 ......................................
Installation 4 .............................................................
Programming 4 .........................................................
Cadillac Chime Interface 1997-2006
• Used in amplified systems
• Provides accessory power (12-volt 10-amp)
•
Provides NAV outputs (parking brake, reverse, and speed sense)
• Retains R.A.P. (Retained Accessory Power)
• Prewired AXSWC harness included (AXSWC sold separately)
• Retains chimes
• Retains OnStar®/OE Bluetooth
• Adjustable volume for chimes and OnStar®
•
High level speaker input
• Retains balance and fade
• Micro B USB updatable
• AXGM-16 interface • LD-GMOS-26 harness
• LD-GMOS-210 harness • LD-2NAVAMP harness
APPLICATIONS
Cadillac
Catera 1997-2001 ..............................................................................................
CTS 2003-2006 .................................................................................................
Deville 1998-2005 ............................................................................................
Eldorado 1998-2002 ........................................................................................
Seville 1998-2004 ............................................................................................
SRX (with RPO codes U2R U2S) 2004-2006 ....................................................
Visit
AxxessInterfaces.com
for more detailed information about the product
and up-to-date vehicle specific applications
2
CONNECTIONS: LD-GMOS-26 & LD-2NAVAMP
Front
Rear
Sub
AUX-IN
Rear View
SWC
Aftermarket Radio
(Your radio’s features may vary)
Steering Wheel
Control (AXSWC)
(Sold Separately)
Red - Accessory power
Green - Rear left speaker + output
Green/Black - Rear left - speaker output
Green/Purple
- Reverse backup camera
Light Green - Parking brake
Orange/White - Dimmer
Blue/White Amp turn on
Blue/Pink - VSS/Speed-Sense
Gray - Front right + speaker
Gray/Black - Front right - speaker
White - Front left + speaker
White/Black - Front left - speaker
Purple - Rear right + speaker output
Purple/Black - Rear right - output
Brown - Mute
LD-GMOS-26
16-Pin
Radio Connections
14-Pin
Black - Ground wire
Yellow - Battery wire
Red - Accessory power
12-Pin
Black/White - Shield ground
LD-2NAVAMP
Vehicle Connector Black/Yellow - OnStar® level adjustment
Orange/White - Not used
LD-GMOS-26
REV. 9/29/23 INSTAXGM-16 3
REV. 9/29/23 INSTAXGM-16
CONNECTIONS: LD-GMOS-210 & LD-2NAVAMP
Red - Accessory power
Green - Rear left speaker + output
Green/Black - Rear left - speaker output
Green/Purple - Reverse backup camera
Light Green - Parking brake
Orange/White - Dimmer
Blue/White Amp turn on
Blue/Pink - VSS/Speed-Sense
Gray - Front right + speaker
Gray/Black - Front right - speaker
White - Front left + speaker
White/Black - Front left - speaker
Purple - Rear right + speaker output
Purple/Black - Rear right - output
Brown - Mute
LD-GMOS-210
LD-2NAVAMP
16-Pin
Radio Connections
14-Pin
Black - Ground wire
Yellow - Battery wire
Vehicle Connector
Vehicle Connector
Black/Yellow - OnStar® level adjustment
