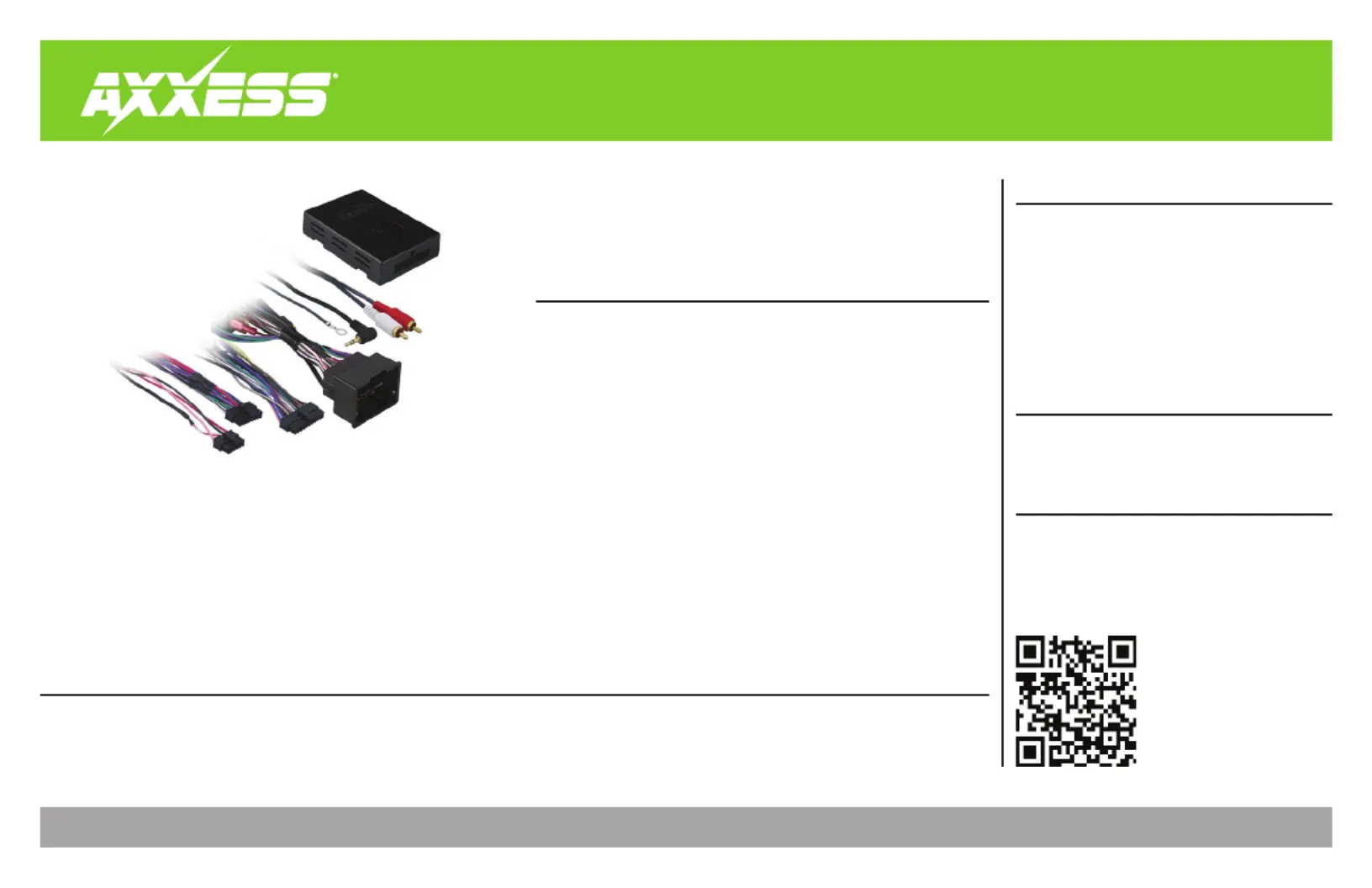

AXGM-044
I N S T A L L A T I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2019 METRA ELECTRONICS CORPORATION REV. 10/16/19 INSTAXGM-044
Product Info
INTERFACE FEATURES
INTERFACE COMPONENTS
TOOLS & INSTALLATION ACCESSORIES REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink • Tape • Wire cutter
• Zip ties • Small flat-blade screwdriver
OPTIONAL ACCESSORIES
(sold separately)
AXSWC: Steering wheel control interface
ASWCSTALK: Steering wheel control add-on
TABLE OF CONTENTS
Connections .........................................................2-3
Installation .............................................................3
Programming .........................................................3
Adjustments ...........................................................4
Personalization Menu ............................................4
No OE Steering Wheel Controls ............................5
Chevrolet Cruze 2011-2015 / Cruze Limited 2016
(with monochrome screen)
• Provides accessory power (12-volt 10-amp)
• Retains R.A.P. (retained accessory power)
• Used in amplified or non-amplified systems
• Retains chimes
• Provides NAV outputs (parking brake, reverse, mute, speed sense)
• Prewired AXSWC harness (AXSWC sold separately)
• Retains OnStar/OE Bluetooth
• Adjustable volume for chimes and OnStar
• High level speaker input
• USB CAB cable updatable
• Retains balance and fade
• AXGM-044 interface
• AXGM-044 harness
• 16-pin harness with stripped leads
2
CONNECTIONS
From the 16-pin harness with stripped leads to the aftermarket radio:
• Connect the wire to the accessory wire.Red
• Connect the Orange/White wire to the illumination wire. If the aftermarket radio doesn’t
have an illumination wire, tape off and disregard.
• If equipped with a factory amplifier, connect the wire to the amp turn on wire.Blue/White
• Connect the wire to the left front positive speaker output.White
• Connect the wire to the left front negative speaker output.White/Black
• Connect the Gray wire to the right front positive speaker output.
• Connect the Gray/Black wire to the right front negative speaker output.
• Connect the Brown wire to the mute wire. If the aftermarket radio doesn’t have a mute wire,
tape off and disregard.
The following (3) wires are only for multimedia/navigation radios that require these wires.
• Connect the wire to the VSS/speed sense wire.Blue/Pink
• Connect the wire to the reverse wire.Green/Purple
• Connect the wire to the parking brake wire.Light Green
From the AXGM-044 harness to the aftermarket radio:
• Connect the wire with a ring terminal to the radio chassis with the ISO screw supplied Black
with radio.
This wire must be connected as instructed otherwise the interface will not function.Note:
• The Black/Yellow wire will be discussed later in the section.Adjustments
• If the vehicle doesn’t come equipped with steering wheel controls, connect the Green/
Orange wire to the Green/Orange wire from the ASWCSTALK (sold separately) to retain the
personalization features. Refer to the section titled No OE Steering Wheel Controls for more
information and wiring for the ASWCSTALK.
• Connect the wire to the ground wire.Black
• Connect the Yellow wire to the battery wire.
• Connect the wire to the left rear positive speaker output. Green
• Connect the wire to the left rear negative speaker output.Green/Black
• Connect the wire to the right rear positive speaker output.Purple
• Connect the wire to the right rear negative speaker output..Purple/Black
• Connect the RCA jacks to the audio AUX-IN jacks (if applicable).
Note:
(a) This will allow you to retain the 3.5 AUX-IN jack in the console.
(b) The 3.5 jack can only be used if it is a single AUX-IN jack.
(c) If the AUX-IN jack has a USB port, neither can be used.
Continued on the next page
3
REV. 10/16/2019 INSTAXGM-044
12-pin pre-wired AXSWC harness:
• This harness is to be used along with the AXSWC (not included) to retain steering wheel
audio controls. If the AXSWC is not being used, disregard this harness. If it will be used, refer
to the AXSWC instructions for radio connections and programming. Disregard the harness
that comes with the AXSWC.
• Connect the wire to the accessory wire.Red
Note: The relay attached to the AXGM-044 is only for audible turn signal clicks. No extra steps are
required to retain this, so leave it as-is.
CONNECTIONS (CONT)
PROGRAMMING
INSTALLATION
With the key in the off position:
•
Connect the AXGM-044 harness into the interface, and then to the wiring harness in the vehicle.
Attention! If the interface loses power for any reason, the following steps will need to be
performed again.
• Turn the key (or push-to-start button) to the ignition position and wait until the radio comes on.
If the radio doesn’t come on within 60 seconds, turn the key to the off position, Note:
disconnect the interface, check all connections, reconnect the interface, and then try again.
• Turn the key to the off position, and then to the accessory position. Test all functions of the
installation for proper operation, before reassembling the dash.
