AXEU-MOST25
I N S T A L L A T I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2023 METRA ELECTRONICS CORPORATION REV. 6/19/23 INSTAXEU-MOST25
ATTENTION: With the key out of the
ignition, disconnect the negative battery
terminal before installing this product.
Ensure that all installation connections,
especially the air bag indicator lights, are
plugged in before reconnecting the battery
or cycling the ignition to test this product.
NOTE: Refer also to the instructions
included with the aftermarket accessory
before installing this device.
INTERFACE FEATURES
INTERFACE COMPONENTS
TOOLS & INSTALLATION ACCESSORIES REQUIRED
• Zip-ties
• Cutters (for zip ties)
TABLE OF CONTENTS
Applications 2 ...........................................................
Connections 3 ............................................................
BMW/Mercedes Benz MOST25
Amp Retention Interface 2008-2020
• Retains the Harmon/Kardon amp in BMW
• Retains balance
• Micro-B USB updatable
• Connections done at the amplifier location

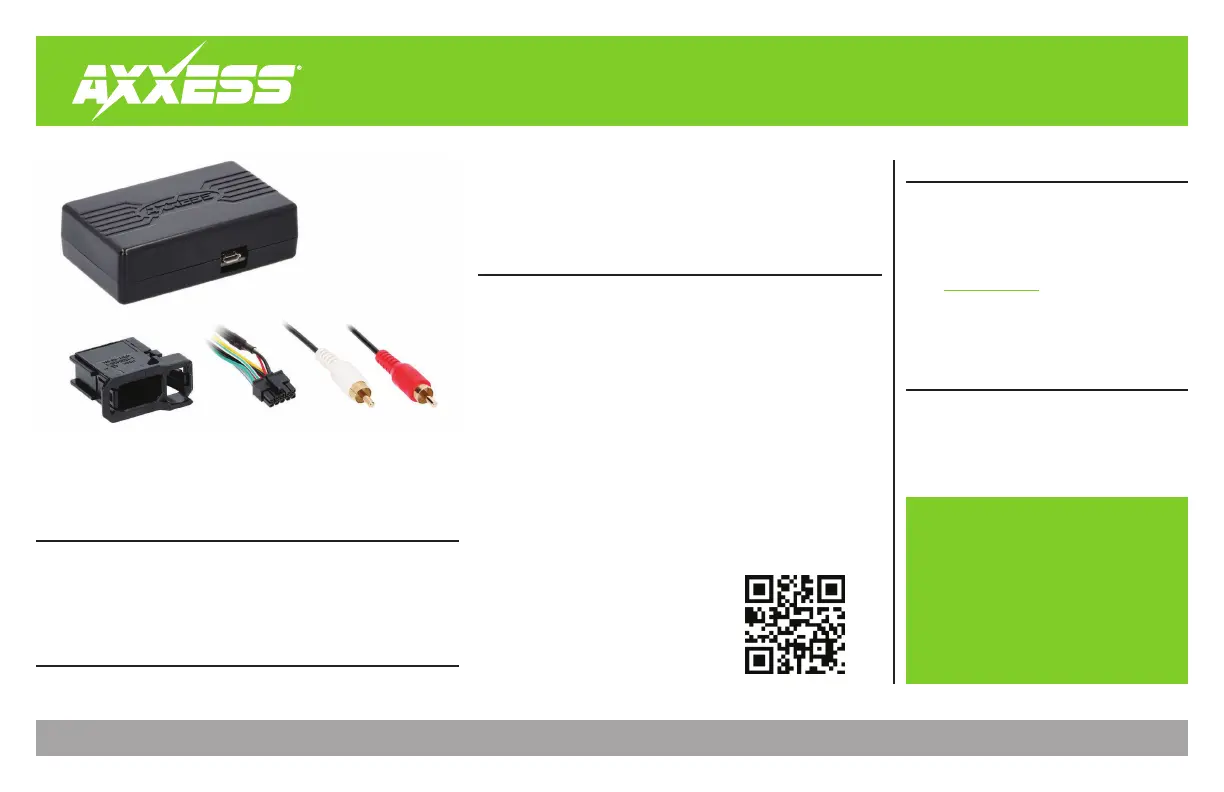

• AXEU-MOST25 interface
• AXEU-MOST25 harness
• Fiber optic extension
Product Info
Visit for more detailed information AxxessInterfaces.com
about the product and up-to-date vehicle specific applications
APPLICATIONS
See Next Page
2
APPLICATIONS
BMW
1 Series 2010-2020 ..............................................
2 Series 2014-2020 .............................................
3 Series..............................................2011-2018
4 Series 2014-2020 .............................................
5 Series 2010-2016 .............................................
6 Series 2010-2017 .............................................
7 Series..............................................2010-2015
X1 2015-2020 .......................................................
X3....................................................... 2010-2018
X4 ...................................................... 2014-2018
X5 ..................................................... 2014-2018
X6 ..................................................... 2015-2019
Mercedes Benz
C Class 2008-2014 ...............................................
CLA Class 2013-2015 ...........................................
CLK Class 2008-2010 ...........................................
CLS Class 2008-2015 ............................................
E Class 2008-2015 ...............................................
G Class 2008-2015 ...............................................
GL Class 2008-2015 .............................................
GLK Class 2008-2015 ...........................................
M / ML Class 2008-2015 ......................................
R Class 2008-2013 ...............................................
SL Class..............................................2008-2013
SLK Class 2008-2015 ...........................................
APPLICATIONS
3
REV. 6/19/23 INSTAXEU-MOST25
TO RADIO
Black - Ground
Yellow - Constant
Red - Accessory
Green - Amp le lvel contro *
White/Red- TBD
White/Blue -
TBD
White/
Green -
TBD
AXEU-MOST25
LD-MOST25
Front
Audio Output
from
Aftermarket Radio
1. Unplug the factory amplifier
2. Remove the OE fiber optic cable for
the amplifier harness
3. Insert the LD-FIBER-ADAPT into fiber optic
position of the OE amplifier (the orange fiber
optic cable is going to be the LD-FIBER-ADAPT
instead of AXEU-MOST25 cable)
4. Plug the amplifier
harness back into the OE
amplifier.
*(Green-Amp level control wire)
Tap wir e to ground to Adjust the
erall volume le lov ve
Plastic Housing
AXEU-MOST25 Cable
AXEU-MOST25 Cable
Plastic Housing
Plastic Housing
Factory Fiber
Optic Connector
OE AMPLIFIER
AXEU-MOST25 Fiber
Optic Connector with
Plastic Housing
AXEU-MOST25 Fiber
Optic Connector
3
CONNECTIONS DONE AT AMPLIFIER LOCATION
