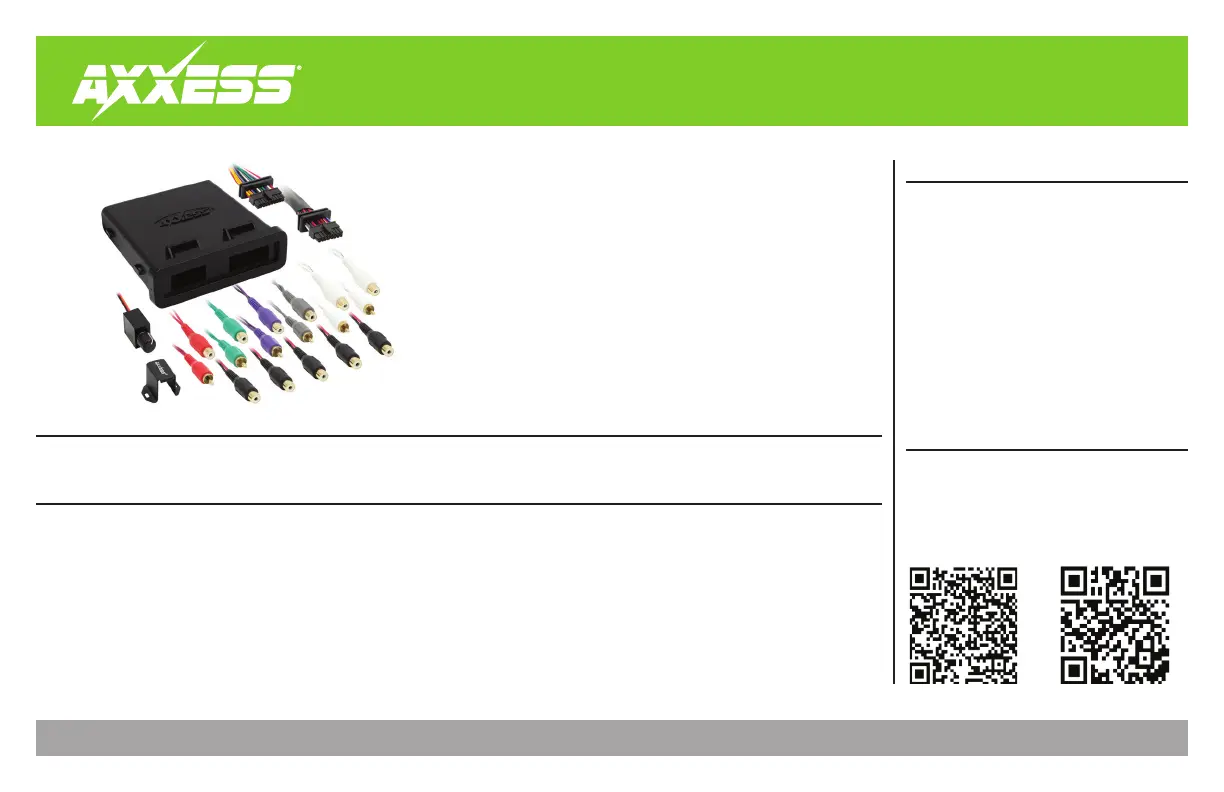

AXDSPX-WR
I N S T A L L A T I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2020 METRA ELECTRONICS CORPORATION REV. 7/30/20 INSTAXDSPX-WR
Google Play Store Apple App Store
iOS 12.1 or higher
INTERFACE FEATURES
INTERFACE COMPONENTS TOOLS & INSTALLATION ACCESSORIES REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink • Tape • Wire cutter
• Zip ties • Multimeter
TABLE OF CONTENTS
Preface ....................................................................2
Installation Options ...............................................2
Installation .............................................................3
Connections
- Aftermarket radio system ..................................4
- Adding a subwoofer to an existing radio .........5
- Full range system to an existing radio ..............6
AXDSP-X app ..................................................... 7-16
Pinout ....................................................................17
Specifications ........................................................18
Axxess 10-Channel Digital Signal Processor
with Water Resistant Case
• Water resistant enclosure with zip tie mounts included
• 31 Band graphic EQ
• 6 Inputs, 10 individually assignable outputs
• Independent equalization on each of the 10 outputs
• Independent high pass, low pass, and bandpass filters
• Each channel can be delayed independently up to 10ms
• Easy behind the radio installation in most applications
• Designed for motorcycle and UTV applications
• Clipping detection and limiting circuits
• Bass knob included
•
Settings adjusted via Bluetooth® in a smart device application (tablet
or mobile phone), compatible with both Android and Apple devices
• Read, write, and store configurations for future recall
• Password protect feature available in the mobile app
• Micro-B USB updatable
• AXDSP-X circuit board • AXDSPX-WR harness (with gaskets)
• AXDSPX-WR enclosure (w/ case, cap,and O-ring)
2
Aftermarket radio system:
The AXDSPX-WR can be used with an aftermarket radio to improve the overall listening
experience for car audio enthusiasts. Installers will connect the RCA inputs from the AXDSPX-WR
to the outputs from the aftermarket radio; , , (sub is optional). Front Rear Sub
(refer to page 4)
Adding a subwoofer to an existing radio:
This feature offers the Installer the ability to add an aftermarket subwoofer to an existing radio.
(refer to page 5)
Full range system to an existing radio:
This option allows the Installer to wire the AXDSPX-WR directly to the speaker outputs from an
existing radio for a full range audio signal (high-level).
(refer to page 6)
PREFACE INSTALLATION OPTIONS
In the following section, , choose the installation type, then either click Installation Options
on the hyperlink, or reference the page number.
The AXDSPX-WR provides a 12v 1-amp output to turn on an aftermarket amplifier. If installing
multiple amplifiers, an SPDT automotive relay will be required if the current exceeds that
amount. Use Metra part number E-123 (sold separately) for best results.
The AXDSPX-WR can also grow as your stereo system grows. Start off by adding a subwoofer,
then add on from there. Simply reference the page to change the Installation Options
AXDSPX-WR to the new system. All 10 channels of the AXDSPX-WR can be assigned however
needed for the installation at hand. If 10 channels of a subwoofer signal is needed, the
AXDSPX-WR can do it.
3
REV. 7/30/2020 INSTAXDSP-X
INSTALLATION
1. With the arrow stamped onto the cap facing upwards, push the 16-pin connector from the
AXDSPX-WR harness into the left side of the cap. The locking clip on the connector should
face upward. Make sure the gasket is seating properly in the cap. (Figure A)
2. With the arrow stamped onto the cap still facing upwards, push the 20-pin connector from
the AXDSPX-WR harness into the right side of the cap. The locking clip on the connector
should face upward. Make sure the gasket is seating properly in the cap. (Figure A)
3. Plug the 16-pin and 20-pin connectors from the AXDSPX-WR harness into the
AXDSP-X circuit board. (Figure A)
4. Slide the assembly into the case, then click it shut. Zip-tie the enclosure to a secure location
to secure it. Make sure the Axxess logo is facing up to further ensure that no outside elements
can enter the enclosure.
5. Complete all necessary connections to the radio and vehicle, but leave the amp turn-on wire
disconnected.
6. Download and install the AXDSP-X app from the Google Play Store Apple App Store or .
7. Open the app and follow the instructions on the Bluetooth Connection tab to pair the mobile
device to the AXDSPX-WR.
8. Scroll to the tab then select as the vehicle type.Configuration General
9. Connect the amp turn-on wire from the AXDSPX-WR.
10. Adjust the DSP settings in the app as desired. Refer to the instructions starting on (page 7)
for an explanation of each tab in the app.
(refer to page 7)
Cap (with O-ring)
Case
AXDSP-X
Circuit Board
AXDSPX-WR
Harness
16-Pin 20-Pin
Gasket
Zip-tie Mounts
(Figure A)
