AXDSPX-MI2

I N S T A L L A T I O N I N S T R U C T I O N S

Google Play Store Apple App Store

iOS 12.1 or higher

TOOLS & INSTALLATION ACCESSORIES REQUIRED

• Crimping tool and connectors, or solder gun,

solder, and heat shrink • Tape • Wire cutter

• Zip-ties • Multimeter tester

TABLE OF CONTENTS

Installation Options ........................................................2

Installation ...................................................................... 2

Connections ................................................................. 3-4

Mobile App ................................................................. 5-14

Speciﬁcations .................................................................15

Mitsubishi DSPX Interface w/Pre-Wired

Harness

(for non-ampliﬁed vehicles)

2007-Up

INTERFACE FEATURES

• Includes a DSP (Digital Signal Processor)

• Selectable 31 Band Graphic EQ or 5 Band Parametric EQ

• 10 individually assignable outputs

• Independent equalization on each of the 10 outputs

• Independent high pass, low pass, and bandpass ﬁlters

• Each channel can be delayed independently up to 10ms

• Clipping detection and limiting circuits

• Designed for non-ampliﬁed models

• Easy behind the radio installation with pre-wired harness

• Bass knob included for level control of subwoofer amp

•

Settings adjusted via Bluetooth

in a smart device application (tablet

or mobile phone), compatible with both Android and Apple devices

• Read, write, and store conﬁgurations for future recall

• Password protect feature available in the mobile app

• updatableUSB Micro B

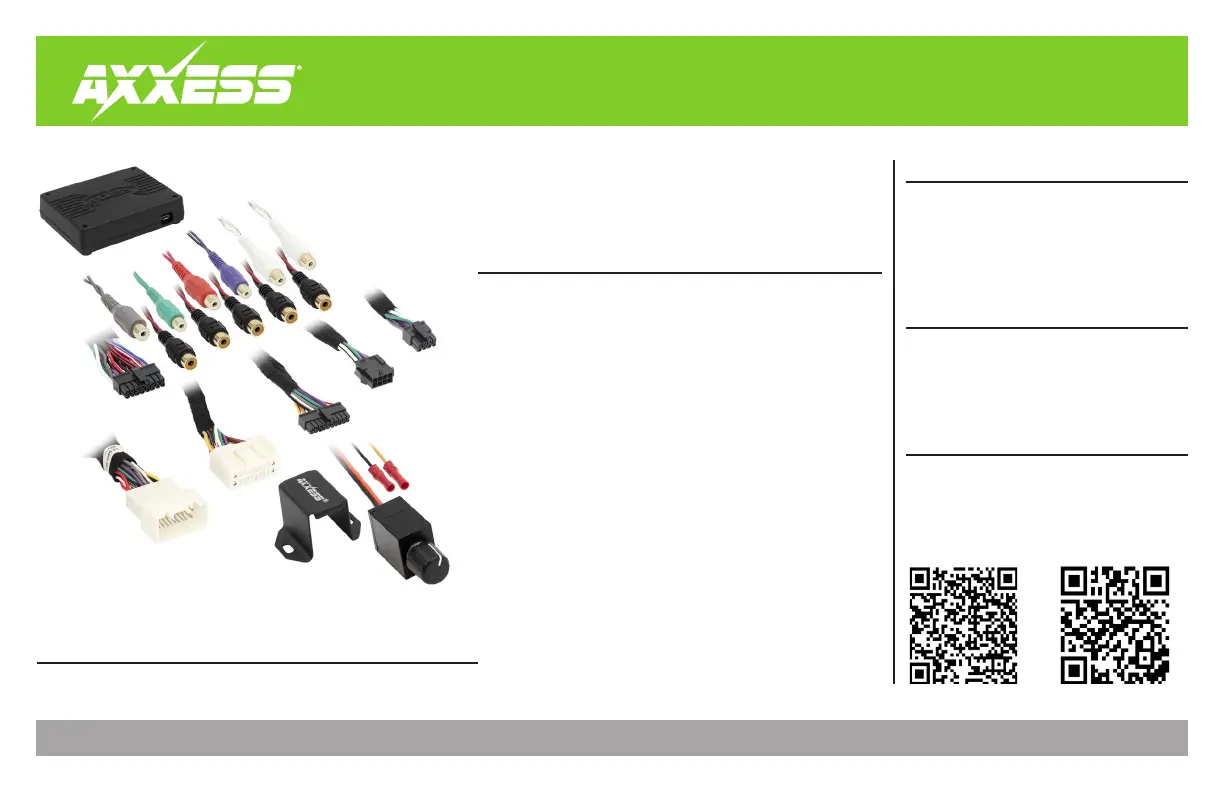

INTERFACE COMPONENTS

• AXDSPX-MI2 interface

• AXDSPX-MI2 interface harness

• AXDSPX-MI2 vehicle T-harness • Bass knob

• AXDSPX-MI2 display T-harness

APPLICATIONS

Visit axxessinterfaces.com for current application list.

Adding a subwoofer to a factory system:

The diagram on Page 3 shows the connections that need to be made to add a subwoofer to the

factory system.

Note: RCA jacks sold separately.)

Adding a full-range of amps and subwoofer to a factory system:

The diagram on Page 4 shows the connections that need to be made to add:

Subwoofer (RCA jacks sold separately)

Ampliﬁer (SPDT relay E-123 required) or Additional Amp (RCA jacks sold separately).

Note: The interface provides a 12-volt 1-amp output to turn on aftermarket amp(s). If installing

multiple amps, an SPDT automotive relay will be required if the amp turn-on current of all amps

combined exceeds 1-amp. Use Metra part number E-123 (sold separately) for best results.

1. Disassemble the dash, unplug all connectors, and then remove the factory radio. †

2. Install the AX-DSPX-MI2 vehicle T-harness to the vehicle and make all necessary

connections, but leave the amp turn-on wire disconnected.

3. AX-DSPX-MI2 vehicle T-harness Plug the to the AX-DSPX-MI2 interface.

4. Plug the AX-DSPX-MI2 interface harness AX-DSPX-MI2 interface to the .

5. AX-DSP-XL Download and install the app from the Google Play Store Apple App Store or .

6. Bluetooth Connection Open the app then select the tab. Follow the instructions to

pair the mobile device to the interface. Refer to page 6 for more information.

7. Scroll to the tab then select the vehicle type. Press theConﬁguration Lock Down ‡

button to save the conﬁguration. Refer to page 7 for more information.

8. Connect the amp turn-on wire.

9. Adjust the settings in the app as desired. Press the ‡ button to save any Lock Down

new conﬁgurations.

† For dash disassembly instructions, refer to metraonline.com. Enter the year, make,

and model of the vehicle in the Vehicle Fit Guide and ﬁnd instructions under Metra

Radio Install kits.

‡ Anytime the interface is locked down the key must be cycled off then back on.

INSTALLATION OPTIONS INSTALLATION

REV. 12/7/21 INSTAXDSPX-MI2

SUB

Factory Radio Chassis

Factory Radio Harness

Interface

Any remaining wires

tape off and disregard

These outputs can be used for

additional sub amps, or for adding

onto the system at a later date

Vehicle T-Harness

Interface T-Harness

Bass Knob

Black - Chassis Ground

Orange - Control Wire

Blue/White - Amp Turn-On Wire

Keep Connected

Any remaining wires

tape off and disregard

RCA Jacks

(sold separately)

ADDING A SUB TO A FACTORY SYSTEM
