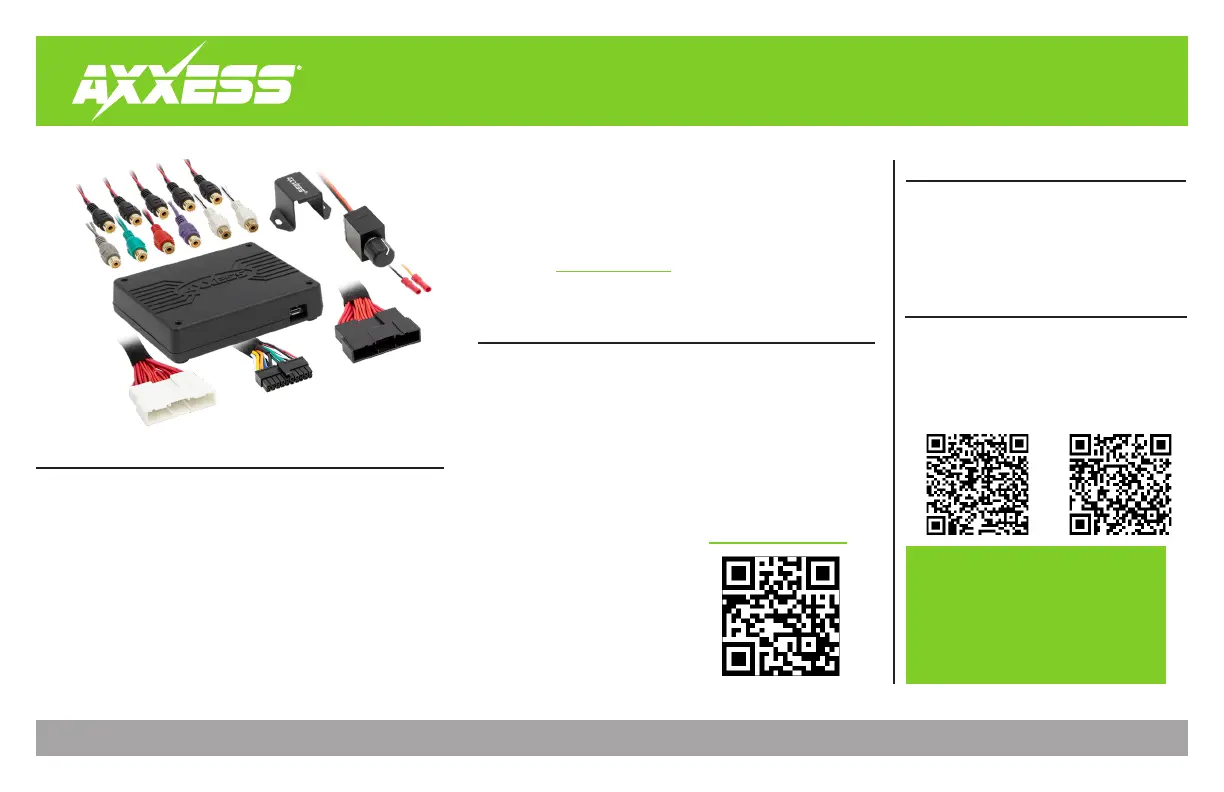

AXDSPX-HK4
I N S T A L L A T I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2024 METRA ELECTRONICS CORPORATION REV. 3/15/24 INSTAXDSPX-HK4
INTERFACE FEATURES
INTERFACE COMPONENTS
TOOLS & INSTALLATION ACCESSORIES REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink • Tape • Wire cutter
• Zip ties • Tone generator
TABLE OF CONTENTS
Connections 2 ............................................................
Installation 3 .............................................................
Mobile App 4-5 .........................................................
Specifications /Speaker Assignment QR code.....6
Hyundai/Kia Data Interface with Amplifier
Bypass Harness & DSP 2017-Up
• Designed for SPDIF amplified sound systems
• Includes an amp bypass harness
• Retains BlueLink/UVO voice prompts
• All chimes/voice prompts go through the aftermarket amp
• Adjustable chime level
• Micro-B USB updatable
• AXDSP-X Interface
• AXBK-1 (Bass Knob)
• LD-DSP-HYKIA4 harness
• Amplifier bypass harness (integrated)
ATTENTION: With the key out of the
ignition, disconnect the negative battery
terminal before installing this product. Ensure
that all installation connections, especially the
air bag indicator lights, are plugged in before
reconnecting the battery or cycling the ignition
to test this product.
NOTE: Refer also to the instructions included
with the aftermarket radio.
Google Play Store Apple App Store
iOS 12.1 or higher
Visit for more detailed information AxxessInterfaces.com
about the product and up-to-date vehicle specific applications.
www.MetraOnline.com
MetraOnline.com may be used to assist with
dash assembly instructions. Simply enter your
Year, Make, Model vehicle into the vehicle fit
guide and look for the Dash Kit Installation
Instructions.
2
CONNECTIONS
Note: Refer to wiring
Amplified Legend Types
chart on page 4
Please see Speaker Assignment
QR Code located on page 6 of
instructions
Please see Speaker Assignment
QR Code located on page 6 of
instructions
Please see Speaker Assignment
QR Code located on page 6 of
instructions
3
REV. 3/15/24 INSTAXDSPX-HK4
1. Locate the factory amp, unplug all connectors, then remove the amp.
Note: Amp location is on the following page.
2. LD-DSP-HYKIA4 harness Install the and make all necessary connections, but leave the
amp turn-on wire disconnected.
3. LD-DSP-HYKIA4 harness Plug the 16-pin and 20-pin connectors from the into the
AXDSP-X.
4. Google Play Store Apple App Store Download and install the AXDSP-X app from the or .
5. Bluetooth Connection Open the app and follow the instructions on the tab to pair the
mobile device to the AXDSP-X. (Figure A)
6. Configuration Lock Down Scroll to the tab then select the vehicle type. Press the button
to save the configuration. (Figure B)
7.
Connect the amp turn-on wire from the . Click the LD-DSP-HYKIA4 harness Identify
button to confirm that the is connected properly. If so, a chime will AXDSPX-HK4
be heard from the front left speaker. Test all functions of the installation for proper
operation
.
Note: Outputs The outputs may need to be configured within the tab.
8.
Adjust the DSP settings in the app as desired. Refer to the instructions under the Setup
Instructions tab, or online at Axxessinterfaces.com for an explanation of each tab in the
app.
INSTALLATION
(Figure A)
(Figure B)
