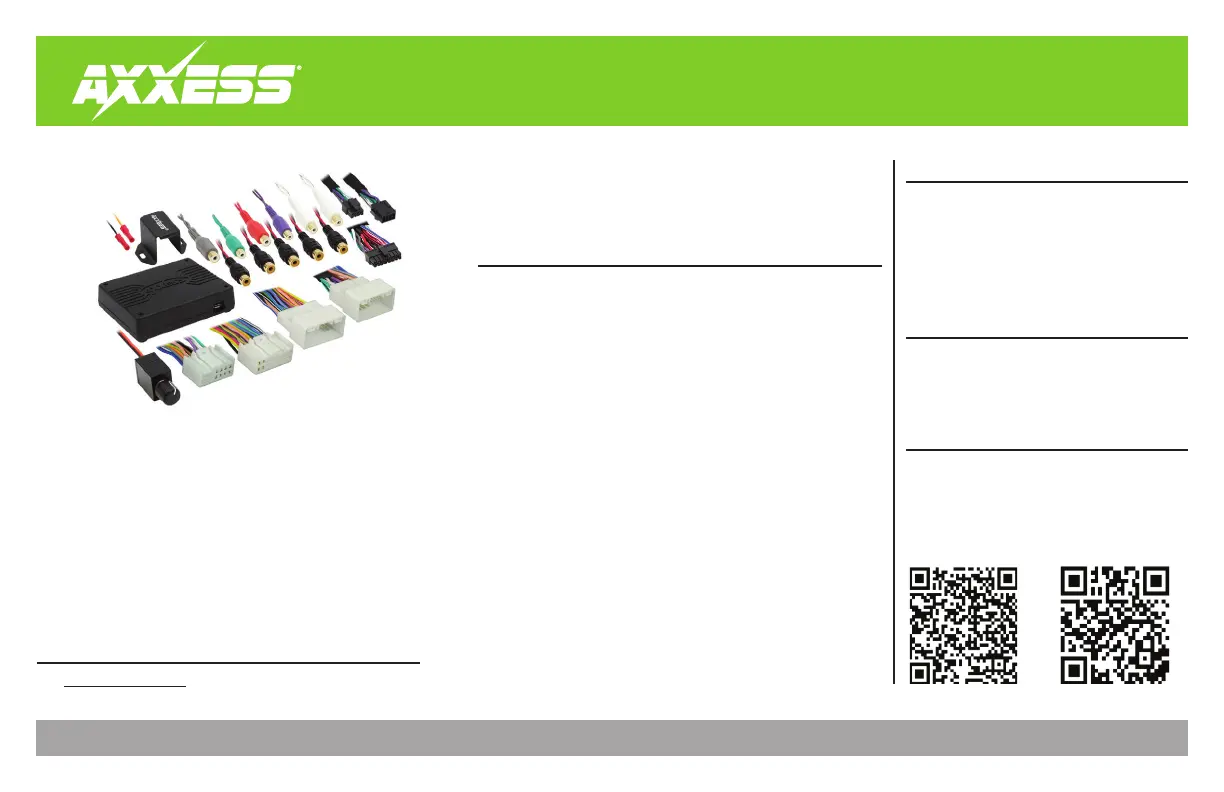

AXDSPX-HK1
I N S T A L L A T I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2020 METRA ELECTRONICS CORPORATION REV. 7/30/20 INSTAXDSPX-HK1
Google Play Store Apple App Store
iOS 12.1 or higher
INTERFACE FEATURES
INTERFACE COMPONENTS
TOOLS & INSTALLATION ACCESSORIES REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink • Tape • Wire cutter
• Zip ties • Multimeter
TABLE OF CONTENTS
Installation Options ...............................................2
Installation .............................................................2
Connections ........................................................ 3-4
Mobile App ........................................................ 5-13
Specifications ....................................................... 14
Hyundai/Kia DSP Interface With Pre-Wired
Harness 2010-2017
Includes a DSP (Digital Signal Processor)
31 Band graphic EQ
10 individually assignable outputs
Independent equalization on each of the 10 outputs
Independent high pass, low pass, and bandpass filters
Each channel can be delayed independently up to 10ms
Clipping detection and limiting circuits
Designed for non-amplified models
Easy behind the radio installation with pre-wired harness
Bass knob included for level control of subwoofer amp
Settings adjusted via Bluetooth® in a smart device application (tablet
or mobile phone), compatible with both Android and Apple devices
Read, write, and store configurations for future recall
Password protect feature available in the mobile app
Micro-B USB updatable
• AXDSPX-HK1 interface
• AXDSPX-HK1 interface harness
• AXDSPX-HK1 vehicle T-harness • Bass knob
APPLICATIONS
Visit axxessinterfaces.com for current application list
2
Adding a sub to a factory system:
This feature offers the ability to add a subwoofer to a factory system. (refer to page 3)
Adding a full-range amp & sub to a factory system:
This feature offers the ability to add a full-range amp and sub to a factory system. (refer to page 4)
Note: The interface provides a 12-volt 1-amp output to turn on aftermarket amp(s). If installing
multiple amps, an SPDT automotive relay will be required if the amp turn-on current of all amps
combined exceeds 1-amp. Use Metra part number E-123 (sold separately) for best results.
1. Remove the factory radio †, then unplug all connectors.
2. Install the AX-DSPX-HK1 vehicle T-harness to the vehicle and make all necessary
connections, but leave the amp turn-on wire disconnected.
3. AX-DSPX-HK1 vehicle T-harness AX-DSPX-HK1 interface Plug the to the .
4. Plug the AX-DSPX-HK1 interface harness to the AX-DSPX-HK1 interface.
5. Download and install the AXDSP-X app from the Google Play Store Apple App or
Store.
6. Bluetooth Connection Open the app then select the tab. Follow the instructions to
pair the mobile device to the interface. Refer to page 6 for more information.
7. Scroll to the Configuration tab then select the vehicle type. Press the Lock Down
button to save the configuration. Refer to page 7 for more information.
8. Connect the amp turn-on wire.
9. Adjust the settings in the app as desired. Press the button to save any Lock Down
new configurations.
Refer to Metra online for dash disassembly. If Metra makes a dash kit for the vehicle,
disassembly will be within those instructions.
Anytime the interface is locked down the key must be cycled off then back on
INSTALLATION OPTIONS INSTALLATION
3
REV. 7/30/2020 INSTAXDSPX-HK1
Factory Radio
Keep Connected
Any remaining wires
tape off and disregard
Black - Ground
Orange - Control
Bass Knob
Factory Radio Harness
Interface
Any remaining wires
tape off and disregard
Vehicle T-Harness
Blue/White - Amp Turn-On Wire
These outputs can be used for
additional sub amps, or for adding
onto the em at a later datesyst
RCA Jacks
(sold separately)
ADDING A SUB TO A FACTORY SYSTEM
