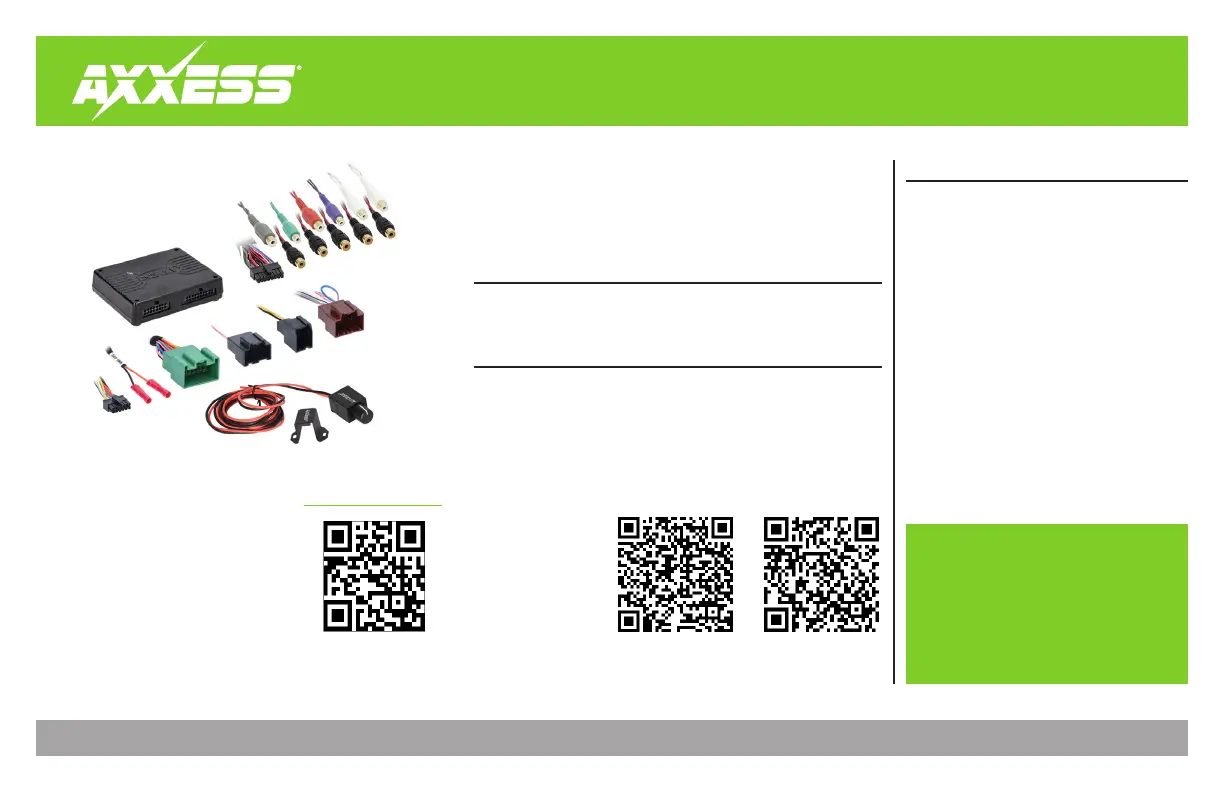

AXDSPX-GMM50
I N S TA L L AT I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2024 METRA ELECTRONICS CORPORATION REV. 5/3/24 INSTAXDSPX-GMM50
INTERFACE COMPONENTS
GENERAL MOTORS 2014-2021
ETHERNET DSPX PACKAGE
• AXDSPX-GMM50 interface • AXDSPX-GMM50 interface harness
• AXBT-1 Bass knob
For refer to Enter the year, make, and model of the vehicle in theDash Disassembly Instructions, metraonline.com. Vehicle Fit Guide for Radio Install kits.
Visit
axxessinterfaces.com
for current application list.
TABLE OF CONTENTS
Interface Features 2 ..................................................
Connections: Adding A Full-Range Amp
& Sub To A Factory System 3 ...............................
Installation 4 .............................................................
Quick Setup Steps: AX-DSP-XL App 5 .......................
Specifications 6 ........................................................
Troubleshooting......................................................7
LED Feedback 7 ..........................................................
Speaker Assignment QR Code 8 ..............................
TOOLS REQUIRED
• Crimping tool and connectors, or solder gun, solder, and heat shrink
• Tape • Wire cutter • Zip-ties • Multimeter
Recommended: • Tone generator • Polarity tester Visit for more detailed
AxxessInterfaces.com
information about the product and
up-to-date vehicle specific applications
ATTENTION: With the key out of the ignition,
disconnect the negative battery terminal before
installing this product. Ensure that all installation
connections, especially the air bag indicator lights, are
plugged in before reconnecting the battery or cycling
the ignition to test this product.
NOTE: Refer also to the instructions included with the
aftermarket accessory before installing this device.
Google Play Store Apple App Store
iOS 12.1 or higher
www.MetraOnline.com
MetraOnline.com may be used to assist with dash
assembly instructions. Simply enter your Year,
Make, Model vehicle into the vehicle fit guide and
look for the Dash Kit Installation Instructions.
2
INTERFACE FEATURES
INTERFACE FEATURES
• Designed for Amplified models
• Includes a DSP (Digital Signal Processor)
• Selectable 31 Band graphic EQ or 5 Band Parametric EQ
• 10 individually assignable outputs
• Independent equalization on each of the 10 outputs
• Independent high pass, low pass, and band pass filters
• Each channel can be delayed independently up to 10ms
• Clipping detection and limiting circuits
• Retains factory parking sensor chimes
• Retains OnStar® voice prompts
• Adjustable chime level
• Bass knob included for level control of subwoofer amp
•
Settings adjusted via Bluetooth® in a smart device application (tablet
or mobile phone), compatible with both Android and Apple devices
• Read, write, and store configurations for future recall
• Password protect feature available in the mobile app
• Micro-B USB updatable
3
REV. 5/3/24 INSTAXDSPX-GMM50
Assignable outputs labeled
CH 7-10 to be used
for optional amps.
An SPDT relay, Metra part number
E-123, must be used if the amp turn-on
current of all amps exceed 1-amp.
AXBK-1
SUB
Factory Amp
(must be removed)
Factory Amp Harness RCA Jacks
(sold separately)
AXBK-1
Interface
Please See Speaker Assignment QR Code on Page 8
Please See Speaker Assignment QR Code on Page 8
Please See Speaker Assignment QR Code on Page 8
CONNECTIONS: ADDING A FULL-RANGE AMP & SUB TO A FACTORY SYSTEM
