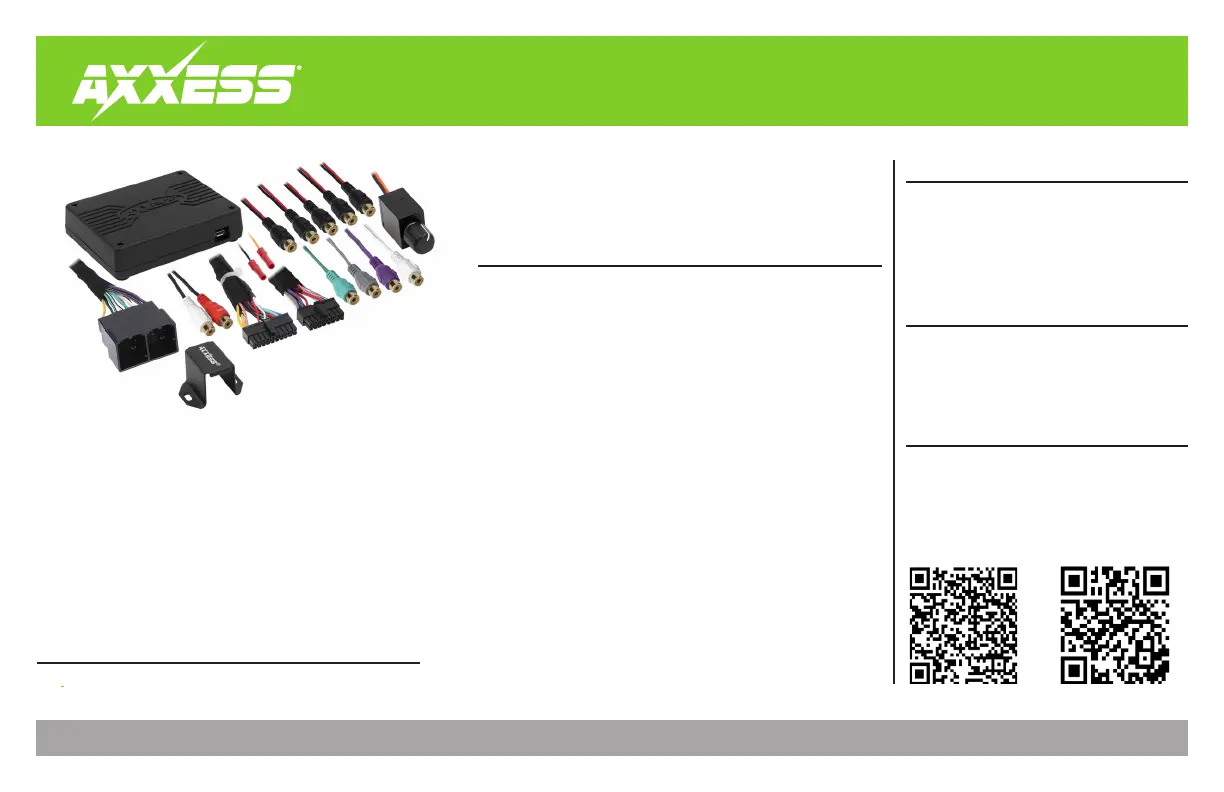

AXDSPX-GM30
I N S T A L L A T I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2024 METRA ELECTRONICS CORPORATION REV. 1/9/24 INSTAXDSPX-GM30
Google Play Store Apple App Store
iOS 12.1 or higher
INTERFACE FEATURES
INTERFACE COMPONENTS
TOOLS & INSTALLATION ACCESSORIES REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink
• Tape • Wire cutter • Zip ties • Multimeter
TABLE OF CONTENTS
Installation Options 2 ...............................................
Installation 2 .............................................................
Connections 3-4 ........................................................
Mobile App 5-14 ........................................................
Specifications 15 ........................................................
GM DSP Interface With Pre-Wired Harness
2019-Up
• Designed for non-amplified models
• Includes a DSP (Digital Signal Processor)
• 31 Band graphic EQ or 5 Band Parametric EQ
• 10 individually assignable outputs
• Independent equalization on each of the 10 outputs
• Independent high pass, low pass, and bandpass filters
• Each channel can be delayed independently up to 10ms
• Clipping detection and limiting circuits
• Retains factory parking sensor chimes
• Retains OnStar® voice prompts
• Adjustable chime level
• Easy behind the radio installation with pre-wired harness
• Bass knob included for level control of subwoofer amp
• Settings adjusted via Bluetooth® in a smart device application (tablet
or mobile phone), compatible with both Android and Apple devices
• Read, write, and store configurations for future recall
• Password protect feature available in the mobile app
• Micro-B USB updatable
• AXDSPX-GM30 interface
• AXDSPX-GM30 interface harness
• AXDSPX-GM30 vehicle T-harness
• LD-DSP-RPAD2
• Bass knob
APPLICATIONS
Visit for current application list
axxessinterfaces.com
2
Adding a subwoofer to a factory system:
This feature offers the ability to add a subwoofer to a factory system. (refer to page 3)
Adding a full-range amp & sub to a factory system:
This feature offers the ability to add a full-range amp and sub to a factory system. (refer to page 4)
Note: The interface provides a 12-volt 1-amp output to turn on aftermarket amp(s). If installing
multiple amps, an SPDT automotive relay will be required if the amp turn-on current of all amps
combined exceeds 1-amp. Use Metra part number E-123 (sold separately) for best results.
1. Remove the factory radio †, then unplug all connectors.
2. AX-DSPX-GM30 vehicle T-harness Install the to the vehicle and make all necessary
connections, but leave the amp turn-on wire disconnected.
3. AX-DSPX-GM30 vehicle T-harness AX-DSPX-GM30 interface Plug the to the .
4. AX-DSPX-GM30 interface harness AX-DSPX-GM30 interface Plug the to the .
5.
Download and install the AXDSP-X app from the or Google Play Store Apple App Store
.
6. Bluetooth Connection Open the app then select the tab. Follow the instructions to
pair the mobile device to the interface. Refer to page 6 for more information.
7. Configuration Lock Down Scroll to the tab then select the vehicle type. Press the ‡
button to save the configuration. Refer to page 7 for more information.
8. Connect the amp turn-on wire.
9. Lock Down Adjust the settings in the app as desired. Press the ‡ button to save any
new configurations.
† Refer to Metra onli ne for dash disassembly. If Metra makes a dash kit for the vehicle,
disassembly will be within those instructions.
‡ Anytime the interface is locked down the key must be cycled off then back on
INSTALLATION OPTIONS INSTALLATION
3
REV. 1/9/24 INSTAXDSPX-GM30
Factory Radio
Keep Connected
Any remaining wires
tape off and disregard
Black - Ground
Orange - Control
Bass Knob
Factory Radio Harness
Interface
Any remaining wires
tape off and disregard
Vehicle T-Harness
Blue/White - Amp Turn-On Wire
These outputs can be used for
additional sub amps, or for adding
onto the em at a later datesyst
RCA Jacks
(sold separately)
ADDING A SUBWOOFER TO A FACTORY SYSTEM
