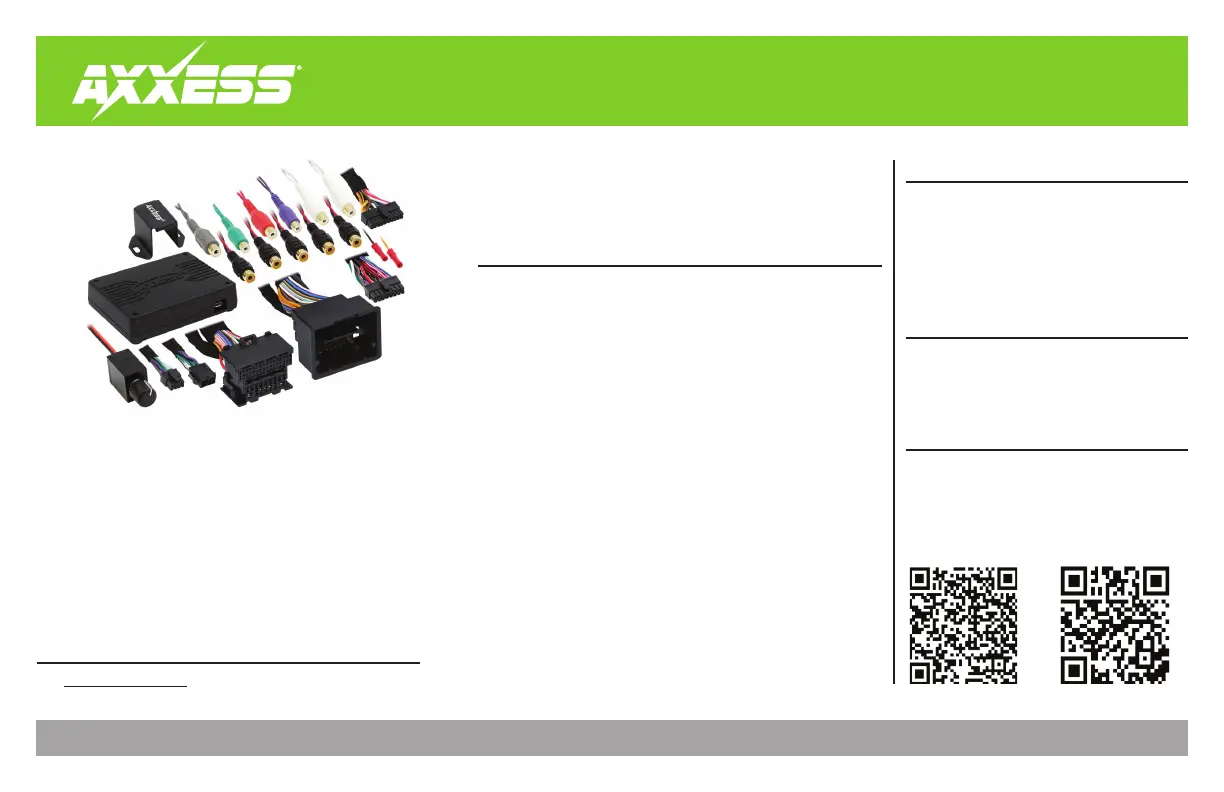

AXDSPX-GL44

I N S T A L L A T I O N I N S T R U C T I O N S

Google Play Store Apple App Store

iOS 12.1 or higher

INTERFACE FEATURES

INTERFACE COMPONENTS

TOOLS & INSTALLATION ACCESSORIES REQUIRED

• Crimping tool and connectors, or solder gun,

solder, and heat shrink • Tape • Wire cutter

• Zip ties • Multimeter

TABLE OF CONTENTS

Installation Options 2 ...............................................

Installation 2 .............................................................

Connections 3-4 ........................................................

Mobile App 5-13 ........................................................

Specifications 14 .......................................................

GM DSP Interface With Pre-Wired Harness

2012-2017

• Includes a DSP (Digital Signal Processor)

• 31 Band graphic EQ

• 10 individually assignable outputs

• Independent equalization on each of the 10 outputs

• Independent high pass, low pass, and bandpass filters

• Each channel can be delayed independently up to 10ms

• Clipping detection and limiting circuits

• Retains factory parking sensor chimes

• Retains OnStar® voice prompts

• Adjustable chime level

• Can be used in amplified and non-amplified models

• Easy behind the radio installation with pre-wired harness

• Bass knob included for level control of subwoofer amp

• Settings adjusted via Bluetooth® in a smart device application (tablet

or mobile phone), compatible with both Android and Apple devices

• Read, write, and store configurations for future recall

• Password protect feature available in the mobile app

• Micro-B USB updatable

• AXDSPX-GL44 interface

• AXDSPX-GL44 interface harness

• AXDSPX-GL44 vehicle T-harness • Bass knob

APPLICATIONS

Visit axxessinterfaces.com for current application list

Adding a sub to a factory system:

This feature offers the ability to add a subwoofer to a factory system, whether amplified or non-

amplified. (refer to page 3)

Adding a full-range amp & sub to a factory system:

This feature offers the ability to add a full-range amp and sub to a factory system, whether

amplified † or non-amplified. (refer to page 4)

† For amplified models the amp must be bypassed/unplugged, and chosen in With OE Amplifier

the tab under .Configuration Vehicle Type

Note: The interface provides a 12-volt 1-amp output to turn on aftermarket amp(s). If installing

multiple amps, an SPDT automotive relay will be required if the amp turn-on current of all amps

combined exceeds 1-amp. Use Metra part number E-123 (sold separately) for best results.

1. Remove the factory radio †, then unplug all connectors.

2. AX-DSPX-GL44 vehicle T-harness Install the to the vehicle and make all necessary

connections, but leave the amp turn-on wire disconnected.

3. AX-DSPX-GL44 vehicle T-harness AX-DSPX-GL44 interface Plug the to the .

4. AX-DSPX-GL44 interface harness AX-DSPX-GL44 interface Plug the to the .

5. Google Play Store Apple App Download and install the AXDSP-X app from the or

Store.

6. Bluetooth Connection Open the app then select the tab. Follow the instructions to

pair the mobile device to the interface. Refer to page 6 for more information.

7. Configuration Lock Down Scroll to the tab then select the vehicle type. Press the ‡

button to save the configuration. Refer to page 7 for more information.

8. Connect the amp turn-on wire.

9. Lock Down Adjust the settings in the app as desired. Press the ‡ button to save any

new configurations.

† Refer to Metra online for dash disassembly. If Metra makes a dash kit for the vehicle,

disassembly will be within those instructions.

‡ Anytime the interface is locked down the key must be cycled off then back on

INSTALLATION OPTIONS INSTALLATION

REV. 5/19/23 INSTAXDSPX-GL44

Factory Radio

Keep Connected

Any remaining wires

tape off and disregard

Black - Ground

Orange - Control

Bass Knob

Factory Radio Harness

Interface

Any remaining wires

tape off and disregard

Vehicle T-Harness

Blue/White - Amp Turn-On Wire

These outputs can be used for

additional sub amps, or for adding

onto the em at a later datesyst

RCA Jacks

(sold separately)

ADDING A SUB TO A FACTORY SYSTEM
