Seite 1/8

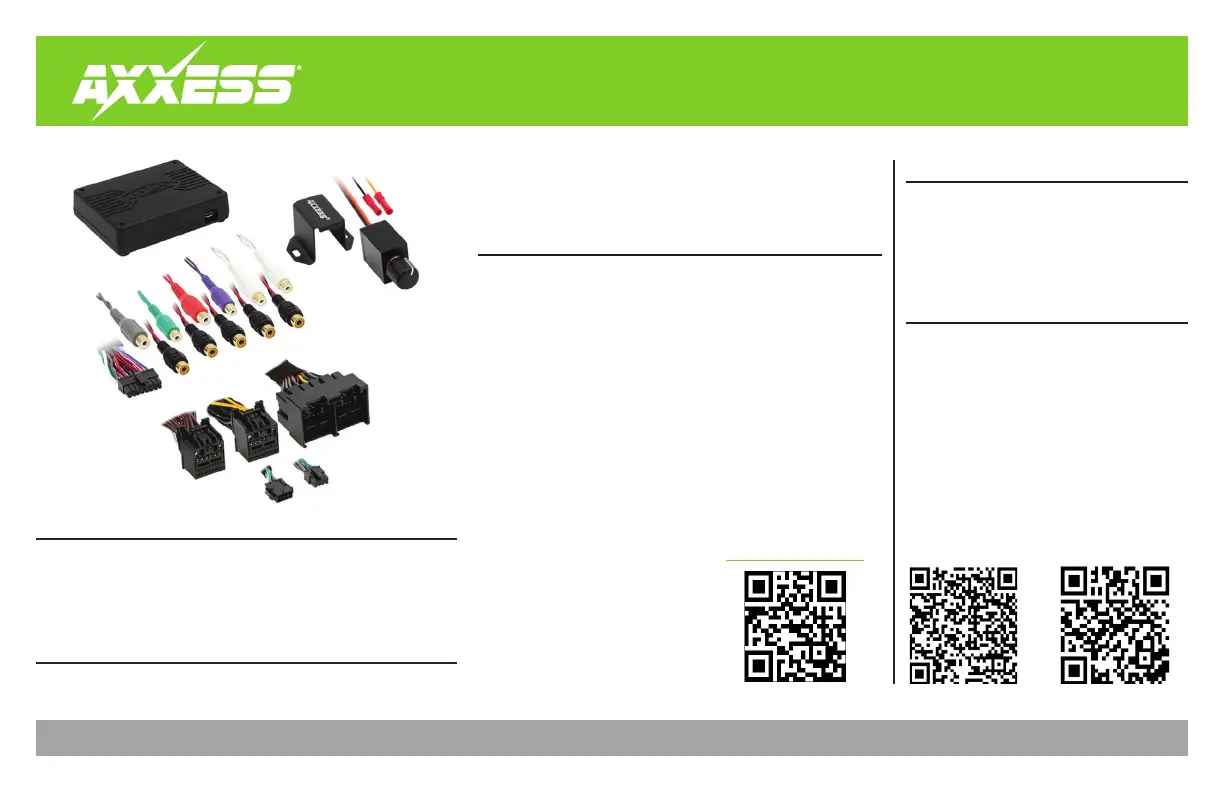

AXDSPX-FD3
I N S T A L L A T I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2024 METRA ELECTRONICS CORPORATION REV. 2/20/24 INSTAXDSPX-FD3
Google Play Store Apple App Store
iOS 12.1 or higher
INTERFACE FEATURES
TOOLS & INSTALLATION ACCESSORIES REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink • Tape • Wire cutter
• Zip-ties • Multimeter
TABLE OF CONTENTS
Installation & Installation Options 2 ........................
Connections 3-4 ........................................................
Mobile App 5-6 .........................................................
Specifications 7 .........................................................
• Includes a DSP (Digital Signal Processor)
• Selectable 31 Band Graphic EQ or 5 Band Parametric EQ
• 10 individually assignable outputs
• Independent equalization on each of the 10 outputs
• Independent high pass, low pass, and band pass filters
• Each channel can be delayed independently up to 10ms
• Designed for non-amplified models
• Easy behind the radio installation with pre-wired harness
• Bass knob included for level control of subwoofer amp
• Settings adjusted via Bluetooth® in a smart device application (tablet
or mobile phone), compatible with both Android and Apple devices
• Read, write, and store configurations for future recall
• Password protect feature available in the mobile app
• USB Micro B updatable
APPLICATIONS
Visit for current application listAxxessInterfaces.com
INTERFACE COMPONENTS
• AXDSPX-FD3 interface
• AXDSPX-FD3 interface harness
• AXDSPX-FD3 vehicle T-harness • Bass knob
Ford DSPX Interface (for Non-Amplified Vehicles
with Pre-Wired Harness)
2020-Up
www.MetraOnline.com
MetraOnline.com may be used to assist
with dash assembly instructions. Simply
enter your Year, Make, Model vehicle
into the vehicle fit guide and look for the
Dash Kit Installation Instructions.
2
Adding a subwoofer to a factory system:
The diagram on shows the connections that need to be made to add a subwoofer to the Page 3
factory system.
Note: RCA jacks sold separately.
Adding a full-range of amps and subwoofer to a factory system:
The diagram on shows the connections that need to be made to add: Subwoofer (RCA jacks Page 4
sold separately)
Amplifier (SPDT required) orrelay E-123
Additional Amp (RCA jacks sold separately).
Note: The interface provides a 12-volt 1-amp output to turn on aftermarket amp(s). If installing
multiple amps, an SPDT automotive relay will be required if the amp turn-on current of all amps
combined exceeds 1-amp. Use Metra part number E-123 (sold separately) for best results.
1. Disassemble the dash, unplug all connectors, and then remove the factory radio.†
2. AXDSPX-FD3 vehicle T-harness Install the to the vehicle and make all necessary
connections, but leave the amp turn-on wire disconnected.
3. AXDSPX-FD3 vehicle T-harness AXDSPX-FD3 interface Plug the to the .
4. AXDSPX-FD3 interface harness AXDSPX-FD3 interface Plug the to the .
5.
Download and install the from the or AX-DSP-XL app Google Play Store Apple
App Store.
6. Bluetooth Connection Open the app then select the tab. Follow the instructions to
pair the mobile device to the interface. Refer to page 6 for more information.
7. Configuration Lock Down Scroll to the tab then select the vehicle type. Press the ‡
button to save the configuration. Refer to page 7 for more information.
8. Connect the amp turn-on wire.
9. Lock Down Adjust the settings in the app as desired. Press the ‡ button to save any
new configurations.
† For dash disassembly instructions, refer to metraonline.com. Enter the year, make,
and model of the vehicle in the Vehicle Fit Guide and find instructions under Metra
Radio Install kits.
‡ Anytime the interface is locked down the key must be cycled off then back on.
INSTALLATION OPTIONS INSTALLATION
3
REV. 2/20/24 INSTAXDSPX-FD3
Factory Radio
Keep Connected
Any remaining wires
tape off and disregard
Black - Ground
Orange - Control
Bass Knob
Factory Radio Harness
Interface
Any remaining wires
Blue/White - Amp Turn-On Wire
These outputs can be used for
additional sub amps, or for adding
onto the system at a later date
RCA Jacks
(sold separately)
Factory Display Screen
Factory Display Harness
Display T-Harness
* NAV models only *
ADDING A SUBWOOFER TO A FACTORY SYSTEM
LD-DSP-FD3
