AXDSPX-FD1
I N S T A L L A T I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2024 METRA ELECTRONICS CORPORATION REV. 8/5/24 INSTAXDSPX-FD1
INTERFACE FEATURES
INTERFACE COMPONENTS
TABLE OF CONTENTS
Installation & Installation Options 2 ........................
Connections 3-4 ........................................................
Mobile App: Quick Setup 5-6 ...................................
Specifications 7 .........................................................
Ford DSP Interface with Pre-Wired Harness
2006-2014
• Includes a DSP (Digital Signal Processor)
• Selectable 31 Band graphic EQ or 5 Band Parametric EQ
• 10 individually assignable outputs
• Independent equalization on each of the 10 outputs
• Independent high pass, low pass, and bandpass filters
• Each channel can be delayed independently up to 10ms
• Clipping detection and limiting circuits
• Retains SYNC® voice prompts
• Adjustable chime level
• Can be used in amplified and non-amplified models
(Features continued on next page)

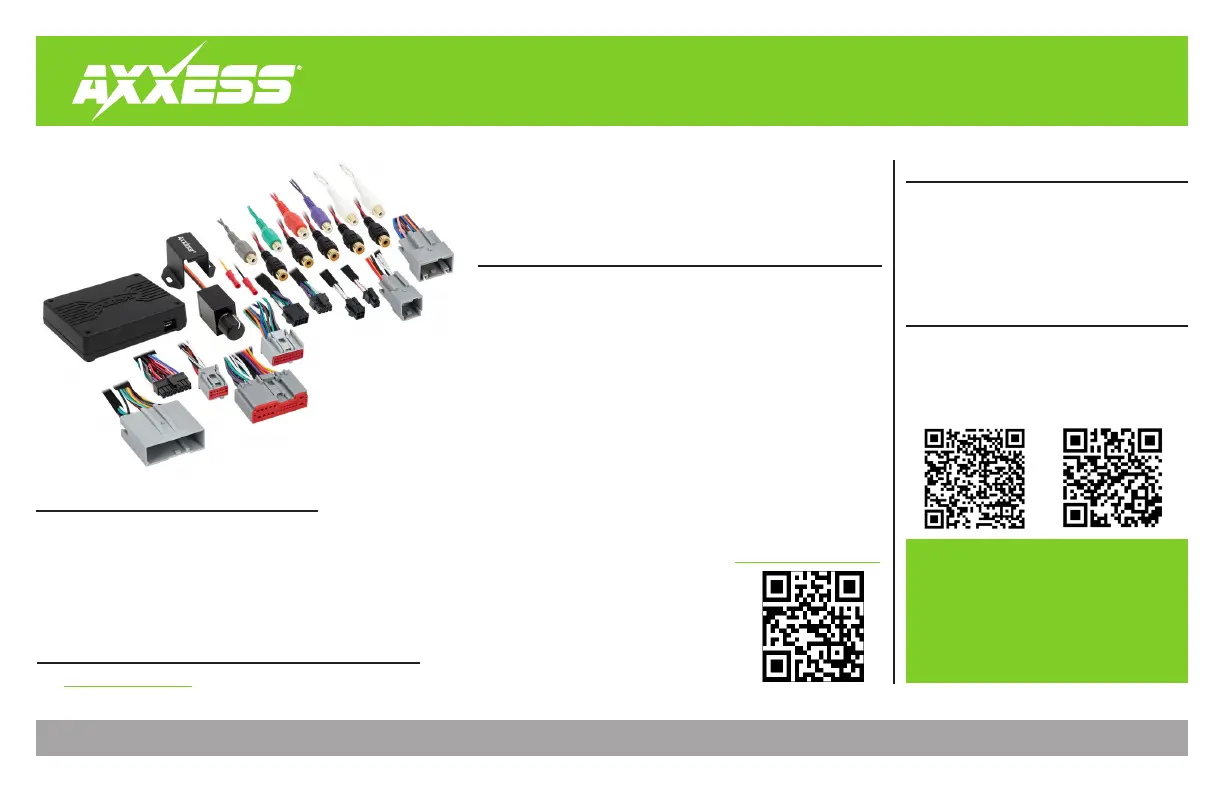

• AXDSPX-FD1 interface
• AXDSPX-FD1 interface harness
• AXDSPX-FD1 vehicle T-harness • Bass knob
APPLICATIONS
Visit for current application listAxxessinterfaces.com
www.MetraOnline.com
MetraOnline.com may be used to assist with
dash assembly instructions. Simply enter
your Year, Make, Model vehicle into the
vehicle fit guide and look for the Dash Kit
Installation Instructions.
TOOLS & INSTALLATION ACCESSORIES REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink • Tape • Wire cutter
• Zip ties • Multimeter
ATTENTION: With the key out of the ignition, disconnect
the negative battery terminal before installing this
product. Ensure that all installation connections,
especially the air bag indicator lights, are plugged in
before reconnecting the battery or cycling the ignition
to test this product.
NOTE: Refer also to the instructions included with the
aftermarket accessory before installing this device.
Google Play Store Apple App Store
iOS 12.1 or higher
2
Adding a subwoofer to a factory system:
This feature offers the ability to add a subwoofer to a factory system, whether amplified or non-
amplified (Refer to Page 3)
Adding a full-range amp and subwoofer to a factory system:
This feature offers the ability to add a full-range amp and sub to a factory system, whether amplified*
or non-amplified. (Refer to )Page 4
* For amplified models the amp must be bypassed/unplugged, and chosen in the With OE Amplifier
Configuration Vehicle Type tab under .
Note: The interface provides a 12-volt 1-amp output to turn on aftermarket amp(s). If installing
multiple amps, an SPDT automotive relay will be required if the amp turn-on current of all amps
combined exceeds 1-amp. Use Metra part number E-123 (sold separately) for best results.
1. Remove the factory radio*, then unplug all connectors.
2. AX-DSPX-FD1 vehicle T-harness Install the to the vehicle and make all necessary
connections, but leave the amp turn-on wire disconnected.
3. AX-DSPX-FD1 vehicle T-harness AX-DSPX-FD1 interface Plug the to the .
4. AX-DSPX-FD1 interface harness AX-DSPX-FD1 interface Plug the to the .
5. AXDSP-X app Google Play Store Apple App Store Download and install the from the or .
6. Bluetooth Open the app then select the ® Connection tab. Follow the instructions to pair
the mobile device to the interface. Refer to for more information.Page 5
7. Configuration Lock Down Scroll to the tab then select the vehicle type. Press the **
button to save the configuration. Refer to for more information.Page 6
8. Connect the amp turn-on wire.
9. Lock Down Adjust the settings in the app as desired. Press the ** button to save any
new configurations.
* Refer to for dash disassembly. If Metra makes a dash kit for the
metraonline.com
vehicle, disassembly will be within those instructions.
** Anytime the interface is locked down the key must be cycled off then back on.
INSTALLATION OPTIONS INSTALLATION
• Easy behind the radio installation with pre-wired harness
• Bass knob included for level control of subwoofer amp
• Settings adjusted via Bluetooth®
in a smart device application (tablet or mobile phone), compatible
with both Android and Apple devices
• Read, write, and store configurations for future recall
• Password protect feature available in the mobile app
• Micro-B USB updatable
FEATURES CO NT.
3
REV. 8/5/24 INSTAXDSPX-FD1
Factory Radio
Keep Connected
Any remaining wires
tape off and disregard
Black - Ground
Orange - Control
Bass Knob
Factory Radio Harness
Interface
Any remaining wires
tape off and disregard
Vehicle T-Harness
Blue/White - Amp Turn-On Wire
These outputs can be used for
additional sub amps, or for adding
onto the em at a later datesyst
RCA Jacks
(sold separately)
ADDING A SUBWOOFER TO A FACTORY SYSTEM
