Seite 1/8

AXDSPX-CH5

I N S T A L L A T I O N I N S T R U C T I O N S

INTERFACE FEATURES

TOOLS & INSTALLATION ACCESSORIES REQUIRED

• Crimping tool and connectors, or solder gun,

solder, and heat shrink • Tape • Wire cutter

• Zip-ties • Multimeter

TABLE OF CONTENTS

Installation & Installation Options 2 ........................

Connections 3-4 ........................................................

Rebooting the U-Connect Radio 5 ..........................

Mobile App: Quick Setup 6-7 ...................................

Specifications 8 .........................................................

APPLICATIONS

Visit for current application listAxxessInterfaces.com

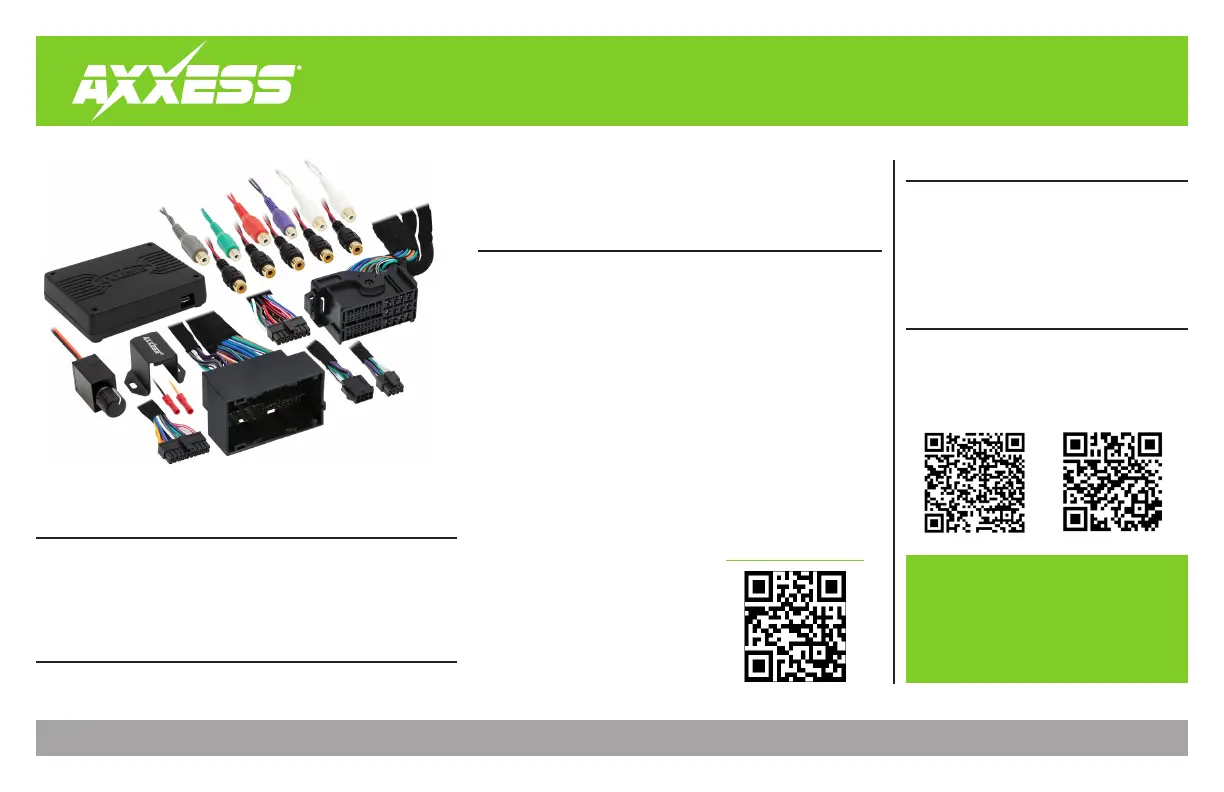

INTERFACE COMPONENTS

• AXDSPX-CH5 interface

• AXDSPX-CH5 interface harness

• AXDSPX-CH5 vehicle T-harness • Bass knob

Chrysler DSP Interface (with Pre-Wired Harness)

2014-Up

www.MetraOnline.com

MetraOnline.com may be used to assist

with dash assembly instructions. Simply

enter your Year, Make, Model vehicle

into the vehicle fit guide and look for the

Dash Kit Installation Instructions.

• Includes a DSP (Digital Signal Processor)

• Selectable 31 Band Graphic EQ or 5 Band Parametric EQ

• Designed for both amplified and non-amplified vehicles

• 10 individually assignable outputs

• Independent equalization on each of the 10 outputs

• Independent high pass, low pass, and band pass filters

• Each channel can be delayed independently up to 10ms

• Clipping detection and limiting circuits

• Retains factory parking sensor chimes

• Retains U-Connect voice prompts

• Adjustable chime level

(Features continued on next page)

Google Play Store Apple App Store

iOS 12.1 or higher

ATTENTION: With the key out of the ignition, disconnect

the negative battery terminal before installing this product.

Ensure that all installation connections, especially the air

bag indicator lights, are plugged in before reconnecting

the battery or cycling the ignition to test this product.

NOTE: Refer also to the instructions included with the

aftermarket accessory before installing this device.

Adding a subwoofer to a factory system:

This feature offers the ability to add a subwoofer to a factory system, whether amplified or non-

amplified (Refer to Page 3)

Adding a full-range amp and subwoofer to a factory system:

This feature offers the ability to add a full-range amp and sub to a factory system, whether

amplified*or non-amplified. (Refer to )Page 4

* For amplified models the amp must be bypassed/unplugged, and chosen in With OE Amplifier

the tab under Vehicle Type. Use either Axxess (sold Configuration AXABH-CH2 or AXABH-CH4

separately) to bypass the amp for best results.

Note: The interface provides a 12-volt 1-amp output to turn on aftermarket amp(s). If installing

multiple amps, an SPDT automotive relay will be required if the amp turn-on current of all amps

combined exceeds 1-amp. Use Metra part number E-123 (sold separately) for best results.

1. Disassemble the dash, unplug all connectors, and then remove the factory radio.*

2. AXDSPX-CH5 vehicle T-harness Install the to the vehicle and make all necessary

connections, but leave the amp turn-on wire disconnected.

3. AXDSPX-CH5 vehicle T-harness AXDSPX-CH5 interface Plug the to the .

4. AXDSPX-CH5 interface harness AXDSPX-CH5 interface Plug the to the .

Download and install the from the or AX-DSP-XL app Google Play Store Apple

App Store.

6. Bluetooth Open the app then select the ® Connection tab. Follow the instructions to

pair the mobile device to the interface. Refer to for more information.Page 6

7. Configuration Lock Down Scroll to the tab then select the vehicle type. Press the **

button to save the configuration. Refer to for more information.Page 7

8. Connect the amp turn-on wire.

9. Lock Down Adjust the settings in the app as desired. Press the ‡ button to save any

new configurations.

* For dash disassembly instructions, refer to metraonline.com. Enter the year, make,

and model of the vehicle in the Vehicle Fit Guide and find instructions under Metra

Radio Install kits.

** Anytime the interface is locked down the key must be cycled off then back on.

INSTALLATION OPTIONS INSTALLATION

• Easy behind the radio installation with pre-wired harness

• Bass knob included for level control of subwoofer amp

• Settings adjusted via Bluetooth® in a smart device application (tablet or mobile phone), compatible

with both Android and Apple devices

• Read, write, and store configurations for future recall

• Password protect feature available in the mobile app

• USB Micro B updatable

FEATURES CO NT.

REV. 7/24/24 INSTAXDSPX-CH5

ADDING A SUBWOOFER TO A FACTORY SYSTEM

Factory Radio

Keep Connected

Any remaining wires

tape off and disregard

Black - Ground

Orange - Control

Bass Knob

Factory Radio Harness

Interface

Any remaining wires

tape off and disregard

Vehicle T-Harness

Blue/White - Amp Turn-On Wire

These outputs can be used for

additional sub amps, or for adding

onto the em at a later datesyst

RCA Jacks

(sold separately)
