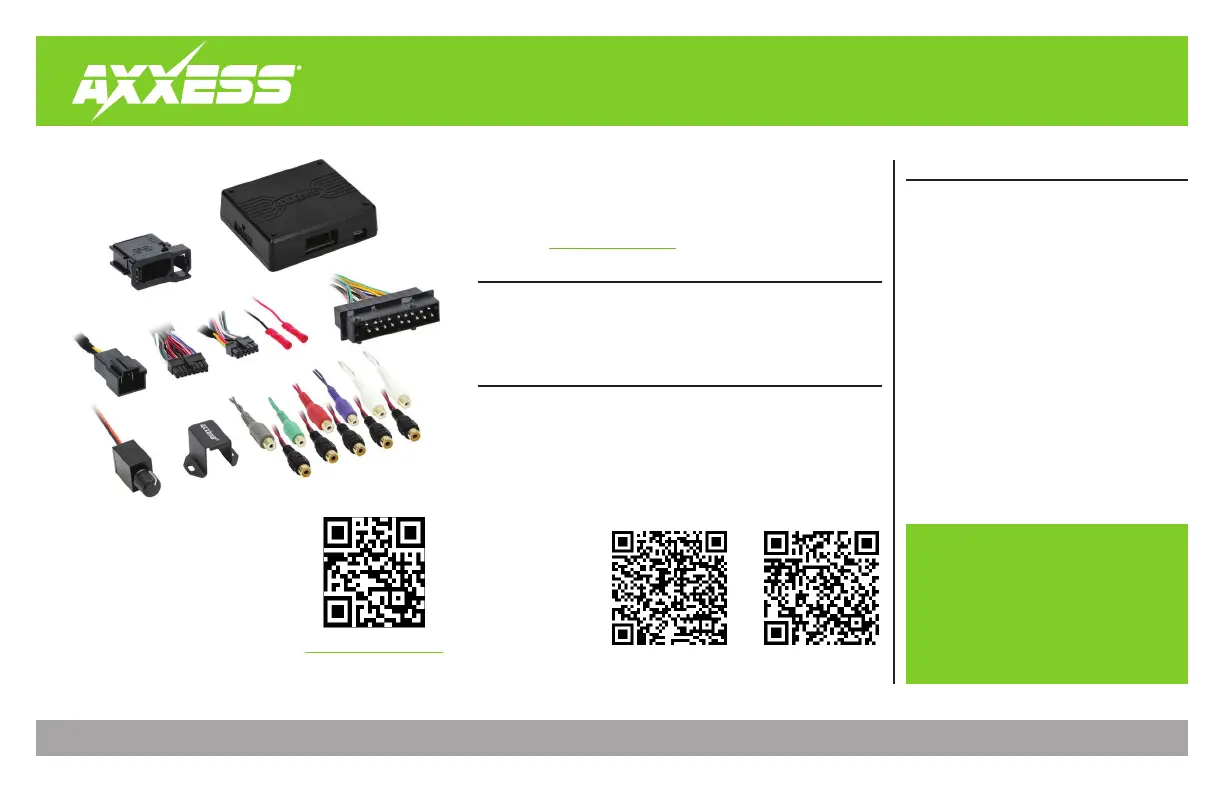

AXDSPX-BMWM25
I N S T A L L A T I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2024 METRA ELECTRONICS CORPORATION REV. 5/10/24 INSTAXDSPX-BMWM25
BMW MOST25® DSPX Interface
with Amplifier Bypass Harness 2010-2020
INTERFACE COMPONENTS
• AXDSPX-BMWM25 interface • AXDSPX-BMWM25 harness
• AXBK-1 Bass Knob • LD-MOSTCAP •BMWM25
Visit for a current application list
axxessinterfaces.com
TOOLS & INSTALLATION ACCESSORIES REQUIRED
• Crimping tool and connectors, or solder gun, solder, and heat shrink
• Tape • Wire cutter • Zip-ties
• Multimeter • Tone generator
TABLE OF CONTENTS
Interface Features 2 ..................................................
Connections: Adding a Full-Range Amp
& Sub to a Factory System 3 .................................
Installing the Fiber Optic Cable.............................4
Installation 5-6 .........................................................
Quick Setup Steps: AX-DSP-XL App 7 .......................
Specifications 8 .........................................................
Troubleshooting..................................................... 9
LED Feedback 9 .........................................................
Speaker Assignment QR Code 10 .............................
iOS 12.1 or higher
www.MetraOnline.com
MetraOnline.com may be used to assist with dash
assembly instructions. Simply enter your Year,
Make, Model vehicle into the vehicle fit guide and
look for the Dash Kit Installation Instructions.
Visit for more detailed AxxessInterfaces.com
information about the product and
up-to-date vehicle specific applications
Google Play Store Apple App Store
For refer to Enter the year, make, and model of the vehicle in theDash Disassembly Instructions, metraonline.com. Vehicle Fit Guide for Radio Install kits.
ATTENTION: With the key out of the ignition,
disconnect the negative battery terminal before
installing this product. Ensure that all installation
connections, especially the air bag indicator lights, are
plugged in before reconnecting the battery or cycling
the ignition to test this product.
NOTE: Refer also to the instructions included with the
aftermarket accessory before installing this device.
2
• Includes a DSP (Digital Signal Processor)
• Designed for MOST® amplified sound systems
• Selectable 31 Band graphic EQ or 5 Band Parametric EQ
• 10 individually assignable outputs
• Independent equalization on each of the 10 outputs
• Independent high pass, low pass, and bandpass filters
• Each channel can be delayed independently up to 10ms
• Clipping detection and limiting circuits
INTERFACE FEATURES
INTERFACE FEATURES
• Bass knob included for level control of subwoofer amp
•
Settings adjusted via Bluetooth® in a smart device application (tablet
or mobile phone), compatible with both Android and Apple devices
• Read, write, and store configurations for future recall
• Password protect feature available in the mobile app
• Includes an amplifier bypass harness
• Micro-B USB updatable
3
REV. 5/10/24 INSTAXDSPX-BMWM25
CONNECTIONS: ADDING A FULL-RANGE AMP & SUB TO A FACTORY SYSTEM
An SPDT relay, Metra part number
E-123, must be used if the amp turn-on
current of all amps exceed 1-amp.
Factory Amp
(must be removed)
RCA Jacks
(sold separately)
Speaker Assignment QR Code
located on page 10 of instructions
AXBK-1 CH 6
CH 10
CH 7
CH 8
CH 9
Factory Amp Harness
AXBK-1
Not Used
OR
AA
B
PWR
CONNECTION TYPE
Speaker Assignment QR Code
located on page 10 of instructions
PWR CONNECTION TYPE
Type: A
1 Series
2 Series
Type: B
3-7 Series
X Series
RCA Jacks
(sold separately)
