Seite 1/6
AXDSPX-A2B1
I N S TA L L A T I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2024 METRA ELECTRONICS CORPORATION REV. 2/13/24 INSTAXDSPX-A2B1
INTERFACE FEATURES
INTERFACE COMPONENTS
TOOLS REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink • Tape • Wire cutter
• Zip ties
TABLE OF CONTENTS
Connections 2-3 ........................................................
Installation 4 .............................................................
LED Feedback 6 .........................................................
A2B Data Interface with Amplifier
Bypass
Harness & DSP
• Designed for Sony A2B amplifiers
• A2B data interface with AXDSP-X (digital signal processor) built-in
• Includes an amplifier bypass harness
• Retains factory chimes including parking sensor chimes
• Retains SYNC voice prompts
• All chimes/voice prompts go through the aftermarket amplifier
and/or cluster
• Adjustable chime level
• Micro-B USB updatable
• AXDSPX-A2B1 interface
• AXDSPX-A2B1 harness
• AXDSPX-A2B1 interface harness (male connectors: 12-pin, 16-pin)
• Amplifier bypass harness (female connectors: 16-pin, 16-pin)
• Radio T-harness
• AXBK-1
Google Play Store
Apple App Store
iOS 12.1 or higher
ATTENTION: With the key out of the ignition,
disconnect the negative battery terminal before
installing this product. Ensure that all installation
connections, especially the air bag indicator lights,
are plugged in before reconnecting the battery or
cycling the ignition to test this product.
NOTE: Refer also to the instructions included with
the aftermarket radio.
Metraonline.com
For refer to Enter the year, make, and model of the vehicle in theDash Disassembly Instructions, Metraonline.com. Vehicle Fit Guide for Radio Install kits.
Visit for current application list. Axxessinterfaces.com
Visit and for harness and interface options.MetraOnline.com Axxessinterfaces.com
2

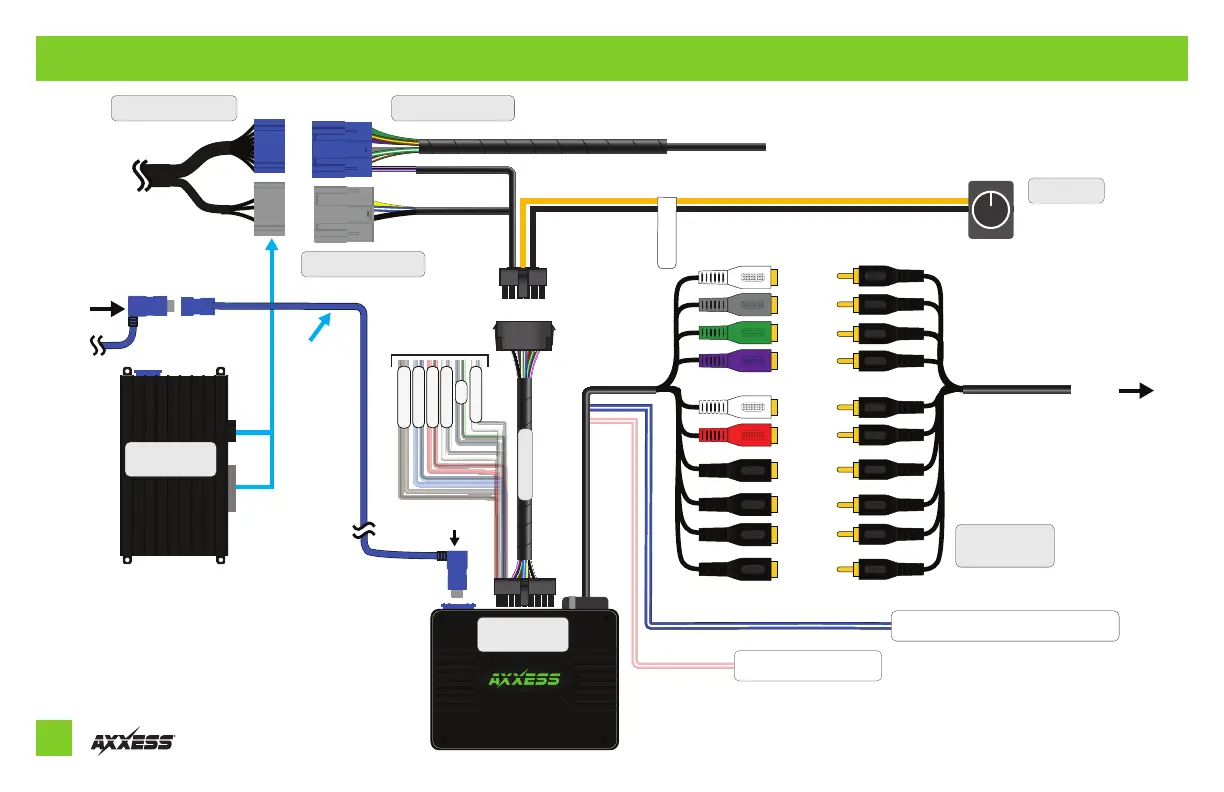

CONNECTIONS TO BE MADE AT THE FACTORY AMPLIFIER’S LOCATION
Factory Amp Harness
Factory Amp
(must be removed)
AXDSP-A2B1
Interface
AXBX-1
Amp Bypass Harness
AXDSP Input Harness
RCA Jacks
(sold separately)
AXBK-1
Blue/White - Amp Turn-On Wire
Red/White - Not Used
To Aftermarket
Amplifiers
Channel Programming
is done through the
AXDSP-XL App
CH1
CH2
CH3
CH4
CH5
CH6
CH7
CH8
CH9
CH10
Remote Bass Knob
Level Control for Ch5 and Ch6
A2B-EXT
Extension Cable
LD-A2B-ADAPT
Right 2 input
Center input
18-Pin
12-Pin
Left 2 input
Right 1 input
Left 1 input
TBD
NOT USED
Factory Amplifier Locations
Please see Speaker Assignment QR Code
located on the back page of instructions.
Please see Speaker Assignment QR Code
located on the back page of instructions.
3
REV. 2/13/24 INSTAXDSPX-A2B1
1
14
13
2 12
24
T-Harness
Installation
Location
Interface kit includes a T-harness to tap into the
speakers powered from the vehicle radio chassis
22 Pin
Located Behind Dash
Factory Radio Chassis
Wire Insertion View
Viewed from where the wires go into the connector
LD-FDSPK1
Factory Radio Harness
To OE Speakers
Run speaker wires to aftermarket amplifier(s)
NOTE: For Factory Amplifier Locations,
please see Speaker Assignment QR Code
located on the back page of these instructions.
CONNECTIONS TO BE MADE AT THE FACTORY RADIO’S LOCATION (CONT)
