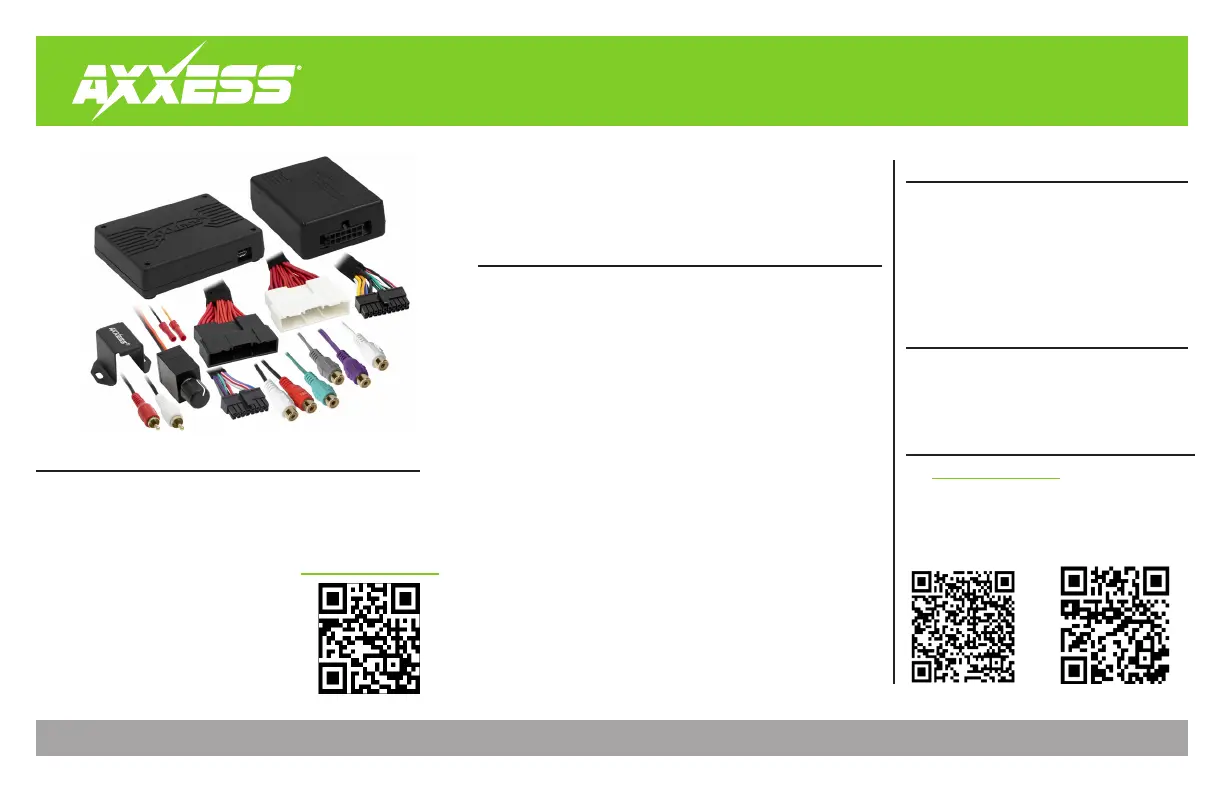

AXDSPL-HK4
I N S T A L L A T I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2024 METRA ELECTRONICS CORPORATION REV. 3/15/24 INSTAXDSPL-HK4
Google Play Store Apple App Store
iOS 12.1 or higher
INTERFACE FEATURES
INTERFACE COMPONENTS
TOOLS & INSTALLATION ACCESSORIES REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink • Tape • Wire cutter
• Zip ties • Multimeter
TABLE OF CONTENTS
Connections 2 ............................................................
Installation 3 .............................................................
AXDSPL-BT Installation...........................................4
AXDSPL-SP Installation...........................................5
Mobile App 6-7 .........................................................
Specifications /Speaker Assignment QR code......8
Hyundai/Kia DSP Interface With Amy Bypass
Harness
2017-Up
• Includes a DSP (Digital Signal Processor)
• 15 Band graphic EQ
• 4 inputs and 6 individually assignable outputs
• Independent equalization for front, rear, and sub
• Selectable low pass, band pass, and high pass filters
• Selectable crossover slopes; 12db, 24db, 36db, 48db
• Each channel can be delayed independently up to 10ms
• Clipping detection and limiting circuits
• Retains BlueLink/UVO voice prompts, with adjustable level
• Designed for SPDIF amplified models
• Includes an amp bypass harness
• Internal header port for adding interface modules
• Bass knob included for level control of subwoofer amp
• Settings adjusted via Bluetooth® in a smart device application (tablet
or mobile phone), compatible with both Android and Apple devices
• Read, write, and store configurations for future recall
• Password protect feature available in the mobile app
• Micro-B USB updatable
• AXDSPL-HK4 interface
• LD-DSP-HYKIA4 harness
• Amplifier bypass harness (integrated)
• AXBK-1 (bass knob)
APPLICATIONS
Visit
AxxessInterfaces.com
for current application list
www.MetraOnline.com
MetraOnline.com may be used to assist with
dash assembly instructions. Simply enter your
Year, Make, Model vehicle into the vehicle fit
guide and look for the Dash Kit Installation
Instructions.
2

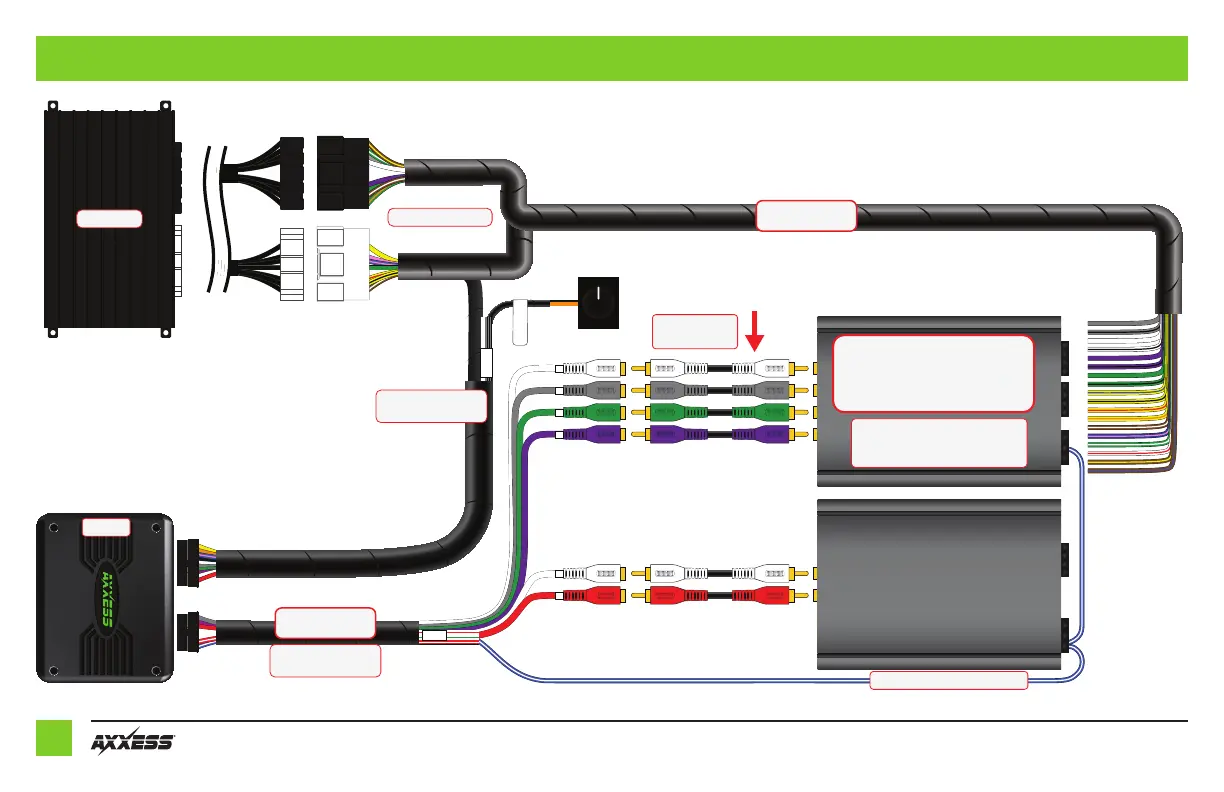

CONNECTIONS
4
3
2
1
5
5
TBA
Blue/White - Amp Turn-On Wire
Interface
RCA Jacks
(sold separately)
Amp Bypass Harness
BONK SSAB
Any remaining wires
tape off and disregard
TBA
Factory Amp
An SPDT la Metra part numberre y,
E-123, is quired if the amp turn-onre
current of all amps eds 1-amp.exce
Please see Speaker Assignment
QR Code located on page 7 of
instructions
LD-LT-HYKIA4
LD-DSP-LT-OUT
Any remaining wires
tape off and disregard
8
3
REV. 3/15/24 INSTAXDSPL-HK4
1. Locate the factory amp. Unplug and remove the amp.
2. AXDSPL-HK4 amp bypass harness Install the to the vehicle and make all necessary
connections, but leave the amp turn-on wire disconnected.
3. AXDSPL-HK4 amp bypass harness AXDSPL-HK4 interface Connect the to the .
4. AXDSPL-HK4 interface harness AXDSPL-HK4 interface Connect the to the .
5.
Download and install the from the or AX-DSP-XL app Google Play Store Apple App Store
.
6.
Cycle the ignition on.
7. Bluetooth Connection Open the app then select the tab. Follow the instructions to
pair the mobile device to the interface. Refer to page 8 for more information.
8. Configuration Lock Down Scroll to the tab then select the vehicle type. Press the ‡
button to save the configuration. Refer to page 9 for more information.
9. Connect the amp turn-on wire.
† Refer to Metra online for dash disassembly. If Metra makes a dash kit for the vehicle,
disassembly will be within those instructions.
‡ Anytime the interface is locked down the key must be cycled off then back on.
10. Identify Click the button to confirm the interface is connected properly. A chime will
be heard from the front left speaker. Test all functions of the installation for proper
operation.
Note: The outputs may need to be configured within the tab.Outputs
11. Lock Down Adjust the settings in the app as desired. Press the ‡ button to save any
new configurations.
‡ Anytime the interface is locked down the key must be cycled off then back on
The interface provides a 12-volt 1-amp output to turn on aftermarket amp(s). If Note:
installing multiple amps, an SPDT automotive relay will be required if the amp turn-
on current of all amps combined exceeds 1-amp. Use Metra part number E-123 (sold
separately) for best results.
INSTALLATION
(Figure A)
(Figure B)
