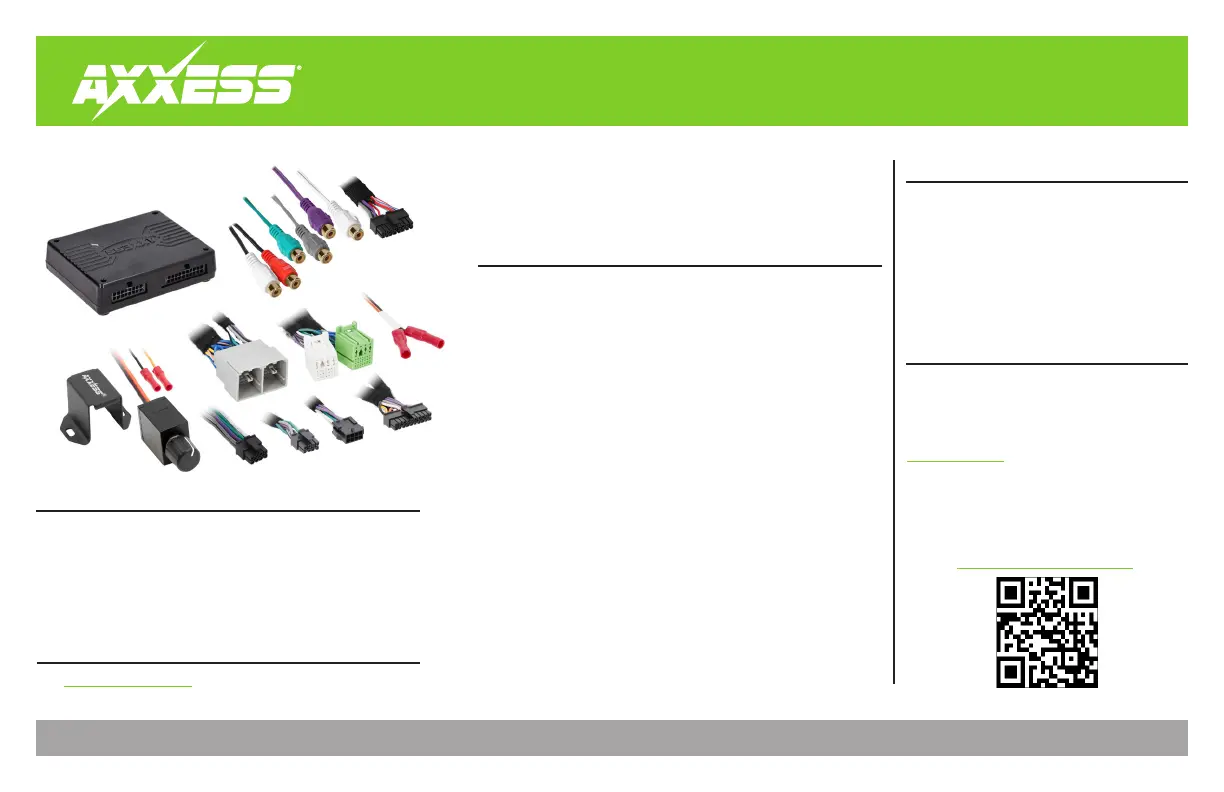

AXDSPL-GM33

I N S T A L L A T I O N I N S T R U C T I O N S

INTERFACE FEATURES

INTERFACE COMPONENTS

TOOLS & INSTALLATION ACCESSORIES REQUIRED

• Crimping tool and connectors, or solder gun,

solder, and heat shrink • Tape • Wire cutter

• Zip ties • Multimeter

TABLE OF CONTENTS

Installation Options 2 ...............................................

Installation 2 .............................................................

Connections 3-4 ........................................................

AXDSPL-BT Installation...........................................5

AXDSPL-SP Installation...........................................6

Mobile App 7-8 .........................................................

Specifications 9 .........................................................

GM DSP Interface With Pre-Wired Harness

2021-Up

• Includes a DSP (Digital Signal Processor)

• 15 Band graphic EQ

• 4 inputs and 6 individually assignable outputs

• Independent equalization for front, rear, and sub

• Selectable low pass, band pass, and high pass filters

• Selectable crossover slopes; 12db, 24db, 36db, 48db

• Each channel can be delayed independently up to 10ms

• Clipping detection and limiting circuits

• Retains factory parking sensor chimes

• Retains OnStar® voice prompts

• Adjustable chime level

• Designed for non-amplified models

• Easy behind the radio installation with pre-wired harness

• Internal header port for adding interface modules

• Bass knob included for level control of subwoofer amp

• Settings adjusted via Bluetooth® in a smart device application (tablet

or mobile phone), compatible with both Android and Apple devices

• Read, write, and store configurations for future recall

• Password protect feature available in the mobile app

• Micro-B USB updatable

• AXDSPL-GM33 interface

• AXDSPL-GM33 output harness (LD-AX-DSP-OUT2)

• AXDSPL-GM33 vehicle T-harness (LD-DSP-GM33)

• Resistor Pad (LD-DSP-RPAD2)

• Bass knob (LD-BASSKNOB)

APPLICATIONS

Visit for current application list

Axxessinterfaces.com

www.MetraOnline.com

MetraOnline.com may be used to assist with dash

assembly instructions. Simply enter your Year,

Make, Model vehicle into the vehicle fit guide and

look for the Dash Kit Installation Instructions.

Adding a sub to a factory system:

This feature offers the ability to add a subwoofer to a factory system. (refer to page 3)

Adding a full-range amp & sub to a factory system:

This feature offers the ability to add a full-range amp and sub to a factory system. (refer to page 4)

16-pin header port:

Inside the interface is a 16-pin header port for adding optional modules (sold separately). Page 5

and 6 will show the installation and use of these modules.

• - Bluetooth streaming interfaceAXDSPL-BT

• - Toslink digital outputAXDSPL-SP

Note: The interface provides a 12-volt 1-amp output to turn on aftermarket amp(s). If installing

multiple amps, an SPDT automotive relay will be required if the amp turn-on current of all amps

combined exceeds 1-amp. Use Metra part number E-123 (sold separately) for best results.

1. Remove the factory radio †, then unplug all connectors.

2. AXDSPL-GM33 vehicle T-harness Install the to the vehicle and make all necessary

connections, but leave the amp turn-on wire disconnected.

3. AXDSPL-GM33 vehicle T-harness AXDSPL-GM33 interface Plug the to the .

4. AXDSPL-GM33 interface harness AXDSPL-GM33 interface Plug the to the .

Download and install the from the or AX-DSP-XL app Google Play Store Apple App

Store

Cycle the ignition on.

7. Bluetooth Connection Open the app then select the tab. Follow the instructions to

pair the mobile device to the interface. Refer to page 7 for more information.

8. Configuration Lock Down Scroll to the tab then select the vehicle type. Press the ‡

button to save the configuration. Refer to page 8 for more information.

9. Connect the amp turn-on wire.

10. Adjust the settings in the app as desired. Press the ‡ button to save any Lock Down

new configurations.

† Refer to Metra online for dash disassembly. If Metra makes a dash kit for the vehicle,

disassembly will be within those instructions.

‡ Anytime the interface is locked down the key must be cycled off then back on

INSTALLATION OPTIONS INSTALLATION

REV. 1/31/24 INSTAXDSPL-GM33

Factory Radio

These outputs can be used for

additional sub amps, or for adding

onto the system at a later date

RCA Jacks

(sold separately)

Keep Connected

Any remaining wires

tape off and disregard

Black - Ground

Bass Knob

Factory Radio Harness

Interface

Any remaining wires

tape off and disregard

Vehicle T-Harness

Blue/White - Amp Turn-On Wire

Interface Harness

ADDING A SUB TO A FACTORY SYSTEM
