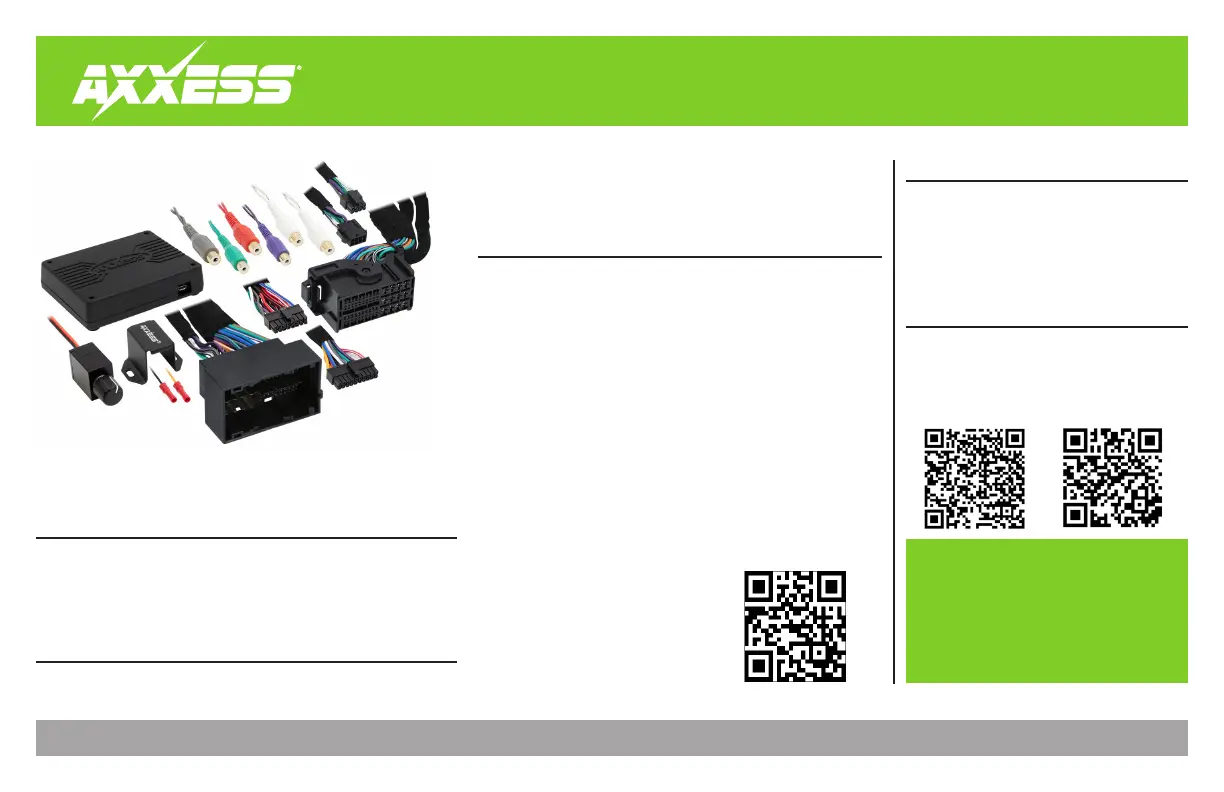

AXDSPL-CH5

I N S T A L L A T I O N I N S T R U C T I O N S

INTERFACE FEATURES

TOOLS & INSTALLATION ACCESSORIES REQUIRED

• Crimping tool and connectors, or solder gun,

solder, and heat shrink • Tape • Wire cutter

• Zip-ties • Multimeter

TABLE OF CONTENTS

Installation & Installation Options 2 ........................

Connections 3-4 ........................................................

Rebooting the U-Connect Radio 5 ..........................

Mobile App: Quick Setup 6-7 ...................................

Specifications 8 .........................................................

• Includes a DSP (Digital Signal Processor)

• Selectable 15 Band graphic EQ or 5 Band Parametric EQ

• Designed for both amplified and non-amplified models

• 4 inputs and 6 individually assignable outputs

• Independent equalization for front, rear, and sub

• Selectable low pass, band pass, and high pass filters

• Selectable crossover slopes; 12db, 24db, 36db, 48db

• Each channel can be delayed independently up to 10ms

• Clipping detection and limiting circuits

• Retains factory parking sensor chimes

• Retains U-Connect voice prompts

(Features continued on next page)

APPLICATIONS

Visit for current application listAxxessInterfaces.com

INTERFACE COMPONENTS

• AXDSPL-CH5 interface

• AXDSPL-CH5 interface harness

• AXDSPL-CH5 vehicle T-harness • Bass knob

Chrysler DSP Interface (with Pre-Wired Harness)

2014-Up

www.MetraOnline.com

MetraOnline.com may be used to assist

with dash assembly instructions. Simply

enter your Year, Make, Model vehicle

into the vehicle fit guide and look for the

Dash Kit Installation Instructions.

Google Play Store Apple App Store

iOS 12.1 or higher

ATTENTION: With the key out of the ignition, disconnect

the negative battery terminal before installing this

product. Ensure that all installation connections,

especially the air bag indicator lights, are plugged in

before reconnecting the battery or cycling the ignition

to test this product.

NOTE: Refer also to the instructions included with the

aftermarket accessory before installing this device.

INSTALLATION OPTIONS INSTALLATION

FEATURES CO NT.

• Adjustable chime level

• Easy behind the radio installation with pre-wired harness

• Internal header port for adding interface modules

• Bass knob included for level control of subwoofer amp

• Settings adjusted via Bluetooth®

in a smart device application (tablet or mobile phone), compatible

with both Android and Apple devices

• Read, write, and store configurations for future recall

• Password protect feature available in the mobile app

• Micro-B USB updatable

1. Disassemble the dash, unplug all connectors, and then remove the factory radio.*

2. AXDSPL-CH5 vehicle T-harness Install the to the vehicle and make all necessary

connections, but leave the amp turn-on wire disconnected.

Note: If installing a full range amp on the front and rear speakers, the resistor pad

harness must be used to present a load to the factory radio. Two are provided with

different value resistors. Use whichever one works and discard the other.

3. AXDSPL-CH5 vehicle T-harness AXDSPL-CH5 interface Plug the to the .

4. AXDSPL-CH5 interface harness AXDSPL-CH5 interface Plug the to the .

Download and install the from the or .AX-DSP-X app Google Play Store Apple App Store

6. Cycle the ignition on.

7. Bluetooth Open the app then select the ® Connection tab. Follow the instructions to

pair the mobile device to the interface. Refer to for more information.Page 6

8. Configuration Lock Down Scroll to the tab then select the vehicle type. Press the **

button to save the configuration. Refer to for more information.Page 7

9. Connect the amp turn-on wire.

10. Lock Down Adjust the settings in the app as desired. Press the ** button to save any

new configurations,

*For dash disassembly instructions, refer to . Enter the year, make, and model metraonline.com

of the vehicle in the Vehicle Fit Guide and find instructions under Metra Radio Install kits.

**Anytime the interface is locked down the key must be cycled off then back on.

Adding a subwoofer to a factory system:

This feature offers the ability to add a subwoofer to a factory system, whether amplified or non-

amplified. (Refer to )Page 3

Adding a full-range amp & subwoofer to a factory system: This feature offers the ability to add a full-

range amp and sub to a factory system, whether amplified*

or non-amplified. (Refer to )Page 4

* For amplified models the amp must be bypassed/unplugged, and chosen in With OE Amplifier

the tab under . Use either Axxess or (sold Configuration Vehicle Type AXABH-CH2 AXABH-CH4

separately) to bypass the amp for best results.

16-pin header port: Inside the interface is a 16-pin header port for adding optional modules

(sold separately).

• - BluetoothAXDSPL-BT ® streaming interface

• - Toslink digital outputAXDSPL-SP

Note: The interface provides a 12-volt 1-amp output to turn on aftermarket amp(s). If installing

multiple amps, an SPDT automotive relay will be required if the amp turn-on current of all amps

combined exceeds 1-amp. Use Metra part number (sold separately) for best results.E-123

REV. 7/24/24 INSTAXDSPL-CH5

ADDING A SUBWOOFER TO A FACTORY SYSTEM

Factory Radio

These outputs can be used for

additional sub amps, or for adding

onto the em at a later datesyst

RCA Jacks

(sold separately)

K deep Connecte

Any remaining wires

tape off and disregard

Black - Ground

Orange - Control

Bass Knob

Factory Radio Harness

Interface

Any remaining wires

tape off and disregard

Vehicle T-Harness

Blue/White - Amp Turn-On Wire

Interface Harness
