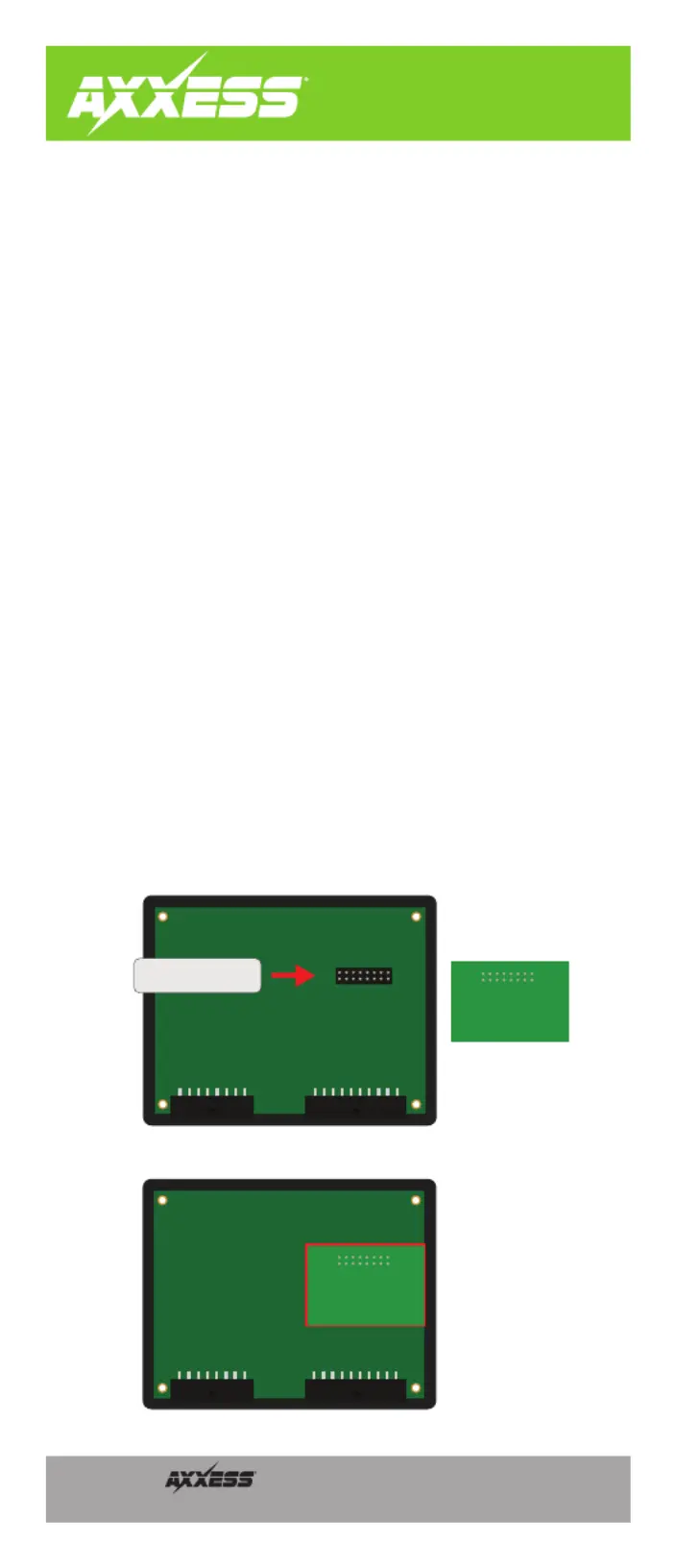

AXDSPL-BT
INSTALLATION I NSTRUC T IONS
REV. 5/1/20
© COPYRIGHT 2020 METRA ELECTRONICS CORPORATION
Integrate • AxxessInterfaces.com
16-pin Header
AX-DSPL-BT
AX-DSPL-BT
The AXDSPL-BT will be used for adding a Bluetooth interface to the
AXDSP-L for playing music files directly to the interface.
While playing music the volume on the phone will be used. As an
option, the AXBK-1 (sold separately) can be used to control the volume
.
The Note: AXBK-1 AXDSP-L included with the can also be used if it
will not be used to control a subwoofer.
1. Unplug the
Important! AXDSP-L from the vehicle.
2. Remove (4) Phillips screws securing the AXDSP-L interface, then
remove the top cover, exposing the circuit board within.
3. Locate the 16-pin header on the circuit board.
4. Referencing how the Bluetooth interface is laid out
Important!
in the picture, carefully line up the header pins to the AXDSPL-BT
Bluetooth interface. Gently press down to secure.
Both interfaces may be damaged if installed wrong.Note:
5. Reinstall the top cover to complete the installation.
AXBK-1 installation:
6. Brown Connect the wire from the AXDSP-L to the wire Orange
from the AXBK-1. Ground the wire from the AXBK-1.Black
