AXDSPH-NI1
I N S TA L L AT I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2022 METRA ELECTRONICS CORPORATION REV. 8/12/22 INSTAXDSPH-NI1
ATTENTION: With the key out of the ignition,
disconnect the negative battery terminal
before installing this product. Ensure that all
installation connections, especially the air
bag indicator lights, are plugged in before
reconnecting the battery or cycling the
ignition to test this product.
NOTE: Refer also to the instructions included
with the aftermarket accessory before
installing this device.
TABLE OF CONTENTS
Installation Options ...............................................2
Installation .............................................................2
20-Pin Harness Pinout...........................................3
Adding A Subwoofer To A Factory System...........4
Adding A Full-Range Amp and
Subwoofer To A Factory System ........................5

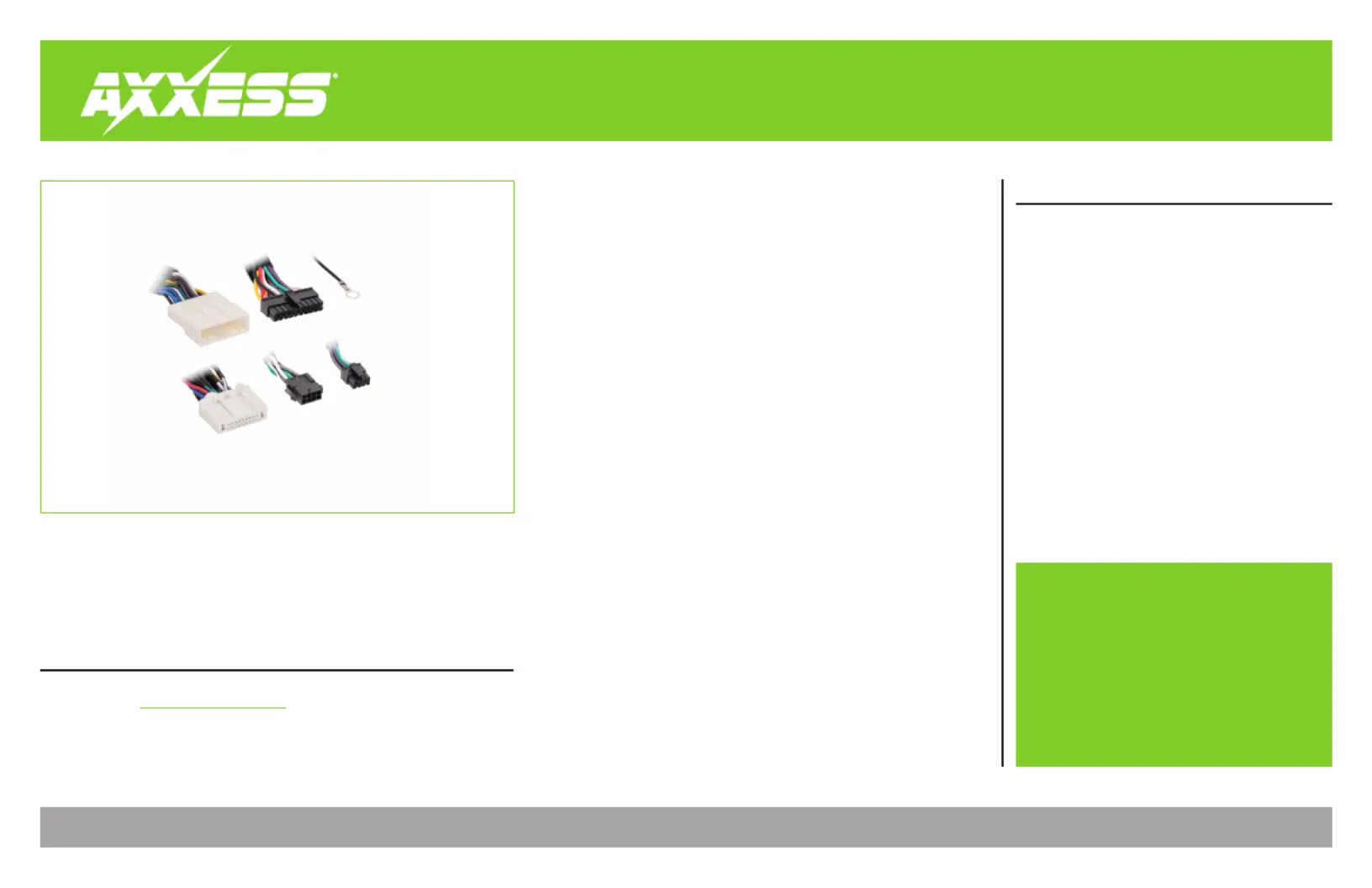

AX-DSP T-Harness
The Axxess T-harness is a basic and simple plug-n-play harness for
easy installation of the AXDSP-X AXDSP-L or (sold separately) for
vehicle specific applications. Most T-harnesses created by Axxess
will have an 8-pin harness, with the speaker wires pinned. If you are
installing a 4-channel amplifier with one of the AXDSP interfaces,
leave these connectors disconnected. The only reason for connecting
these harnesses together would be if the AXDSP interface is being
used for adding a subwoofer amplifier only. Some T-harnesses
require additional wiring and/or installation steps, see page 2.
Refer to page 3 for a pinout legend for the 20-pin harness, and also
additional wiring and notes.
APPLICATIONS
Visit AxxessInterfaces.com for more detailed
information about the product and
up-to-date vehicle specific applications.
Visit Metraonline.com AxxessInterfaces.com or
for harness and interface options.
Visit
AxxessInterfaces.com
for current application list.
2
Adding a subwoofer to a factory system:
The diagram on shows the connections that need to be made to add a subwoofer to the Page 4
factory system.
Note: RCA jacks sold separately.
Adding a full-range of amps and subwoofer to a factory system:
The diagram on shows the connections that need to be made to add: Subwoofer (RCA jacks Page 5
sold separately)
Amplifier (SPDT relay E-123 required) or
Additional Amp (RCA jacks sold separately).
Note: The interface provides a 12-volt 1-amp output to turn on aftermarket amp(s). If installing
multiple amps, an SPDT automotive relay will be required if the amp turn-on current of all amps
combined exceeds 1-amp. Use Metra part number E-123 (sold separately) for best results.
1. Disassemble the dash, unplug all connectors, and then remove the factory radio.†
2. Install the AXDSPH-NI1 vehicle T-harness to the vehicle and make all necessary
connections, but leave the amp turn-on wire disconnected.
3. AXDSPH-NI1 vehicle T-harness AXDSPH-NI1 interface Plug the to the .
4. Plug the AXDSPH-NI1 interface harness to the AXDSPH-NI1 interface.
5. AXDSP-XL app Download the from the Google Play Store or Apple App store.
6. Refer to the AXDSP-X AXDSP-L or for tuning instructions.
For dash disassembly instructions, refer to metraonline.com. Enter the year, make,
and model of the vehicle in the Vehicle Fit Guide and find instructions under Metra
Radio Install kits.
INSTALLATION OPTIONS INSTALLATION
3
REV. 8/12/22 INSTAXDSPH-NI1

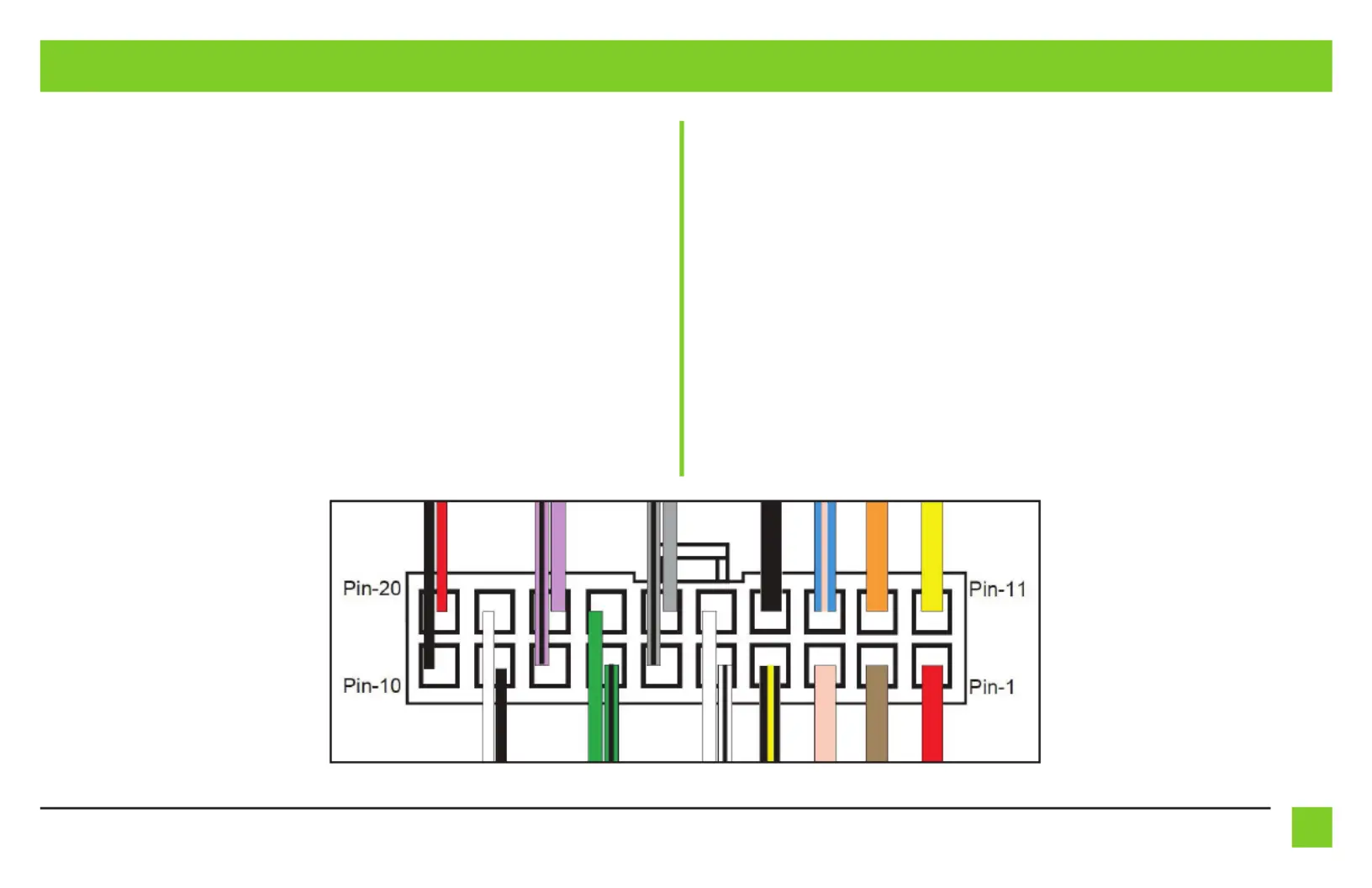

20-PIN HARNESS PINOUT
Pin-1 Accessory PowerRed
Pin-2 Brown Not Applicable
Pin-3 CAN-HI (CAN +)Pink
Pin-4 Black/Yellow Future Use
Pin-5 Front Left Speaker (-)White/Black
Pin-6 Gray/Black
Front Right Speaker (-)
Pin-7 Rear Left Speaker (-)Green/Black
Pin-8 Purple/Black
Rear Right Speaker (-)
Pin-9 RCA Input 5 (-)
Pin-10 RCA Input 6 (-)
Pin-11 Yellow Battery Power
Pin-12 Control Wire for the AX-BASSKNOBOrange
Pin-13 CAN-LO (CAN -)Blue/Pink
Pin-14 GroundBlack
Pin-15 Front Left Speaker (+)White
Pin-16 Front Right Speaker (+)Grey
Pin-17 Rear Left Speaker (+)Green
Pin-18 Rear Right Speaker (+)Purple
Pin-19 RCA Input 5 (+)
Pin-20 RCA Input 6 (+)
Wire View of Harness
