AXDSPH-CH4
I N S TA L L AT I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2023 METRA ELECTRONICS CORPORATION REV. 5/24/23 INSTAXDSPH-CH4
ATTENTION: With the key out of the ignition,
disconnect the negative battery terminal
before installing this product. Ensure that all
installation connections, especially the air
bag indicator lights, are plugged in before
reconnecting the battery or cycling the
ignition to test this product.
NOTE: Refer also to the instructions included
with the aftermarket accessory before
installing this device.
TABLE OF CONTENTS
Installation Options 2 ...............................................
Installation 2 .............................................................
20-Pin Harness Pinout...........................................3
Adding A Subwoofer To A Factory System 4 .........
Adding A Full-Range Amp and
Subwoofer To A Factory System 5 .......................
AX-DSP T-Harness
The is a basic and simple plug-n-play harness for Axxess T-harness
easy installation of the or (sold separately) for AXDSP-X AXDSP-L
vehicle specific applications. Most T-harnesses created by Axxess
will have an 8-pin harness, with the speaker wires pinned. If you are
installing a 4-channel amplifier with one of the , AXDSP interfaces
leave these connectors disconnected. The only reason for connecting
these harnesses together would be if the is being AXDSP interface
used for adding a subwoofer amplifier only. Some T-harnesses
require additional wiring and/or installation steps, see page 2.
Refer to page 3 for a pinout legend for the 20-pin harness, and also
additional wiring and notes.
APPLICATIONS
Visit for more detailed
AxxessInterfaces.com
information about the product and
up-to-date vehicle specific applications.
Visit or Metraonline.com AxxessInterfaces.com
for harness and interface options.
Visit
AxxessInterfaces.com
for current application list.
2
Adding a subwoofer to a factory system:
The diagram on shows the connections that need to be made to add a subwoofer to the Page 4
factory system.
Note: RCA jacks sold separately.
Adding a full-range of amps and subwoofer to a factory system:
The diagram on shows the connections that need to be made to add: Subwoofer (RCA jacks Page 5
sold separately)
Amplifier (SPDT required) orrelay E-123
Additional Amp (RCA jacks sold separately).
Note: The interface provides a 12-volt 1-amp output to turn on aftermarket amp(s). If installing
multiple amps, an SPDT automotive relay will be required if the amp turn-on current of all amps
combined exceeds 1-amp. Use Metra part number (sold separately) for best results. E-123
1. Disassemble the dash, unplug all connectors, and then remove the factory radio.†
2. AXDSPH-CH4 vehicle T-harness Install the to the vehicle and make all necessary
connections, but leave the amp turn-on wire disconnected.
3. AXDSPH-CH4 vehicle T-harness AXDSPH-CH4 interface Plug the to the .
4. AXDSPH-CH4 interface harness AXDSPH-CH4 interface Plug the to the .
5. AXDSP-XL app Download the from the Google Play Store or Apple App store.
6. AXDSP-X AXDSP-L Refer to the or for tuning instructions.
† For dash disassembly instructions, refer to metraonline.com. Enter the year, make,
and model of the vehicle in the and find instructions under Metra Vehicle Fit Guide
Radio Install kits.
INSTALLATION OPTIONS INSTALLATION
3
REV. 5/24/23 INSTAXDSPH-CH4

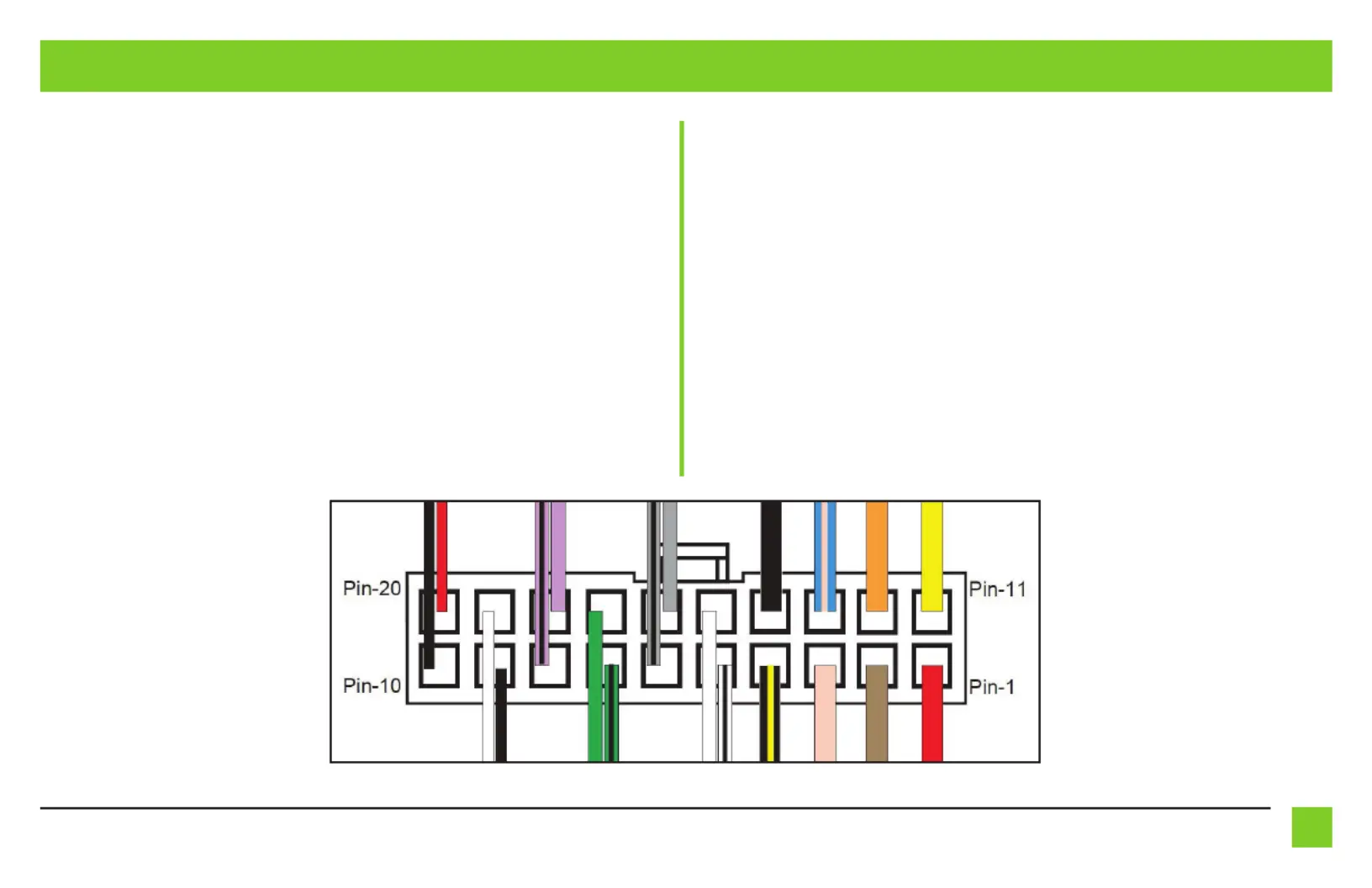

20-PIN HARNESS PINOUT
Pin-1 Accessory PowerRed
Pin-2 Not ApplicableBrown
Pin-3 CAN-HI (CAN +)Pink
Pin-4 Future UseBlack/Yellow
Pin-5 Front Left Speaker (-)White/Black
Pin-6 Gray/Black
Front Right Speaker (-)
Pin-7 Rear Left Speaker (-)Green/Black
Pin-8 Purple/Black
Rear Right Speaker (-)
Pin-9 RCA Input 5 (-)
Pin-10 RCA Input 6 (-)
Pin-11 Battery PowerYellow
Pin-12 Control Wire for the AX-BASSKNOBOrange
Pin-13 CAN-LO (CAN -)Blue/Pink
Pin-14 Black Ground
Pin-15 Front Left Speaker (+)White
Pin-16 Front Right Speaker (+)Grey
Pin-17 Rear Left Speaker (+)Green
Pin-18 Rear Right Speaker (+)Purple
Pin-19 RCA Input 5 (+)
Pin-20 RCA Input 6 (+)
Wire View of Harness
