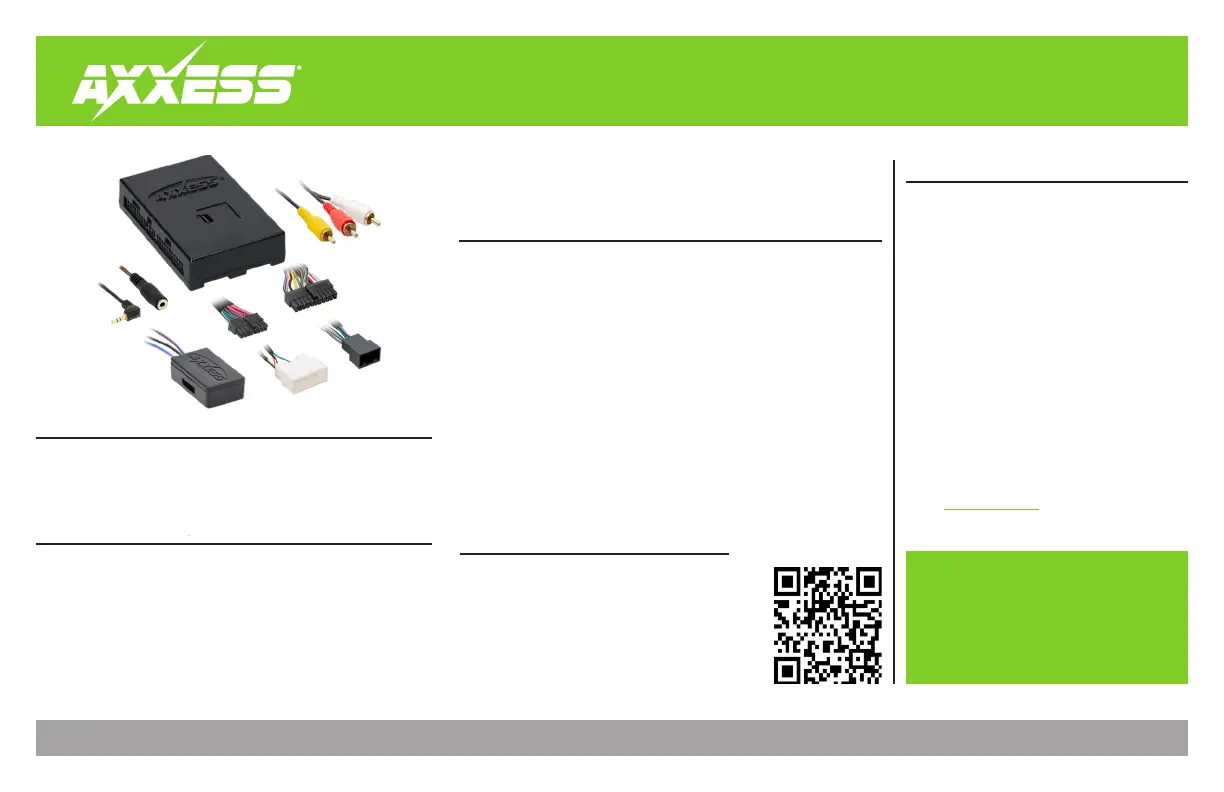

AXDIS-TY3
I N S TA L L A T I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2024 METRA ELECTRONICS CORPORATION REV. 6/12/24 INSTAXDIS-TY3
INTERFACE FEATURES
TOOLS REQUIRED
Toyota Interface with SWC 2018-2021
APPLICATIONS
• Designed for both amplified and non-amplified models
• Provides accessory power (12-volt 10-amp)
• Provides NAV outputs (parking brake, reverse, speed sense)
• Retains the factory AUX-IN jack
• Retains the factory backup camera
• Includes an AXCSD-6V 12-to-6V step-down for the factory camera
• Retains audio controls on the steering wheel
• Retains balance on amplified models
(non-amplifed models retain balance and fade)
• Micro-B USB updatable
TOYOTA
4Runner 2020-Up .......................
Avalon 2019-Up ..........................
C-HR 2019-Up .............................
Camry...........................2018-Up
Corolla 2019-Up ..........................
Highlander 2020-Up ...................
RAV4 2019-Up ............................
Sequoia 2020-Up ........................
Sienna 2018-Up ..........................
Tacoma 2020-Up ........................
Tundra 2020-2021 .........................
INTERFACE COMPONENTS
• AXDIS-TY3 interface • AXDIS-TY3 harness (LD-TYAMP3-SWC)
• Female 3.5mm connector with stripped leads
• AXCSD-6V
TABLE OF CONTENTS
Connections:
LD-TYAMP3-SWC 2 ....................................................
3.5mm Jack Steering Wheel Control Retention
...3
Installing the AXDIS-TY3........................................3
Programming the AXDIS-TY3 4 ...............................
Audio Level Adjustment 4 .......................................
Steering Wheel Control Settings 5-8 ......................
LED Feedback 5 .......................................................
Changing Radio Type 6 ..........................................
Remapping the SWC Buttons 7 .............................
Dual Assignment Instructions
.............................8
Troubleshooting.....................................................9
Product Info
Visit for more detailed information AxxessInterfaces.com
about the product and up-to-date vehicle specific applications.
• Crimping tool and connectors, or solder gun,
solder, and heat shrink
• Small flat-blade screwdriver
• Tape
• Wire cutter
• Zip ties
ATTENTION: With the key out of the ignition, disconnect
the negative battery terminal before installing this product.
Ensure that all installation connections, especially the air
bag indicator lights, are plugged in before reconnecting the
battery or cycling the ignition to test this product.
NOTE: Refer also to the instructions included with the
aftermarket accessory before installing this device.
2

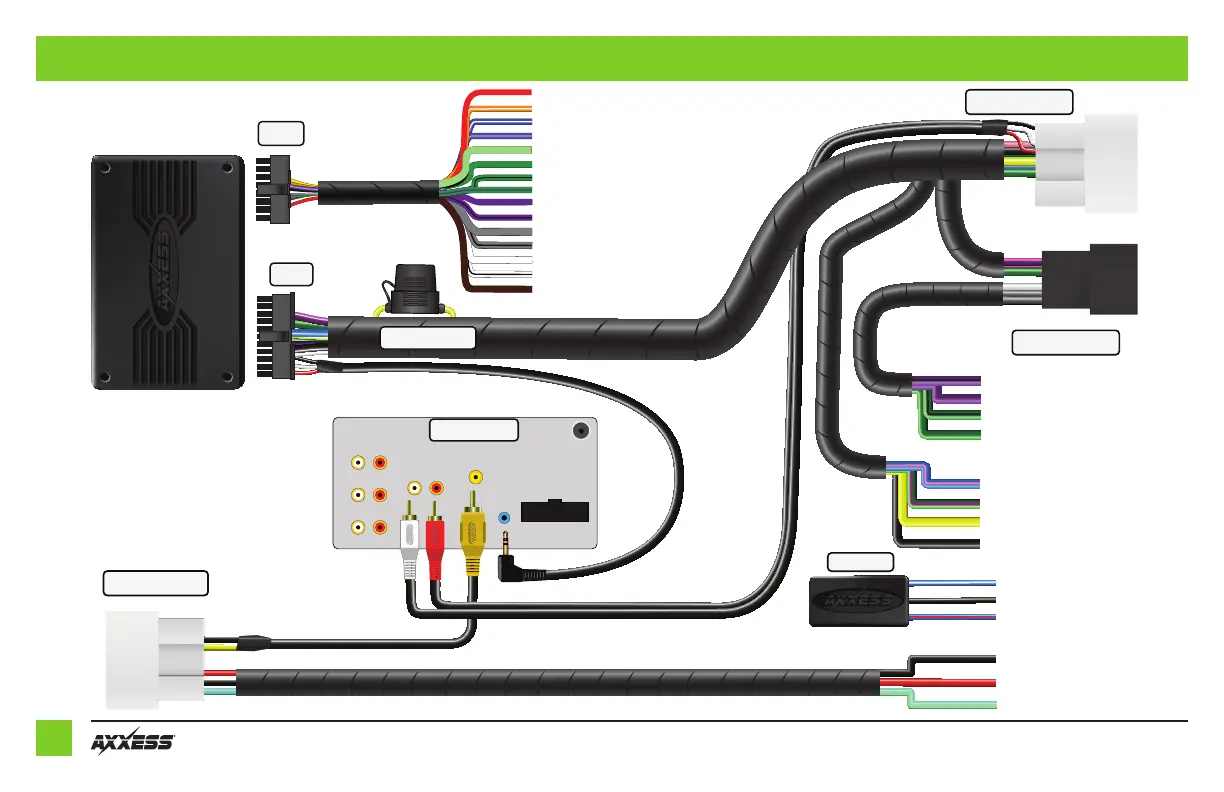

CONNECTIONS: LD-TYAMP3-SWC
Red - Accessory
Orange/White - Not Used
Blue/White - AMP turn on
Blue/Pink - Not Used
Light Green - Not Used
Green - Not Used
Green/Black - Not Used
Green/Purple - Not Used
Front
Rear
Sub
AUX-IN
Rear View
SWC
Aftermarket Radio
(Your radio’s features may vary)
Yellow - Battery wire
Black - Ground wire
Blue/Pink - VSS
Green/Purple - Reverse backup camera
LD-2NAVAMP
16-Pin
Purple - Not Used
Purple/Black - Not Used
Gray - Front Right Speaker +
Gray/Black - Front Right Speaker -
White - Front Left Speaker +
White/Black - Front Left Speaker -
Brown - Not Used
Purple/Black - Rear Right Speaker -
Purple - Rear Right Speaker +
Green/Black - Rear Left Speaker -
Green - Rear Left Speaker +
Black - Camera Ground
Red - Camera Power 6V
Light Green - E-Brake
Vehicle Connectors
LD-TYAMP3-SWC
22-Pin
AXCSD-6V
Blue/White - Reverse trigger
Black - Chassis ground
Blue/Red - 6V CAM PWR
Radio Connections
Vehicle Connector
3
REV. 6/12/24 INSTAXDIS-TY3
CONNECTIONS (CONT) INSTALLING THE AXDIS-TY3
3.5mm jack steering wheel control retention:
The 3.5mm jack is to be used to retain audio controls on the steering wheel.
• For the radios listed below: Connect the
female 3.5mm connector with stripped leads
, to the male
3.5mm SWC jack from the
AXDIS-TY3 harness
. Any remaining wires tape off and disregard.
• Eclipse: Brown Brown/WhiteConnect the steering wheel control wire, normally , to the
wire from the connector. Then connect the remaining steering wheel control wire, normally
Brown/White Brown, to the wire from the connector.
• Metra OE: (Gray) Brown Connect the steering wheel control Key 1 wire to the wire.
• Kenwood or select JVC with a steering wheel control wire: Blue/Yellow Connect the wire to
the wire.Brown
If the Kenwood radio auto detects as a JVC, manually set the radio type to Kenwood. Note:
See the instructions under changing radio type.
• XITE: Brown Connect the steering wheel control SWC-2 wire from the radio to the wire.
• Parrot Asteroid Smart or Tablet: Connect the 3.5mm jack into the AXSWCH-PAR (sold
separately), then connect the 4-pin connector from the AXSWCH-PAR into the radio.
The radio must be updated to rev. 2.1.4 or higher software.Note:
• Universal “2 or 3 wire” radio: Connect the steering wheel control wire, referred to as Key-A
or SWC-1, to the wire from the connector. Then connect the remaining steering wheel Brown
control wire, referred to as Key-B or SWC-2, to the wire from the connector. If Brown/White
the radio comes with a third wire for ground, disregard this wire.
After the interface has been programmed to the vehicle, refer to the manual provided Note:
with the radio for assigning the SWC buttons. Contact the radio manufacturer for more
information.
• For all other radios: Connect the 3.5mm jack from the
AXDIS-TY3 harness
into the jack from the
aftermarket radio designated for an external steering wheel control interface. Please refer to the
aftermarket radios manual if in doubt as to where the 3.5mm jack connects to.
With the key in the off position:
1.
Connect the , and the into the 16-pin harness with stripped leads AXDIS-TY3 harness
interface
.
2. Connect the
backup camera harness
to the wiring harness in the vehicle.
Attention!
Do not connect the to the wiring harness in the vehicle just yetAXDIS-TY3 harness .
Attention!
If retaining steering wheel controls, ensure that the jack/wire is connected to
the radio before proceeding. If this step is skipped, the interface will need to be reset for the
steering wheel controls to function.
