AXDIS-PO62
I N S TA L L A T I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2024 METRA ELECTRONICS CORPORATION REV. 5/31/24 INSTAXDIS-PO62
ATTENTION: With the key out of the ignition,
disconnect the negative battery terminal before
installing this product. Ensure that all installation
connections, especially the air bag indicator lights, are
plugged in before reconnecting the battery or cycling
the ignition to test this product.
NOTE: Refer also to the instructions included with the
aftermarket accessory before installing this device.
TOOLS REQUIRED
• Wire cutter • Crimp tool and connectors
(example: butt-connectors, bell caps, etc.) or
• Solder gun, solder, heat shrink
• Tape • Zip ties
TABLE OF CONTENTS
Connections: BLK-AXDIS-PO62 Harness 2 ...............
SWC Chart (Steering Wheel Control)....................3
Installating the AXDIS-PO62 Interface 4 ................
Installing the Fiber Optic Cable.............................5
Porsche (with MOST 25 amplifier)
Data Interface with SWC 2009-2012*
*PCM3.0 Radio
INTERFACE FEATURES
INTERFACE COMPONENTS

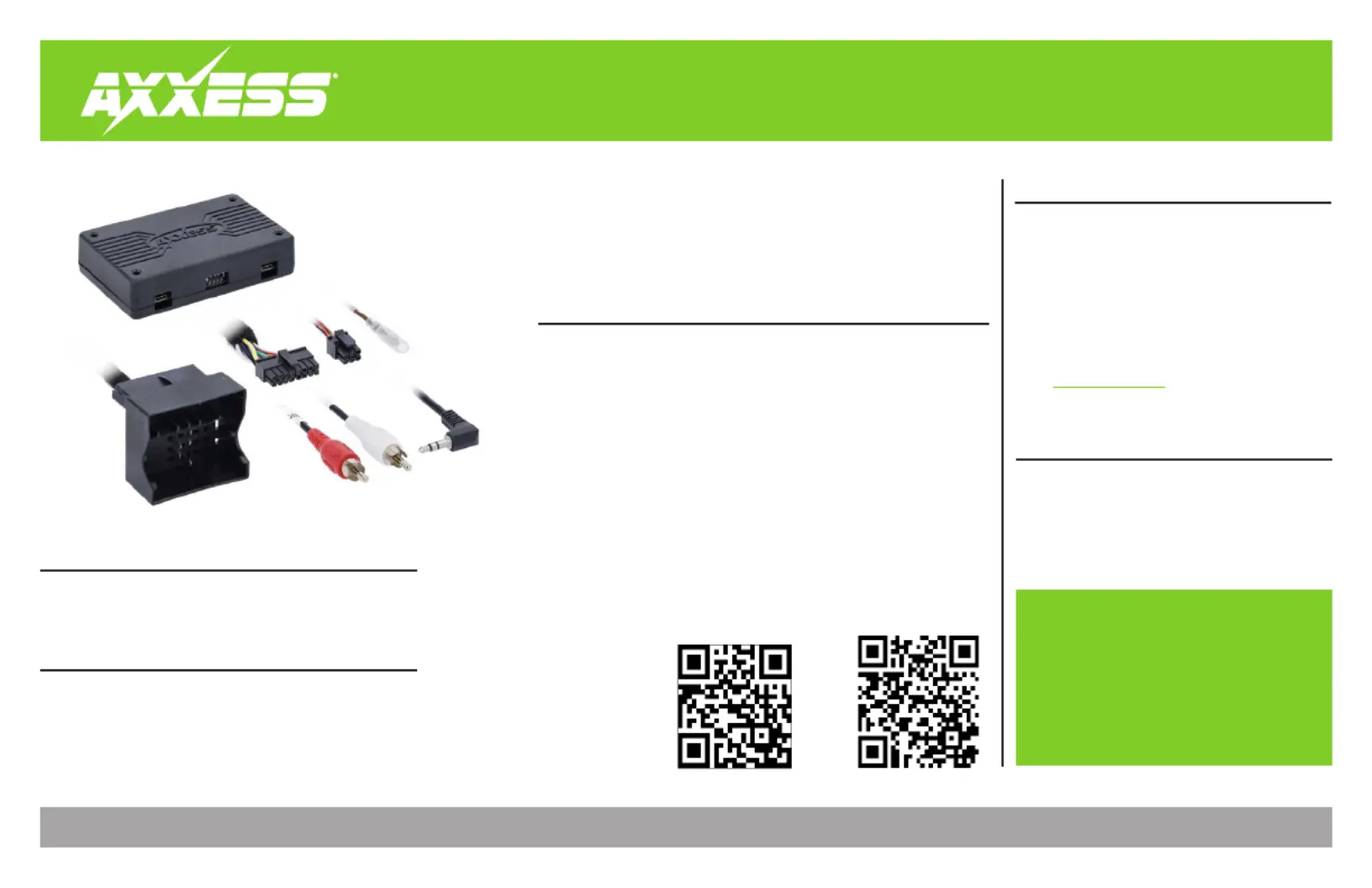

• AXDIS-PO62 interface • AXDIS-PO62 harness
APPLICATIONS
Product Info
Porsche
911 Coupe (997) 2009-2012 ................................................
Boxster (987) 2009-2011 .....................................................
Caymen (987) 2009-2012 ...................................................
Visit for more detailed information AxxessInterfaces.com
about the product and up-to-date vehicle specific applications
• Designed for MOST*25 amplified systems
• Provides accessory power (12-volt)
• Retains audio controls on the steering wheel controls
• Easy to set Dipswitches for SWC configuration
• Provides NAV outputs (parking brake, reverse, and speed sense)
• Micro B USB updatable
* Media Oriented System Transport
www.MetraOnline.com
MetraOnline.com may be used
to assist with dash assembly
instructions. Simply enter
your Year, Make, Model
vehicle into the vehicle fit
guide and look for the Dash
Kit Installation Instructions.
2
CONNECTIONS: BLK-AXDIS-PO62 HARNESS
Front
Rear AUX-IN
Rear View
SWC
Aftermarket Radio
(Your radio’s features may vary)
Black - Ground wire
Yellow - Battery wire +
Red - Accessory power
Green - Reverse
Orange - Illumination
Blue - AMP Turn On
Purple - E-Brake
Pink - VSS
6-Pin
IR
16-Pin
VEHICLE CONNECTOR
RADIO CONNECTIONS
BLK-AXDIS-PO62
Brown - Wired SWC
“Kenwood/JVC”
Plastic Housing
Installing the Fiber Optic Cable:
1. Remove the for the factory RadioOE Fiber Optic Cable
Factory Fiber
Optic Connector
Refer to
Installing the Fiber Optic Cable
section on the next page
3
REV. 5/31/24 INSTAXDIS-PO62
SWC CHART
Metra MOST Interface Dipswitch Table
MFR System
DIP Switch Sengs
Addional
Comments
1 2 3 4 5
RESERVED NA OFF OFF OFF OFF OFF SW UPDATE MODE
ALPINE IR DATA OFF OFF OFF OFFON
AXXERA 2 IR DATA OFF OFF OFFON ON
CLARION 1 IR DATA OFF OFF OFFON ON
CLARION 2 IR DATA OFF OFFON ON ON
DUAL Analog OFF OFF OFFON ON
GRUNDIG IR DATA OFF OFF OFFON ON
JENSEN Analog OFF OFF OFF ON ON
JVC IR DATA OFF OFF OFF OFF BROWN WIRED SWCON
KENWOOD 1 IR DATA OFF OFF OFF OFF BROWN WIRED SWCON
KENWOOD 2 IR DATA OFF OFF OFF BROWN WIRED SWCON ON
LG 1 Analog OFF OFF OFFON ON
LG 2 IR DATA OFF OFF OFFON ON
PHILIPS 1 IR DATA OFF OFFON ON ON
PHILIPS 2 IR DATA OFF OFF OFFON ON
PIONEER 1 Analog OFF OFF OFF MALE 3.5MM JACKON ON
PIONEER 2 Analog OFF OFF OFF OFF MALE 3.5MM JACKON
SONY Analog OFF OFF OFF MALE 3.5MM JACKON ON
VALOR IR DATA OFF OFF OFFON ON
SPARE IR DATA OFF OFFON ON ON
SPARE Analog OFF OFFON ON ON
SPARE Analog OFFON ON ON ON
Press dipswitch in to the down position to turn ON.
Pioneer 1 example shown in the diagram.
Applicable Radio: PCM3.0
