Seite 1/32

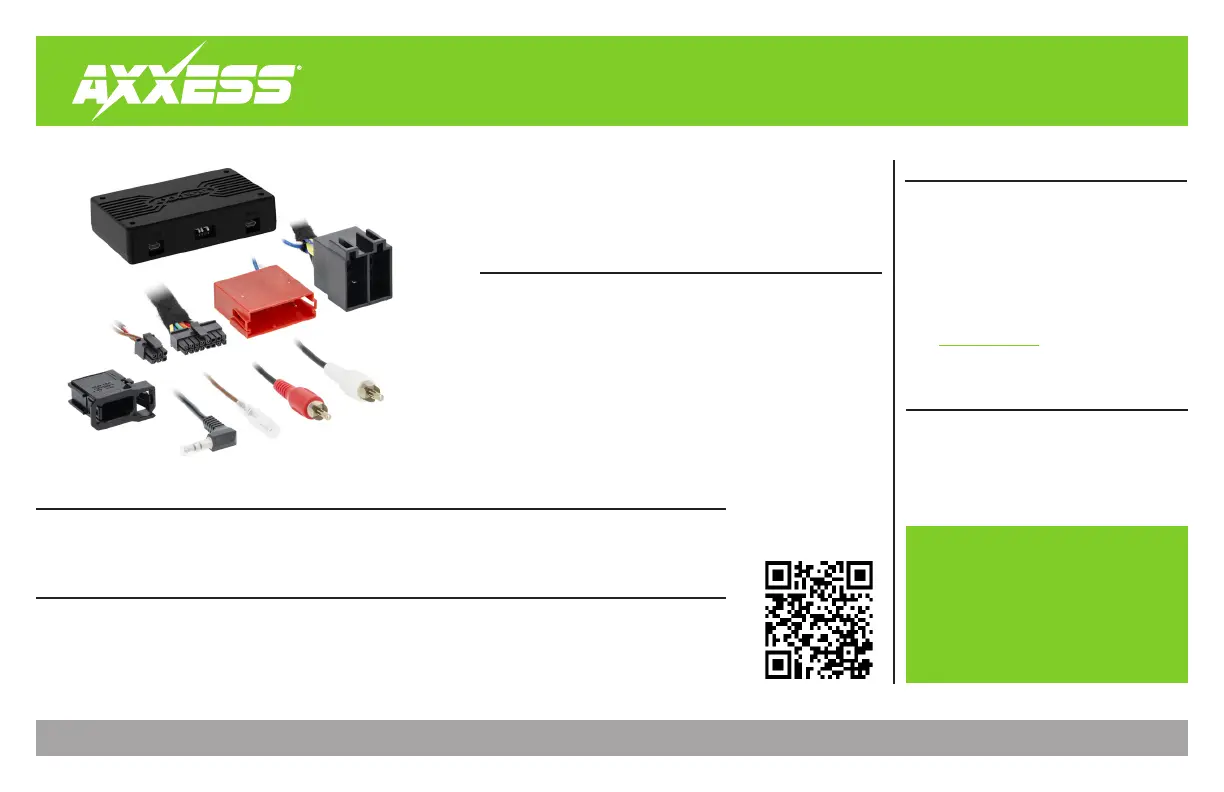

AXDIS-PO52
I N S TA L L A T I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2024 METRA ELECTRONICS CORPORATION REV. 7/12/24 INSTAXDIS-PO52
ATTENTION: With the key out of the ignition,
disconnect the negative battery terminal before
installing this product. Ensure that all installation
connections, especially the air bag indicator lights, are
plugged in before reconnecting the battery or cycling
the ignition to test this product.
NOTE: Refer also to the instructions included with the
aftermarket accessory before installing this device.
TOOLS REQUIRED
• Wire cutter • Crimp tool and connectors
(example: butt-connectors, bell caps, etc.) or
• Solder gun, solder, heat shrink
• Tape • Zip ties
TABLE OF CONTENTS
Connections: BLK-AXDIS-PO52 Harness 2 ...............
Applicable Radios....................................................3
SWC Chart (Steering Wheel Control)....................4
Installing the AXDIS-PO52 Interface 5 ....................
Installing the Fiber Optic Cable.........................5-6
Porsche (with MOST 25 amplifier)
Data Interface with SWC 2004-2009*
INTERFACE FEATURES
INTERFACE COMPONENTS
• AXDIS-PO52 interface • AXDIS-PO52 harness
APPLICATIONS
Product Info
US Applications: Porsche
Cayman (987C) 2005-2008 .......................................
911 (997 Gen2) 2005-2008 .........................................
Boxster (987.1) 2005-2008 ........................................
World Applications: Porsche
Cayman (987C) 2005-2009 .......................................
911 (997 Gen2) 2004-2008 ........................................
Boxster (987.1) 2004-2008 .......................................
Visit for more detailed information AxxessInterfaces.com
about the product and up-to-date vehicle specific applications
* PCM 2.0 and PCM 2.1
Designed for MOST*25 amplified systems
Provides accessory power (12-volt)
Retains audio controls on the steering wheel controls
Easy to set Dipswitches for SWC configuration
Provides NAV outputs (parking brake, reverse, and speed sense)
Micro B USB updatable
Note: Backup Camera not retained if equipped.
* Media Oriented System Transport
2
CONNECTIONS: BLK-AXDIS-PO52 HARNESS
Front
Rear
u
AUX-IN
Rear View
SWC
Aftermarket Radio
(Your radio’s features may vary)
Black - Ground wire
Yellow - Battery wire
Red - Accessory power
Green - Reverse
Orange - Illumination
Blue - AMP Turn On
Purple - E-Brake
Pink - VSS
6-Pin
16-Pin
Vehicle Connector
Radio Connections
BLK-AXDIS-PO52
Brown - Wired SWC
“Kenwood/JVC”
3
REV. 7/12/24 INSTAXDIS-PO52
APPLICABLE RADIOS
CDR24/PCM2.0/PCM2.1
