Seite 1/8

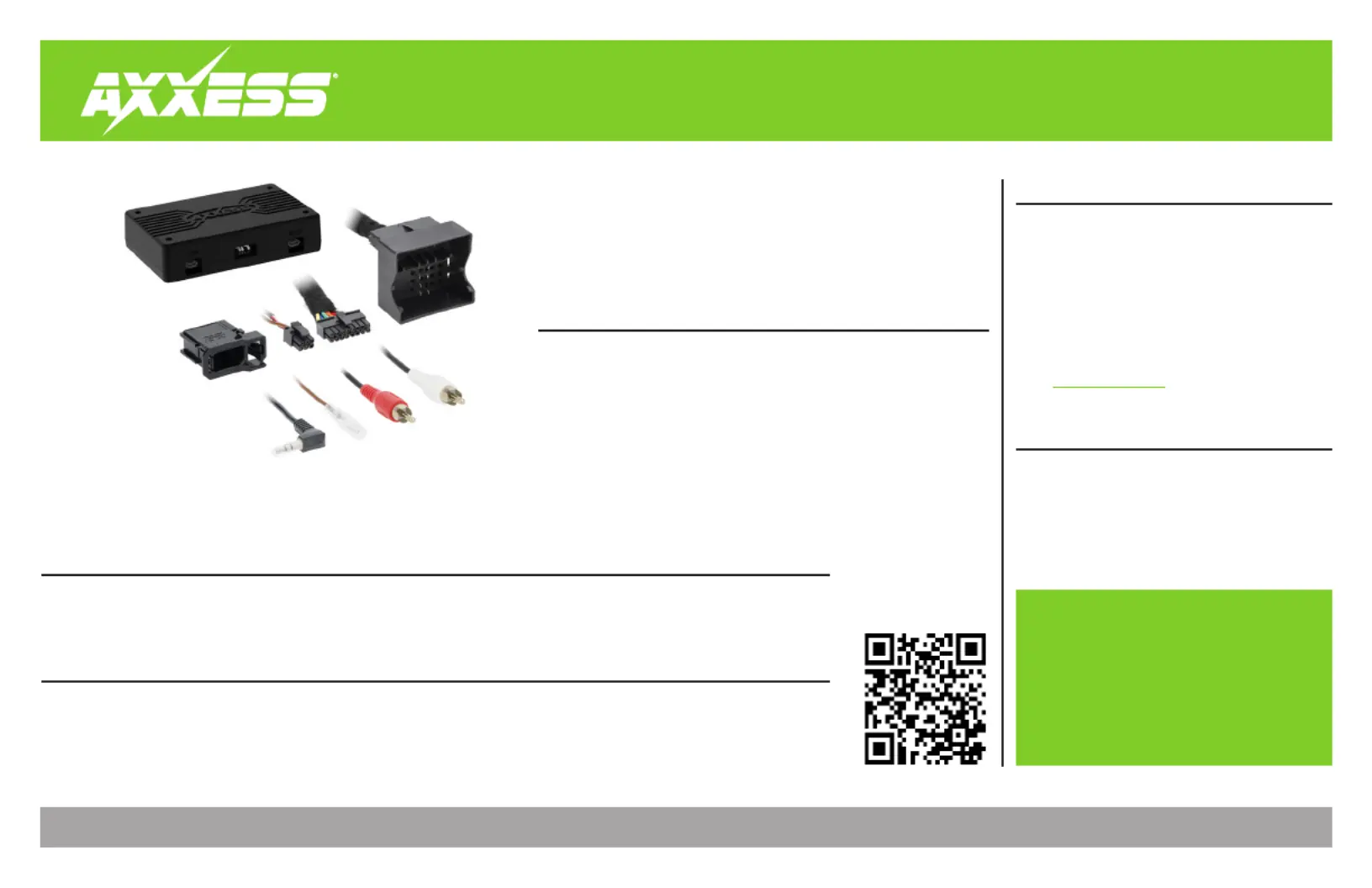

AXDIS-PO42
I N S TA L L A T I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2024 METRA ELECTRONICS CORPORATION REV. 4/10/24 INSTAXDIS-PO42
ATTENTION: With the key out of the ignition,
disconnect the negative battery terminal before
installing this product. Ensure that all installation
connections, especially the air bag indicator lights, are
plugged in before reconnecting the battery or cycling
the ignition to test this product.
NOTE: Refer also to the instructions included with the
aftermarket accessory before installing this device.
Porsche Cayenne/911 (with MOST 25 amplifier)
Data Interface with SWC 2007-2010*
INTERFACE COMPONENTS
• AXDIS-PO42 harness
• AXDIS-PO42 interface
* PCM 3.0 touchscreen NAV
TOOLS REQUIRED
• Wire cutter
• Crimp tool and connectors
(example: butt-connectors, bell caps, etc.) or
• Solder gun, solder, heat shrink
• Tape • Zip ties
TABLE OF CONTENTS
Connections: BLK-AXDIS-PO42 Harness 2 ...............
Applicable Radio 3 ....................................................
SWC Chart (Steering Wheel Control) 3 ...................
Installing the AXDIS-PO42 interface 4 ....................
Installing the Fiber Optic Cable.........................4-5
Product Info
APPLICATIONS
US Applications: Porsche
Cayenne (9PA) 2008-2010 ........................................
World Applications: Porsche
Cayenne (9PA) 2007-2010 .........................................
Visit for more detailed information AxxessInterfaces.com
about the product and up-to-date vehicle specific applications
INTERFACE FEATURES
• Designed for MOST* 25 amplified systems
• Provides accessory power (12-volt)
• Retains audio controls on the steering wheel controls
• Easy to set Dipswitches for SWC configuration
• Provides NAV outputs (parking brake, reverse, and speed sense)
• Micro B USB updatable
Note: Backup Camera not retained if equipped.
* Media Oriented System Transport
2
CONNECTIONS: BLK-AXDIS-PO42 HARNESS
Front
Rear
u
AUX-IN
Rear View
SWC
Aftermarket Radio
(Your radio’s features may vary)
Black - Ground wire
Yellow - Battery wire
Red - Accessory power
Green - Reverse
Orange - Illumination
Blue - AMP Turn On
Purple - E-Brake
Pink - VSS
6-Pin
16-Pin
Vehicle Connector
Radio Connections
BLK-AXDIS-PO42
Brown - Wired SWC
“Kenwood/JVC”
3
REV. 4/10/24 INSTAXDIS-PO42
SWC CHARTAPPLICABLE RADIO
Radio that is applicable with AXDIS-PO42: PCM3.0 Metra MOST Interface Dipswitch Table
MFR System
DIP Switch Sengs
Addional
Comments
1 2 3 4 5
RESERVED NA OFF OFF OFF OFF OFF SW UPDATE MODE
ALPINE IR DATA OFF OFF OFF OFFON
AXXERA 2 IR DATA OFF OFF OFFON ON
CLARION 1 IR DATA OFF OFF OFFON ON
CLARION 2 IR DATA OFF OFFON ON ON
DUAL Analog OFF OFF OFFON ON
GRUNDIG IR DATA OFF OFF OFFON ON
JENSEN Analog OFF OFF OFF ON ON
JVC IR DATA OFF OFF OFF OFF BROWN WIRED SWCON
KENWOOD 1 IR DATA OFF OFF OFF OFF BROWN WIRED SWCON
KENWOOD 2 IR DATA OFF OFF OFF BROWN WIRED SWCON ON
LG 1 Analog OFF OFF OFFON ON
LG 2 IR DATA OFF OFF OFFON ON
PHILIPS 1 IR DATA OFF OFFON ON ON
PHILIPS 2 IR DATA OFF OFF OFFON ON
PIONEER 1 Analog OFF OFF OFF MALE 3.5MM JACKON ON
PIONEER 2 Analog OFF OFF OFF OFF MALE 3.5MM JACKON
SONY Analog OFF OFF OFF MALE 3.5MM JACKON ON
VALOR IR DATA OFF OFF OFFON ON
SPARE IR DATA OFF OFFON ON ON
SPARE Analog OFF OFFON ON ON
SPARE Analog OFFON ON ON ON
Press dipswitch in to the down position to turn ON.
Pioneer 1 example shown in the diagram.
