Seite 1/8

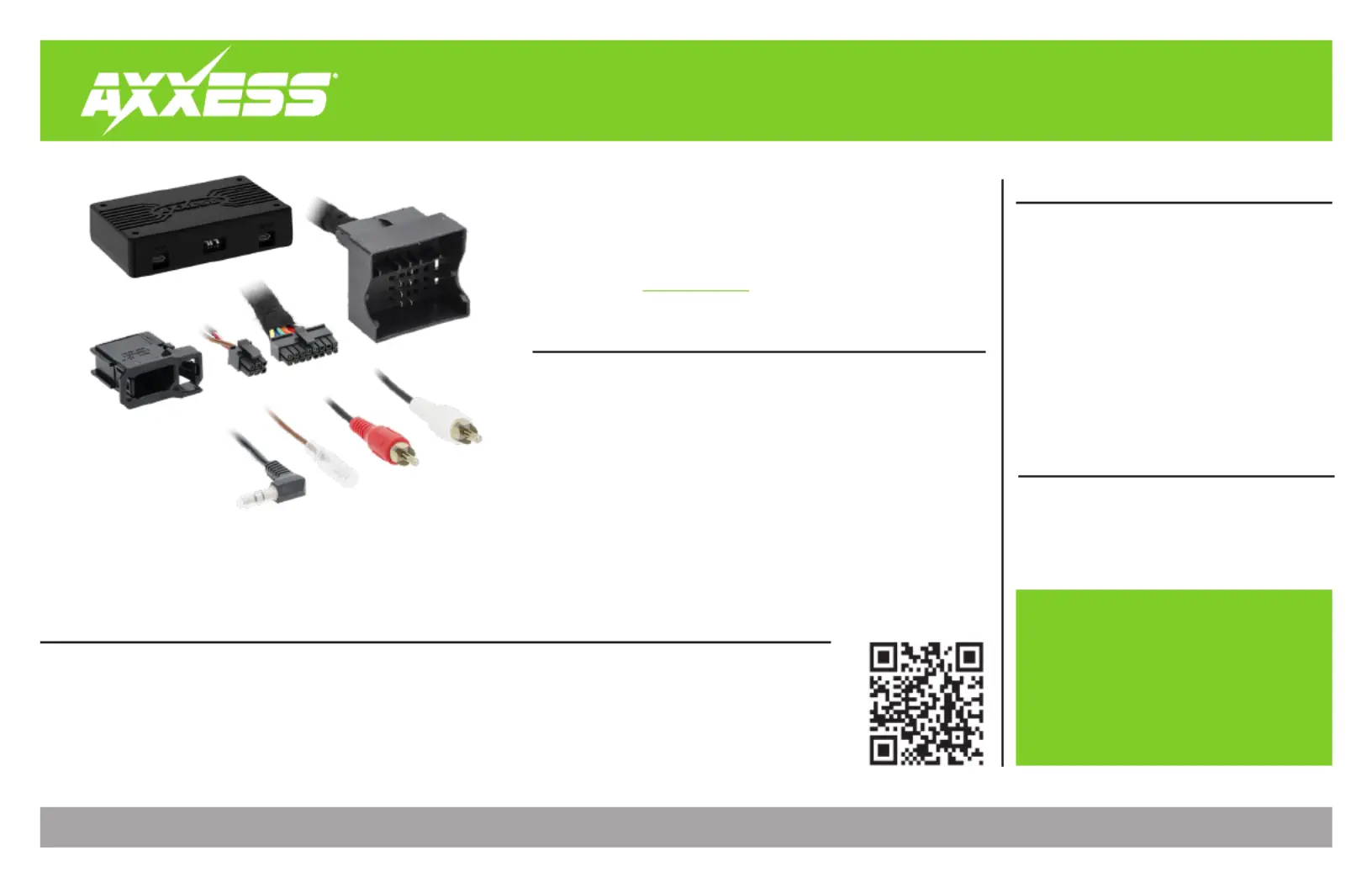

AXDIS-MB82
I N S TA L L A T I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2024 METRA ELECTRONICS CORPORATION REV. 4/9/24 INSTAXDIS-MB82
ATTENTION: With the key out of the ignition,
disconnect the negative battery terminal before
installing this product. Ensure that all installation
connections, especially the air bag indicator lights, are
plugged in before reconnecting the battery or cycling
the ignition to test this product.
NOTE: Refer also to the instructions included with the
aftermarket accessory before installing this device.
• AXDIS-MB82 interface
• AXDIS-MB82 harness
• Steering wheel control harness
TOOLS REQUIRED
• Wire cutter • Crimp tool and Connectors
(example: butt-connectors, bell caps, etc.) or
• Solder gun, solder, heat shrink
• Tape • Zip-ties
Mercedes (with MOST 25 amplifier)
Data Interface with SWC 2002-2013
Product Info
INTERFACE COMPONENTS
INTERFACE FEATURES
TABLE OF CONTENTS
Applications 2 ......................................................
Connections: BLK-AXDIS-MB82 Harness 3 .........
Applicable Radios 4 ............................................
Steering Wheel Control Chart (SWC) 5 ..............
Installing the BLK-AXDIS-MB82 Interface 6 ......
Installing the Fiber Optic Cable........................7
Visit for more detailed information AxxessInterfaces.com
about the product and up-to-date vehicle specific applications
Designed for MOST*25 amplified systems
Provides accessory power (12-volt)
Retains audio controls on the steering wheel controls
Easy to set Dipswitches for SWC configuration
Provides NAV outputs (parking brake, reverse, and speed sense)
Micro B USB updatable
Note: Backup Camera not retained if equipped.
*Media Oriented System Transport
2
APPLICATIONS
APPLICATIONS
US Applications: Mercedes
C CLASS (W203) 2004-2007 .......................................................................
CLK (W209) 2005-2009 ..............................................................................
E Class (W211) 2003-2008 .........................................................................
GL (X164) 2007-2012 ..................................................................................
ML (W164) 2006-2011 ................................................................................
R CLASS (W254) 2006-2011 ........................................................................
SL55-AMG (R230) 2005-2008 ...................................................................
SL63-AMG (R230) 2009-2012 .....................................................................
SLK (R171) 2009-2011 ..................................................................................
World Applications: Mercedes
A CLASS (W169) 2004-2012 ........................................................................
B CLASS (T245) 2005-2011 .........................................................................
C CLASS (W203) 2004-2007 .......................................................................
CLK (W209) 2004-2009 .............................................................................
E Class (W211) 2002-2009 ..........................................................................
GL (X164) 2006-2010 ..................................................................................
ML (W164) 2005-2011 .................................................................................
R CLASS (W254) 2006-2013 ........................................................................
SL55-AMG (R230) 2002-2008 ....................................................................
SL63-AMG (R230) 2008-2012 .....................................................................
SLK (R171) 2008-2011 .................................................................................
Without OEM Navigation, Audio 20 Radio
3
REV. 4/9/24 INSTAXDIS-MB82
Front
Rear
u
AUX-IN
Rear View
SWC
Aftermarket Radio
(Your radio’s features may vary)
Black - Ground wire
Yellow - Battery wire
Red - Accessory power
Green - Reverse
Orange - Illumination
Blue - AMP Turn On
Purple - E-Brake
Pink - VSS
6-Pin
16-Pin
Vehicle Connector
Radio Connections
BLK-AXDIS-MB82
Brown - Wired SWC
“Kenwood/JVC”
CONNECTIONS: BLK-AXDIS-MB82 HARNESS
